ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201 | Excitation Processor Interface

Description

• Model: ABB UNS0007A-P V1
• Part Number: HIEE305098R0001 (Board) / HIEE410730P201 (Assembly)
• Brand: ABB (Switzerland)
• Series: Unitrol 5000 / Unitrol 6000 / Megadrive-LCI
• Core Function: Control and Interface Board (COB) for large-scale excitation systems
• Product Type: Processor Interface / Application Controller
• Key Specs: 24 V DC Power Multi-bus Connectivity High-Density Logic

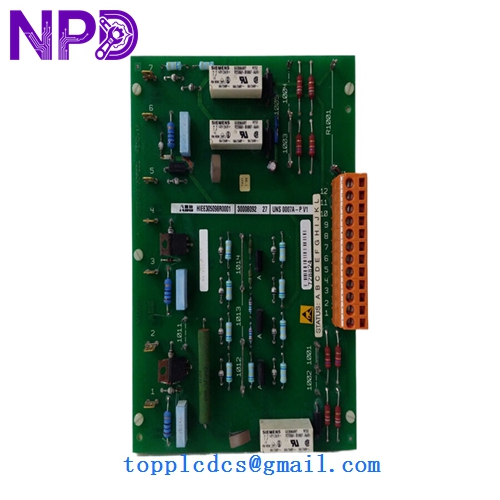

ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201

ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201

ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201

Key Technical Specifications

Application Scenarios & Pain Points

The UNS0007A-P V1 is a foundational interface board used in the Unitrol 5000 and early 6000 excitation systems. Its job is to manage the complex data exchange between the central CPU and the power conversion hardware. The biggest pain point with this board is Bus Communication Failure. Because it sits on a parallel bus, any physical degradation of the gold-plated pins or a failing logic gate can cause “Bus Error” trips that shutdown the entire generator’s excitation system. Since these are often found in critical infrastructure like nuclear or large-scale hydro plants, a failure here means an immediate grid-stability event.

Typical Application Scenarios:

1. Large Hydro/Thermal Excitation

   Serving as the primary interface for Unitrol 5000 systems managing 100MW to 1000MW generators.

2. LCI Static Starting

   Controlling the high-speed switching logic required to start gas turbines in Peaking Power Plants.

3. Synchronous Motor Control

   Managing the field excitation for massive motors used in air separation or water pumping stations.

Case Study: The “Silent” Bus Error

Background: A 300MW coal-fired unit experienced intermittent excitation trips labeled as “System Bus Timeout.”

Problem: The onsite team checked the CPU and power modules, but everything seemed normal. However, every time the cabinet temperature reached 45°C, the system tripped.

Solution: We provided a tested UNS0007A-P V1 HIEE305098R0001.

Result: The old board was found to have a microscopic crack in one of the bus-driver ICs that expanded with heat. After swapping with our verified board, the “Bus Timeout” errors vanished, and the unit ran through the entire peak summer season without a trip.

Compatible Replacement Models

Engineer’s Note: The part number HIEE305098R0001 is the bare board, while HIEE410730P201 often refers to the assembly with specific components. Always verify the “V1” vs “V2” status on your existing module—V1 is specific to certain older backplane timing protocols.

Troubleshooting Quick Reference

❗ Critical Warning: Backplane Connector

The UNS0007A-P uses a high-density 96-pin DIN connector. In my experience, 50% of “dead” boards are actually just victims of poor contact. Before ordering a replacement, use a high-quality electronic contact cleaner and reseat the board. If you see any bent pins on the backplane, do not try to force the board in, or you will short out the 24V rail and kill the CPU.

SOP Quality & Testing Protocol:

Each UNS0007A-P V1 is subjected to a Parallel Bus Stress Test in our ABB Unitrol 5000 test frame. We verify all address and data lines for timing accuracy and perform a 24-hour heat-soak at 50°C to ensure thermal stability. A full Test Certificate including the hardware revision and inspection logs is provided. We can provide a video of the “Healthy” status LEDs and bus activity upon request.
