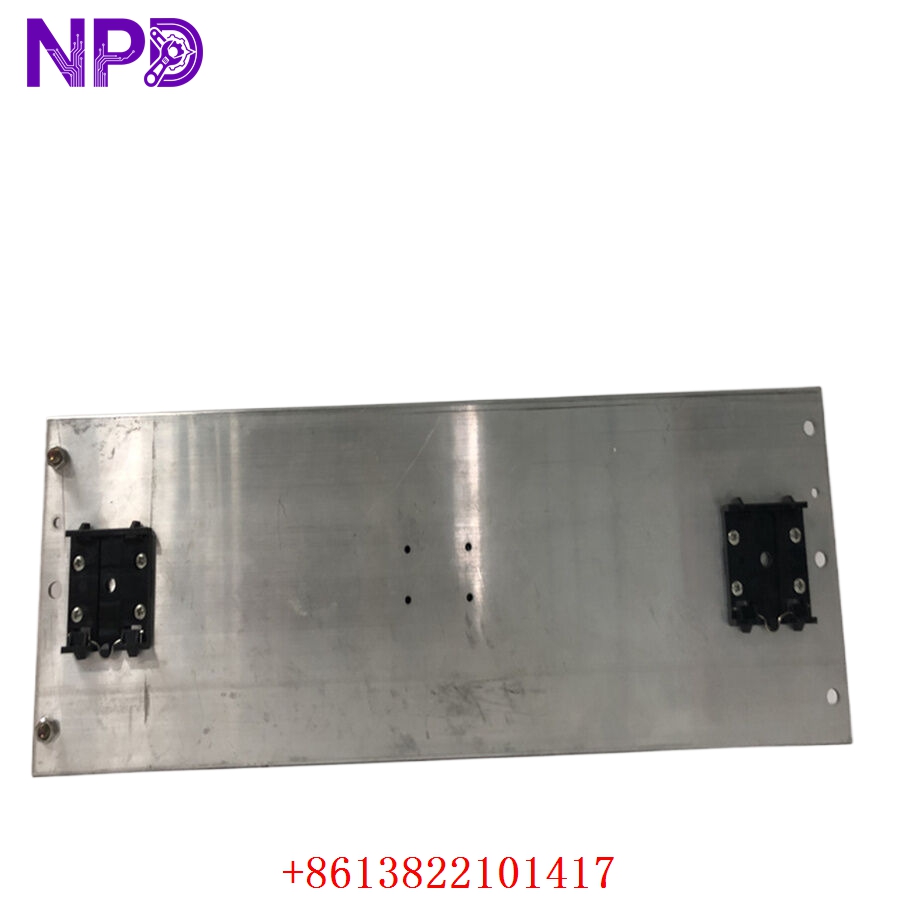

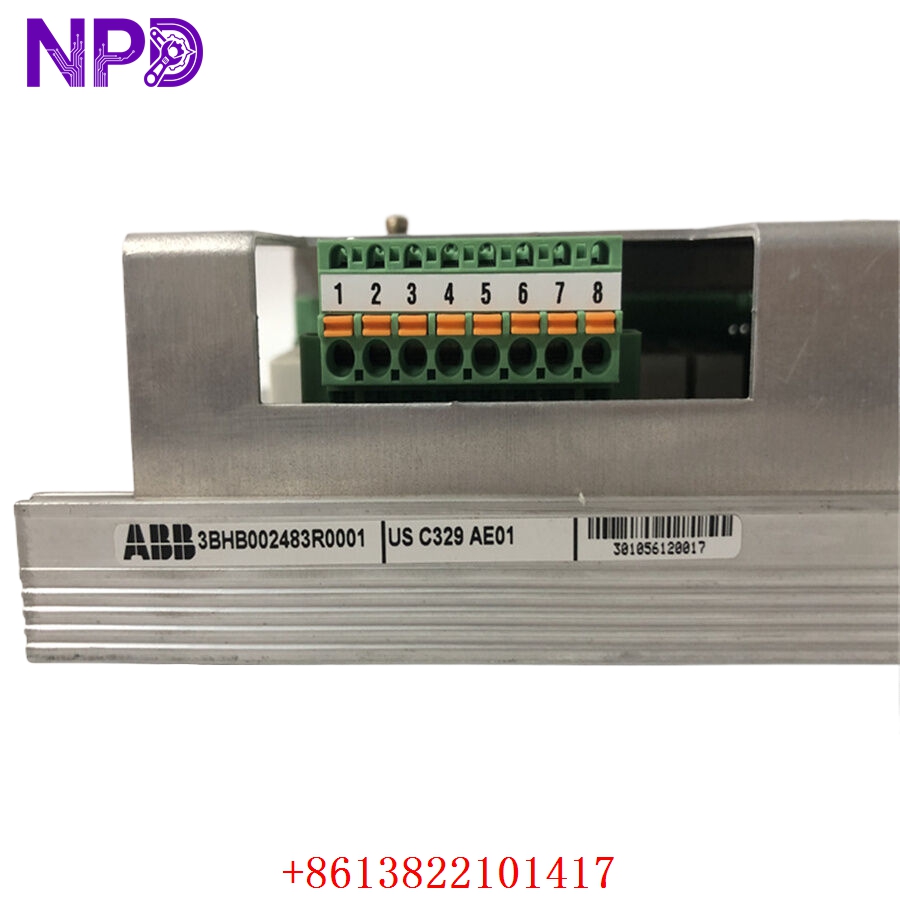

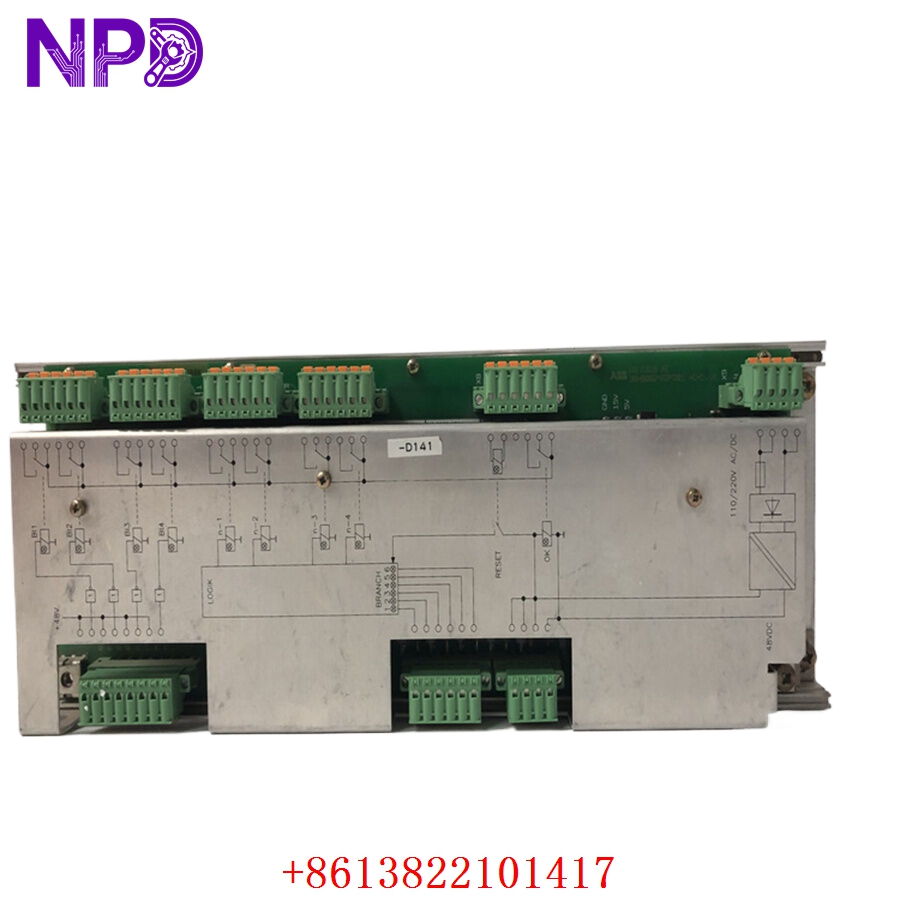

ABB USC329AE01 HMI Control Module

Description

• Model: ABB USC329AE01 (3BHB002483R0001)
• Brand: ABB
• Series: ABB Control / Interface Panel Series (DCS Operator Interface)
• Core Function: Provides operator control, system monitoring, and communication interface in ABB automation systems
• Product Type: Control Interface Panel / HMI Module
• Key Specs: 24 V DC or AC/DC input Multi-protocol support (Modbus / Profibus / RS-485 / Ethernet) Industrial-grade CPU interface

• Power Supply: 24 V DC / 110–240 V AC/DC (variant dependent)
• Processor Architecture: Embedded industrial control CPU (32-bit class in most revisions)
• Display Interface: Integrated operator panel / HMI display (model-dependent)
• Communication Protocols: Modbus RTU, Profibus DP, RS-485, RS-232, Ethernet
• I/O Capability: Digital + analog interface support (system dependent configuration)
• Mounting Type: Panel-mounted / rack-integrated control interface
• Operating Temperature: -20 °C to +60 °C typical industrial range
• Storage Temperature: -40 °C to +70 °C
• Power Consumption: ~10–15 W (typical configuration range)
• Protection Class: IP20 (cabinet installation required)
• Diagnostics: Built-in self-diagnostics and alarm status monitoring
• Programming Support: ABB engineering tools (system-dependent)
• Material: Industrial-grade metal enclosure (aluminum/steel structure)
• Weight: ~0.5–4 kg depending on configuration variant

GE USC329AE01

GE USC329AE01

GE USC329AE01

GE USC329AE01

Application Scenarios & Pain Points

Let me be direct here—USC329AE01 is one of those ABB interface modules you only notice when something goes wrong.

It usually sits quietly in:

• DCS cabinets
• Operator panels
• Process control racks

Until one day the screen goes blank, communication drops, or the system stops accepting operator commands.

And then the real headache starts.

Why?

Because this isn’t just a “display unit.” It sits in the middle of:

• controller logic feedback
• operator command paths
• alarm handling
• field device communication

So when it fails, you don’t just lose a screen—you lose visibility and sometimes control authority.

Typical Application Scenarios

1. Power Plants – Turbine Control Interface
   Used for monitoring turbine parameters, alarms, and operational commands.
2. Petrochemical Plants – DCS Operator Panels
   Provides real-time process visualization for reactors, distillation columns, and pumps.
3. Water Treatment Systems – SCADA Interface Layer
   Allows operators to adjust flow, dosing, and filtration parameters.
4. Manufacturing Lines – Central Control HMI
   Manages production line status, alarms, and machine coordination.
5. Industrial Energy Systems – Substation Control Interface
   Used for monitoring switching states and protection signals.

Real Project Example – “System Was Fine… Until the Panel Stopped Responding”

A chemical plant in Eastern Europe reported a sudden loss of operator control on one DCS station.

What they observed:

• PLC still running normally
• Field instruments still transmitting
• But operator panel (USC329AE01) stopped responding completely

Initial assumption:

• network switch failure
• DCS controller fault
• corrupted control logic

But after checking:

• Profibus network was stable
• controller diagnostics were clean
• 24 V supply was present

The actual issue?

Internal interface failure inside the USC329AE01 module causing:

• partial CPU lock
• frozen HMI refresh cycle
• blocked operator input queue

Once replaced with a tested spare unit:

• system recovered immediately
• alarms reappeared normally
• operator control restored without logic changes

The takeaway was simple but painful:
in legacy ABB DCS systems, the interface panel can fail independently of the controller, and the system may still appear “half alive.”

That’s the most dangerous condition—because everything looks normal until you try to operate it.

Compatible Replacement Models

Practical engineering note:

If your system is still running classic ABB DCS architecture, replacing this module with anything outside the ABB ecosystem usually turns into a full integration project—not a spare part swap.
