Description

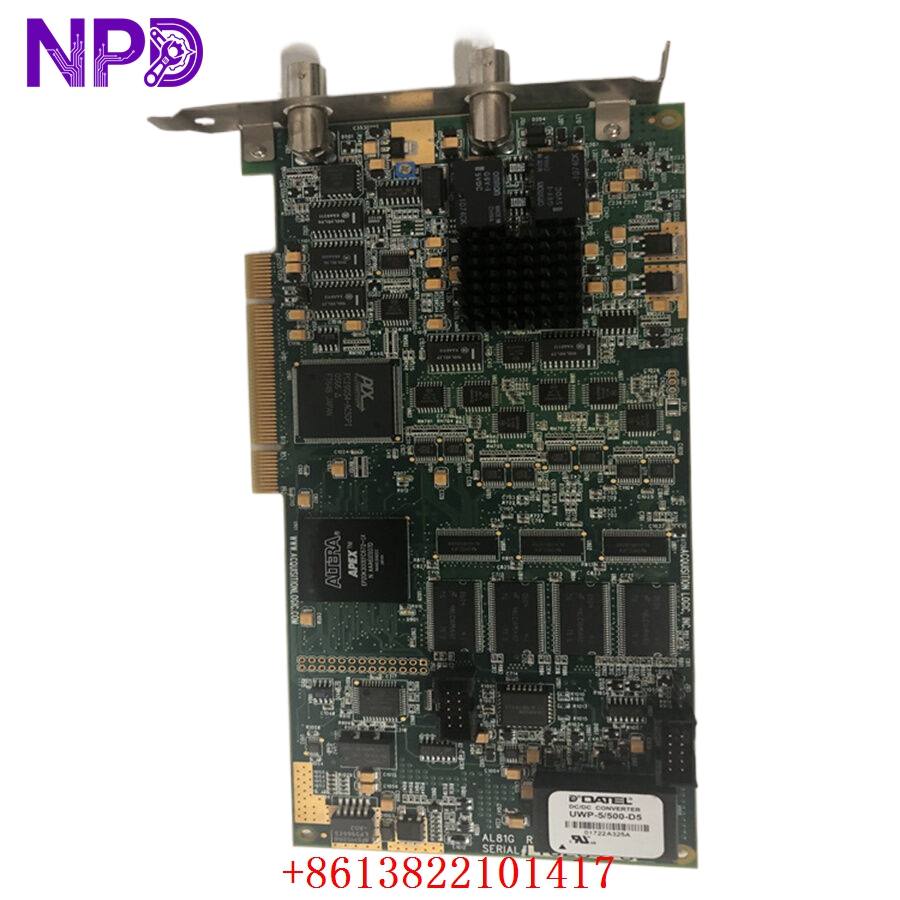

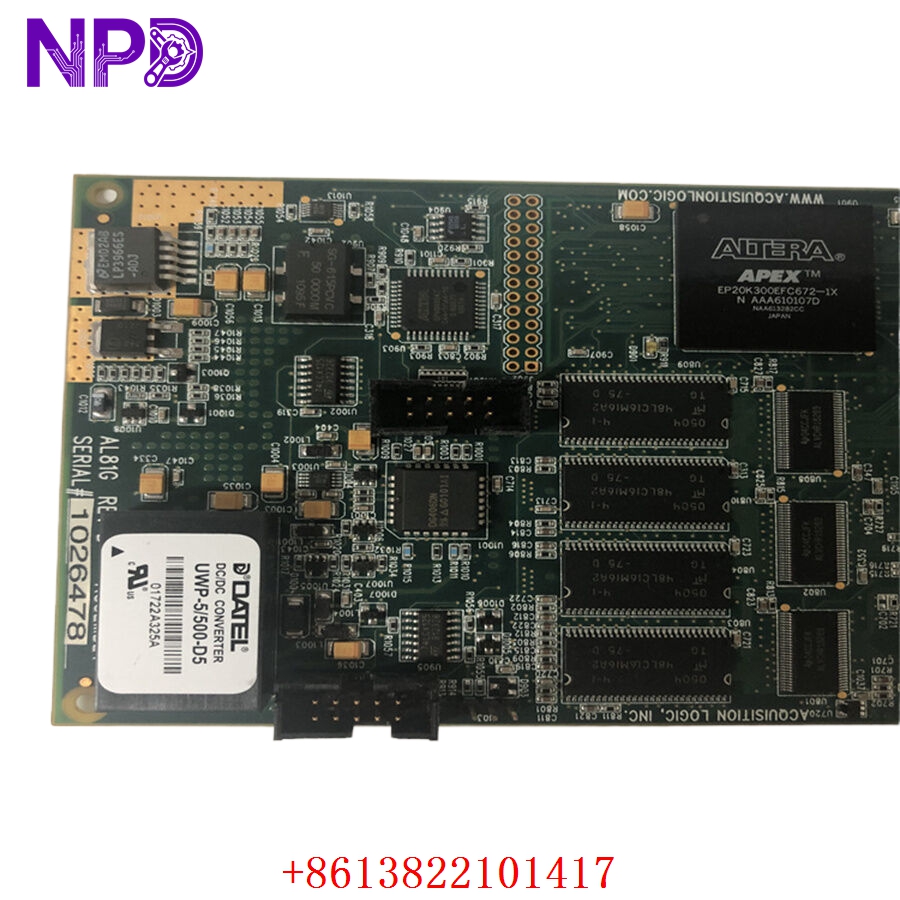

- Model: ACQUISITIONLOGIC AL81G
- Brand: AcquisitionLogic
- Series: AL Industrial Logic Control Series
- Core Function: Industrial logic processing and field I/O coordination
- Product Type: Controller / Logic Processing Module
- Key Specs: Modular I/O support Serial communication Industrial DIN mounting
- Processor Type: Embedded industrial logic processor
- Control Function: Sequential logic and field signal processing
- Power Supply Requirement: 24 V DC
- Digital I/O Support: Modular expansion architecture
- Communication Ports: RS232 / RS485
- Communication Protocols: Modbus RTU and proprietary serial protocols
- Mounting Method: DIN rail installation
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -20 °C to +70 °C
- Isolation Type: Signal and communication isolation
- Cabinet Integration: Compatible with legacy control panels
- Diagnostic Indicators: Front-panel LED status indicators
- Approximate Weight: 0.5 kg
- Application Environment: Industrial automation and process control systems
Application Scenarios & Engineering Pain Points
Legacy controllers like the AL81G usually stay hidden inside cabinets for years without anyone touching them. Then one day… production stops, an alarm appears, and suddenly everyone remembers the module exists.
That’s the reality in older industrial plants.
A lot of these systems were installed 15–20 years ago and still run critical processes:
- Conveyor sequencing
- Packaging systems
- Utility process skids
- Burner management auxiliaries
- Batch transfer systems
The challenge today is not programming them.
The challenge is keeping them alive while the plant slowly modernizes around them.
And honestly, that’s where most integration headaches begin.
Typical application scenarios:
- Water Treatment Facilities – Pump Logic Sequencing
Controls pump start/stop interlocks and alarm handling in remote pumping stations. - Material Handling Systems – Conveyor Coordination
Used for motor permissives, jam detection, and transfer sequencing. - Packaging Lines – Legacy Machine Control
Interfaces with sensors, relay outputs, and pneumatic actuators. - Utility Systems – Boiler and HVAC Auxiliary Control
Handles discrete field logic and equipment permissive control. - Mining & Cement Plants – Remote Control Cabinets
Installed in decentralized field cabinets where simple deterministic logic is required.
Real Project Example – “The Machine Nobody Wanted to Upgrade”
A food packaging facility had an old pallet conveyor system controlled by an AL81G module installed sometime around 2004.
Nobody wanted to touch it because:
- Original project documentation was incomplete
- The OEM no longer supported the machine
- Production could not tolerate extended downtime
Then intermittent failures started appearing:
- Conveyors stopping randomly
- Sensor states freezing
- Output relays responding late
- Operators resetting the cabinet several times per shift
