Description
The Bently Nevada 125720-01 is the internal circuit board component for the 3500/42M Proximitor Seismic Monitor. This module is a four-channel instrument that accepts input from proximity transducers and seismic transducers, conditions the signals to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms.
Product Parameters (Datasheet)
- Model Number: 125720-01
- Part Type: Main Circuit Board for 3500/42M Monitor
- Number of Channels: 4 (Independent)
- Input Signal Types: * Proximitor sensors (Radial vibration, Thrust position, Eccentricity)
- Seismic sensors (Velocity, Acceleration)
- Signal Conditioning: Programmable filters, integration, and peak-to-peak detection
- Power Consumption: 7.7 Watts (Typical)
- Operating Temperature: -30°C to +65°C (-22°F to +150°F)
- Accuracy: Within ±1% of full-scale range
- System Compatibility: Bently Nevada 3500 Series Rack
Country of Origin
This precision machinery protection component is engineered and manufactured by Bently Nevada (a Baker Hughes company) in the USA.

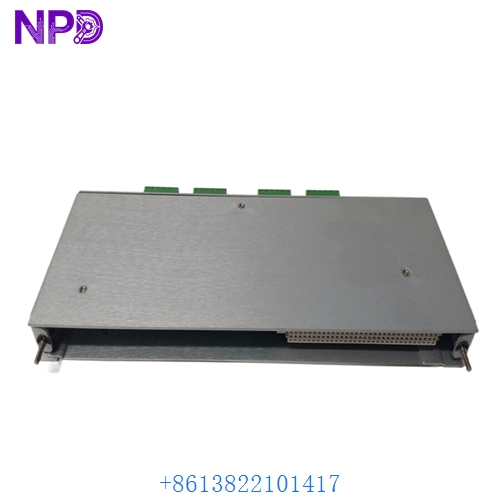

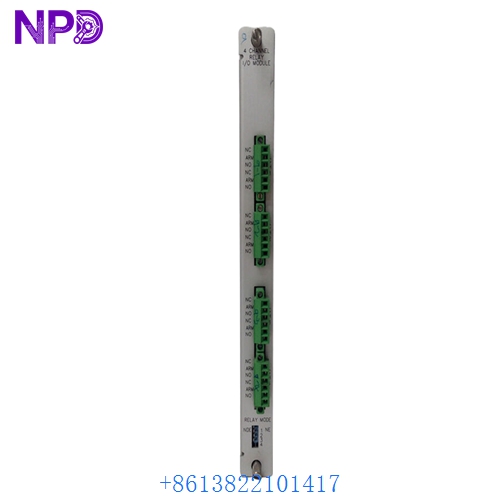

BENTLY 125720-01
BENTLY 125720-01
BENTLY 125720-01
Application Fields
The 3500/42M monitor is the industry standard for protecting critical rotating machinery:
- Steam & Gas Turbines: Monitoring radial vibration and axial thrust position for rotor stability.
- Centrifugal Compressors: Detecting shaft vibration and mechanical wear in high-pressure units.
- Large Pumps: Monitoring vibration levels to prevent cavitation or bearing failure.
- Electric Motors: Tracking rotor position and housing vibration in high-horsepower drives.
- Gearboxes: Utilizing seismic sensors to monitor casing vibration and gear mesh health.
Product Usage Instructions
- Rack Installation: Ensure the 3500 rack is powered down or use appropriate hot-swap procedures. Insert the 125720-01 board into the front of the rack, ensuring it mates securely with the I/O module in the rear.
- Transducer Connection: Connect the field wiring (Prox probes or Accelerometers) to the corresponding 3500/42M I/O module terminals.
- Configuration: Use the 3500 Rack Configuration Software to define the transducer type, scale factor, and alarm setpoints (Alert and Danger) for each channel.
- Verification: Perform a channel verification using a signal generator or a Bently Nevada TK-3 calibrator to ensure the monitor is accurately reporting field values.
- Status Check: Monitor the front-panel LEDs. A steady green “OK” LED indicates the module is functioning correctly and all transducers are within their linear range.
Product Technical Description
The 125720-01 board is the “brain” of the 42M module. It performs high-speed analog-to-digital conversion of the incoming raw transducer signals. Once digitized, the onboard digital signal processor (DSP) applies various algorithms to extract specific data points, such as Direct Vibration, Gap Voltage, or 1X Amplitude/Phase. The module supports “Prox/Seismic” pairing, where a single module can handle a mix of displacement and velocity sensors. This flexibility allows for a comprehensive machine protection strategy within a single rack slot. The 42M also features integrated self-diagnostics that continuously monitor the integrity of the transducer loop and the internal hardware.
Q&A (Common Questions)
Q: Can I replace a 125720-01 board while the machine is running? A: Yes, the 3500 series supports hot-swapping. However, ensure that the “Rack Key” is in the PROGRAM position or that you have bypassed the associated trip relays to prevent an accidental machine shutdown.
Q: What is the difference between the 3500/42 and the 3500/42M? A: The “M” stands for “Multimode.” The 42M features more advanced signal conditioning, better data resolution, and supports a wider range of sensor types compared to the older legacy 3500/42 version.
Q: Does this board include the I/O module? A: No, 125720-01 is the internal monitor board. The rear I/O module (e.g., 128229-01) must be purchased separately or as part of a complete 3500/42M assembly.
Q: Why is my “OK” LED flashing? A: A flashing “OK” LED typically indicates that the module is in “Configuration Mode” or that there is a minor fault that hasn’t yet triggered a complete module failure.
Similar Model Recommendations
- Bently Nevada 3500/40M (Proximitor Monitor)
- Bently Nevada 3500/45 (Position Monitor)
- Bently Nevada 3500/22M (Transient Data Interface)
- Bently Nevada 3300 XL 8mm (Compatible Proximity Transducer)
- Bently Nevada 3500/50M (Tachometer Module)
For technical assistance or to request a quote for the Bently Nevada 125720-01, please contact our technical sales team.
