Description

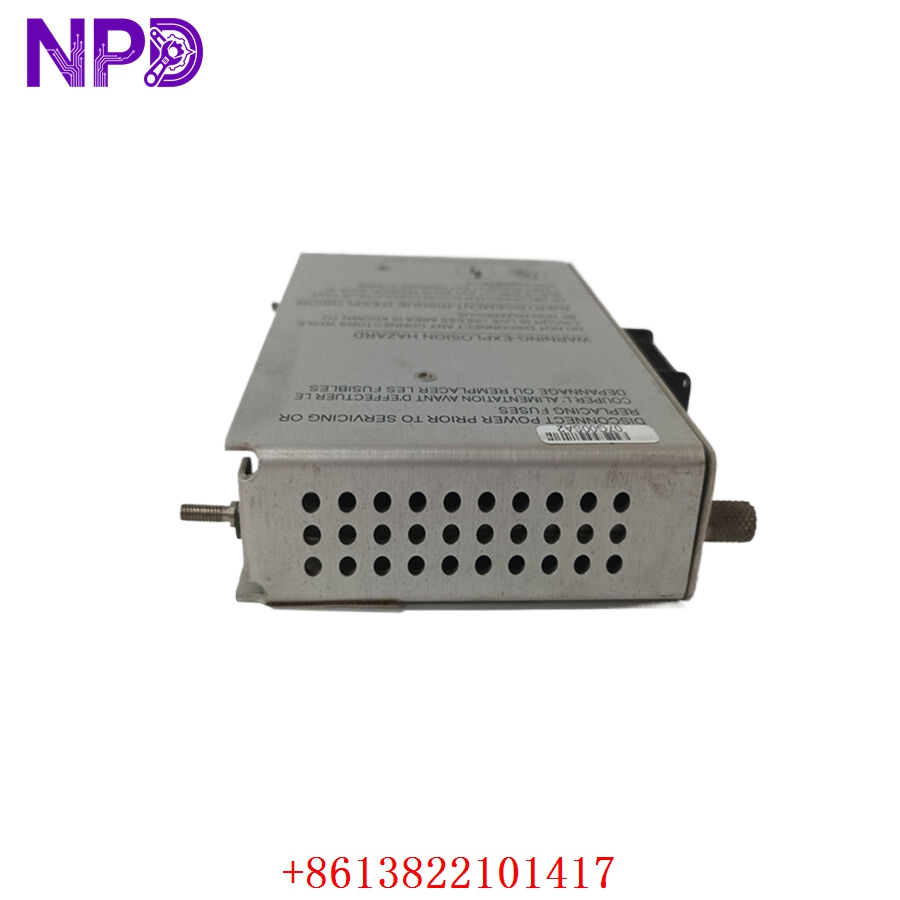

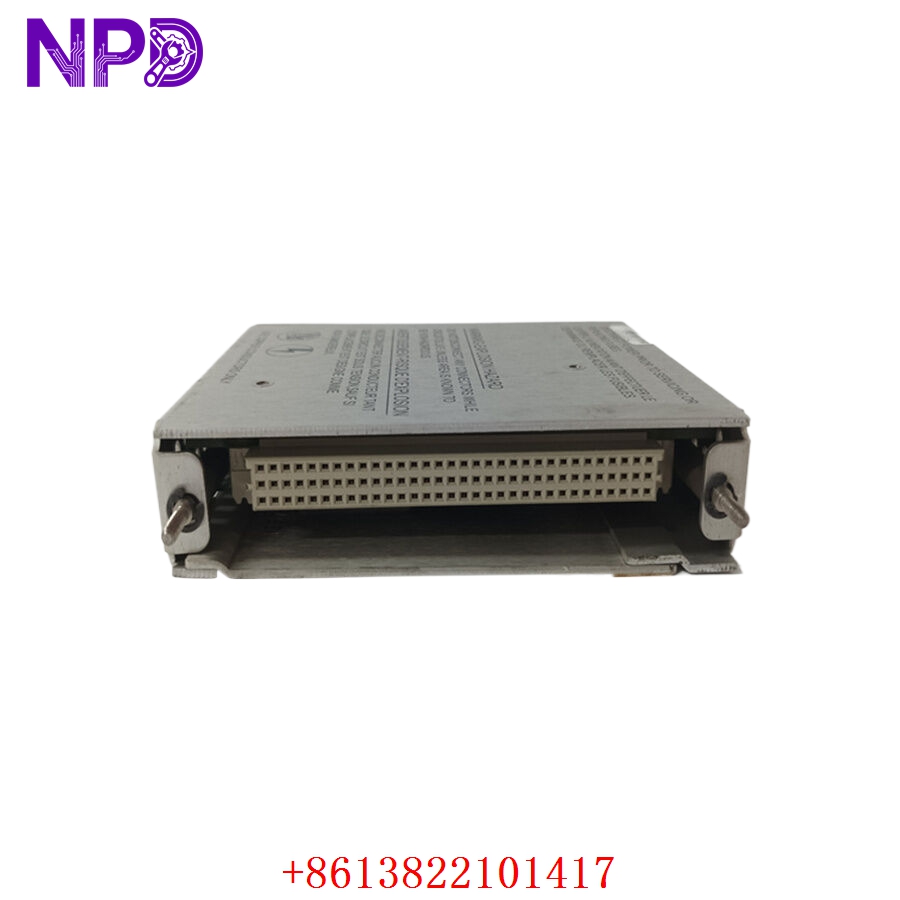

The Bently Nevada 125840-01 is a High Voltage AC Power Input Module (PIM) designed specifically for the 3500/15 Machinery Protection System. Operating as a critical half-height backend interface, this module accepts external line power and securely routes it to the primary 3500/15 power supply modules installed on the left side of the system rack. It provides integral overvoltage protection, electrical isolation, and physical terminal connection points, ensuring a stable and uninterrupted power distribution baseline required to safely monitor turbomachinery and other high-speed industrial rotating assets.
Product Specifications
- Model Number: 125840-01
- Manufacturer: Bently Nevada (Baker Hughes)
- Product Series: 3500/15 Machinery Protection System
- Function: High Voltage AC Power Input Module (PIM)
- Dimensions: 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
- Weight: 0.34 kg (0.75 lbs)
- Country of Origin: United States (USA)
- Input Voltage Range: 175 to 264 Vac rms (247 to 373 Vac pk)
- Input Frequency: 47 to 63 Hz
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity Tolerance: 95% non-condensing relative humidity
Applications
- Heavy Machinery Protection Racks: Provides dedicated backend electrical termination for Bently Nevada 3500 series vibration monitoring hardware.
- Power Generation Plants: Used within gas turbine, steam turbine, and main generator instrumentation infrastructure to interface high-voltage grid utility power.
- Oil and Gas Facilities: Installed inside control rooms for offshore platforms, refineries, and pipelines to manage power feeds into hazardous area machinery monitoring systems.
- Heavy Industrial Processing: Deployed in petrochemical plants and steel manufacturing lines to distribute clean operational voltage to critical compressor and pump protection racks.
Product Usage Instructions
- Slot Configuration: The 125840-01 is a half-height I/O module. It must be installed into the dedicated power input module slot located directly on the rear side of the leftmost section of the 3500 rack, mating precisely with the corresponding 3500/15 front-facing power supply module.
- Wiring and Termination: Connect the high-voltage AC mains line to the designated screw terminals on the module block while ensuring line power is completely isolated. Verify proper ground connection to minimize electrical noise interference in the sensor readings.
- Redundancy Management: For fully redundant operations, a second 125840-01 module can be installed alongside a secondary power supply. The module in the lower slot defaults as the primary input pathway, and the upper slot maintains seamless, uninterrupted backup execution if a power failure occurs.

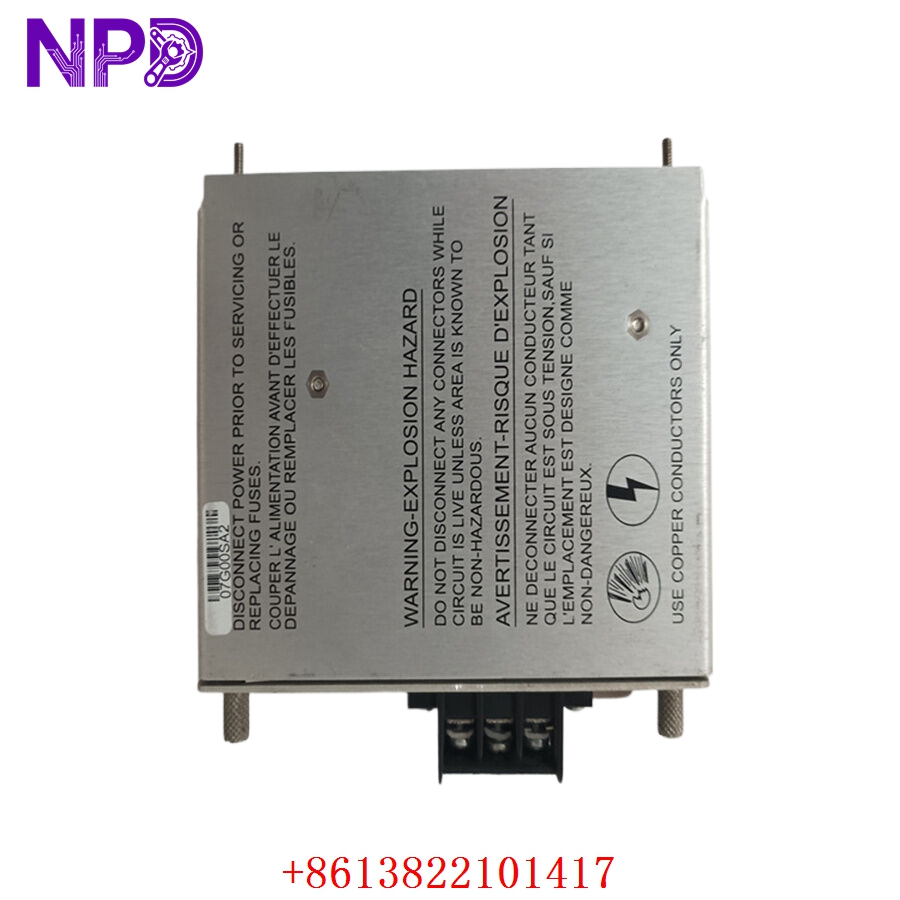

- Safety & Maintenance: Always check the rating label prior to energizing the circuit. If an overvoltage spike occurs, inspect the integrated module fuse. Power must be fully shut off before pulling or swapping out the PIM to ensure hardware safety.
Frequently Asked Questions (Q&A)
- Q: What happens to the 125840-01 module if the incoming AC voltage drops below the nominal range?
A: An undervoltage condition will not cause mechanical or electrical harm to either the input module or the paired front power supply. The module is structurally resilient against line sags, though prolonged dropouts may cause the rack to switch over to the backup power line.
- Q: How does this module defend the internal components of the 3500 rack against overvoltage?
A: The module contains a highly specialized, fast-acting internal fuse. In the event of a severe overvoltage spike, the fuse immediately clears and opens the circuit, breaking the power path before the surge can propagate to the front processing or sensing modules.
- Q: Is the 125840-01 compatible with the newer universal AC power supply systems?
A: No. Legacy power input modules, including the 125840-01 High Voltage AC option, are not interchangeable or electrically compatible with newer, universal AC components or low-voltage DC installations. They must strictly match a corresponding 3500/15 high-voltage AC supply model.
- Q: Can I replace or install this rear PIM module while the system monitor rack is running?
A: You can physically swap out a power module without disrupting rack operation only if a secondary, fully functional redundant power supply and input module are active in the opposite slot. If the rack relies on a single supply line, removing the PIM will instantly cut system power.
