BENTLY NEVADA 3500/15 106M1079-01 High-Reliability Power Supply Module

Description

• Model: BENTLY NEVADA 3500/15 (Common Spares: 127610-01 / 106M1079-01)
• Brand: Bently Nevada (Baker Hughes / USA)
• Series: 3500 Machinery Protection System
• Core Function: Converts line-input power down to regulated DC voltages required to run the internal processors and monitoring cards across the 3500 backplane.
• Condition: Brand New Surplus (Original factory packaging, non-refurbished)
• Product Type: Rack Power Supply Module
• Key Specs: Supports Universal AC (85 to 264 V AC) or High-Voltage DC inputs | Fits left-hand side slots | Supports dual-redundancy

• Input Voltage Options:
  • Universal AC: 85 to 264 V AC (47 to 63 Hz)
  • High Voltage DC: 88 to 140 V DC
  • Low Voltage DC: 20 to 30 V DC (dependent on I/O module selection)
• Output Voltages (Backplane Rails): Supplies regulated +5 V DC, +15 V DC, -15 V DC, and +24 V DC to the chassis rack
• Efficiency: 75% typical at nominal full-scale rated load
• Redundancy Configuration: Supports two modules simultaneously in a single rack (Lower and Upper slot positions) for full redundant load sharing
• Isolation Voltage: 3,000 V AC minimum input-to-output safety barrier
• Front Panel Displays: Onboard status LEDs (Supply OK, Main Supply, Backup Supply)
• Physical Slot Allocation: Occupies the dedicated special-width power slot on the far left-hand side of the 3500 chassis
• Weight: 1.45 kg (3.20 lbs)
• Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)

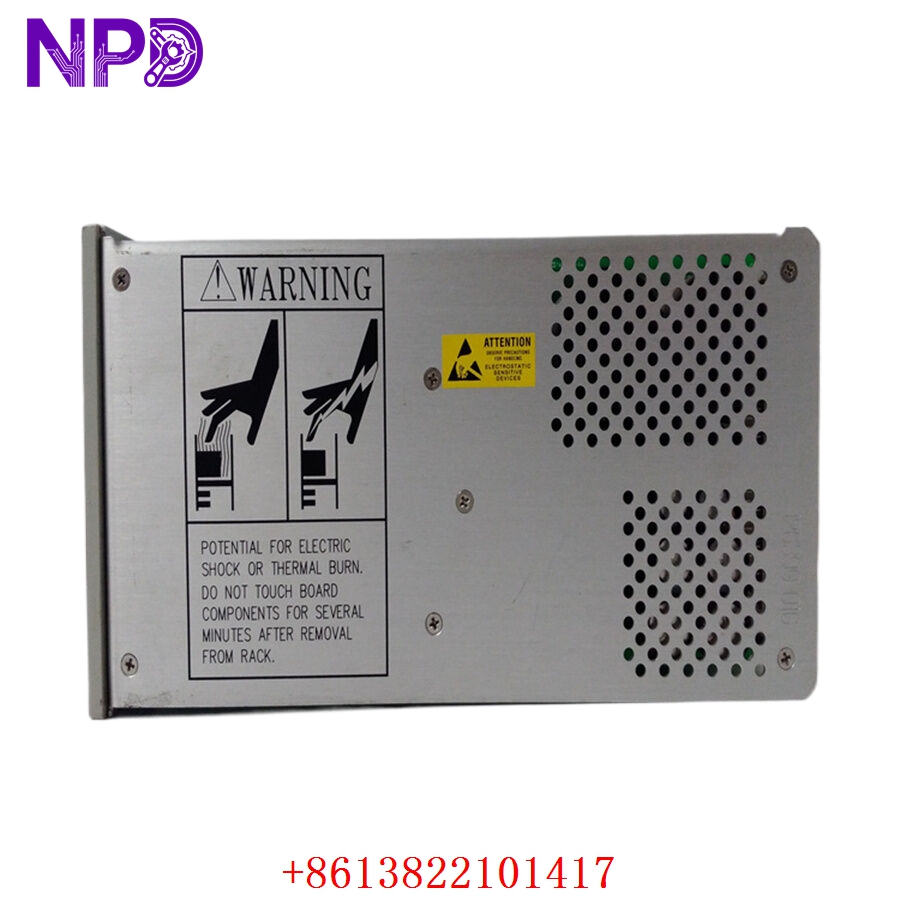

BENTLY 3500/15

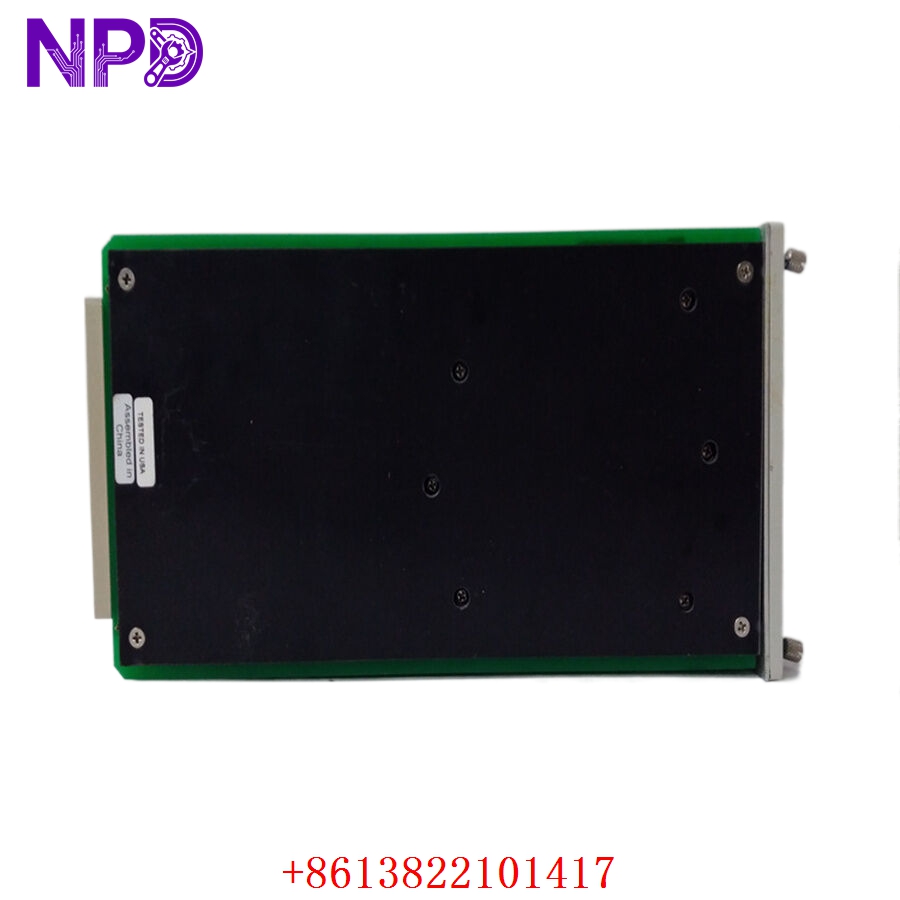

BENTLY 3500/15

BENTLY 3500/15

BENTLY 125840-01 3500/15

Application Scenarios & Engineering Pain Points

The 3500/15 power supply is the heart of the Bently Nevada machinery protection chassis. If the power supply fails in a non-redundant rack configuration, the entire 3500 rack dies instantly. This drops communication with the plant distributed control system (DCS) and immediately forces an emergency machine trip if your safety logic is wired as “de-energize to trip.”

A major engineering headache occurs when aging components inside an active power module degrade after years of 24/7 exposure to heat and high-frequency ripples inside the panel enclosure. When this happens, voltage rails begin to sag or fluctuate, causing adjacent monitor modules (like the 3500/42M or 3500/45) to throw intermittent “Not OK” faults or erratic calibration values that disrupt production scheduling.

Typical Field Deployments:

1. Base-Load Power Stations – Turbogenerator Main Racks

   Supplies redundant backplane power for critical shaft vibration, displacement, and temperature monitoring loops on 500 MW steam turbine sets.

2. LNG Liquefaction Facilities – Mixed Refrigerant Compressors

   Powers high-reliability TMR (Triple Modular Redundant) protection systems where a complete rack power drop out would cause millions of dollars in flaring and process downtime.

3. Steel Mills – Blast Furnace Air Blowers

   Provides continuous regulated low-noise voltage supply to the instrumentation monitoring massive high-inertia fans operating in heavy electrical noise environments.

Case Study: The Midnight Diode Collapse

• The Setup: A refinery in the Pacific Northwest utilized a standard 3500 instrument rack configured with a single 3500/15 power card to safeguard an essential hydrogen recycle compressor.
• The Crisis: At 2:15 AM, an upstream transformer switching operation introduced an intense voltage surge into the local utility distribution lines. The aging input filter capacitor on the power supply module ruptured under the strain. The module died instantly. Because the rack lacked a second redundant power unit, all vibration cards lost backplane voltage. The system executed its emergency interlock sequence, tripping the compressor and stalling the entire hydrocracking unit. The field team faced a hard plant freeze costing upwards of $35,000 for every hour they spent hunting down a replacement.
• The Fix: The plant maintenance lead contacted our parts desk. We verified a brand-new 3500/15 universal AC power block in our climate-stable inventory, pulled the module, completed an automated load-bank tracking run on our test bench, and handed the package over to a local hot-shot courier service.
• The Outcome: The new module arrived on-site by 10:45 AM. The technician slid the supply block into the left-side slot and secured the front fasteners. The rack booted up immediately, loaded its existing card configurations, cleared all system faults, and enabled operators to safely restart the compressor unit before the end of the morning shift loop.

Standard Operating Procedure (SOP) Quality Transparency

Because power generation units cannot afford to install unreliable backplane infrastructure hardware, our engineering facility tests every incoming 3500/15 supply module through a comprehensive five-stage quality cycle before it is authorized to leave our dock:

[Visual Trace & Pin Audit] ➔ [Chassis Slot Insertion Fitting] ➔ [Load Bank Regulation Logging] ➔ [Hi-Pot Isolation Verification] ➔ [ESD Safe Packing]

1. Visual Trace and Pin Audit

• Geometric Micro-Audit: We examine the main backplane high-density power pin cluster, surface solder joints, and internal filter arrays under magnification to confirm zero component swelling, discoloration, or manufacturing defects.
• Authenticity Verification: Part numbers, internal board revisions, and tracking tags are checked against factory technical profiles to ensure the module is 100% genuine and unaltered.

2. Chassis Slot Insertion Fitting

• Mechanical Alignment: The heavy power frame is slid into an authentic Bently Nevada 3500/05 chassis power slot. We check that the unit aligns cleanly with the structural guide rails and seats completely into the backplane connectors without mechanical binding.

3. Load Bank Regulation Logging (Live Bench Test)

• Test Architecture: The supply module input terminals are hooked to a programmable AC line source. The output bus rails (+5 V, +15 V, -15 V, +24 V) are coupled to an adjustable electronic load bank simulation rig.
• Data Log Loop: We cycle the input supply line from 90 V AC up to 260 V AC while maintaining a full-scale current draw across the output rails. We verify that the output voltages remain perfectly stable within the tight \pm1\% regulation window with zero high-frequency ripple anomalies.

4. Hi-Pot Isolation Verification

• Dielectric Safety Check: We perform a high-potential dielectric test across the input-to-output barriers to ensure excellent surge protection margins and prevent plant panel electrical noise from jumping onto sensitive sensor logic pathways.

5. ESD Safe Packing and Dispatch

• Shielding Sealing: The card structure is packed into a heavy-duty, static-shielding bag within a certified ESD-controlled zone.
• Transit Shell: Cocooned inside high-density shock-absorbing foam inserts within a rigid double-wall shipping carton to eliminate risk from transit impacts.
• Certification: Every unit is tagged with a physical QC Passed label showing the formal inspection date.

Technical Pitfall Mitigation Guide

Installing or upgrading a 3500/15 power supply block requires careful attention to a few critical field installation steps.

1. The Redundant Mode Switch Trap

• The Risk: When you install two 3500/15 power supplies for dual-redundant operation, you must verify that the tiny slide switches located on the rear I/O module are set correctly. If the switches are misaligned, the rack may fail to execute automated load-sharing, leaving your safety system vulnerable to a single point of failure.
• The Fix: Before powering up a newly installed redundant supply, look at the back of the rack panel. Locate the small slide switches on the rear power input module faceplate. Ensure they are toggled to the Redundant position rather than the independent tracking option. This links both power blocks into the shared internal rail array.

2. Matching Voltages to the Rear I/O Module

• The Risk: The front-facing 3500/15 power module must match the specific voltage type of the rear power input I/O module installed in the back of the slot (e.g., a High-Voltage AC front card will not work with a Low-Voltage 24 V DC rear I/O block).
• The Fix: Check the labels on your rear input block before swapping parts. The front chassis power module is universal for AC and High-Voltage DC inputs, but if your site runs on a native 24 V DC battery bank, you must ensure that both the front card and the rear landing strip are rated for Low-Voltage DC operations.

3. Hot-Swapping Redundant Modules Safely

• The Risk: The 3500 platform allows you to hot-swap a failed power supply while the machinery is running, provided a second healthy supply is actively powering the rack. However, if you slide the module out too quickly or crookedly, you can cause a momentary voltage arc across the backplane pins that might trip adjacent monitor cards.
• ❗ Crucial Warning: When replacing a failed redundant unit in a running panel, always loosen the retention screws fully first. Pull the module out smoothly and straight along its guide rails. Do not rock or tilt the module during extraction. Verify that the second supply’s “Supply OK” LED remains a solid green throughout the entire process.

Compatible Replacement Models

If you are evaluating platform maintenance options or system migrations, review these relative component paths:

Troubleshooting Quick Reference

Use this diagnostic breakdown to isolate power path problems before swapping out hardware components:

Need immediate engineering backup? If your plant is down and you cannot pinpoint the failure node, drop our technical support desk an email with photos of your current indicator lights and a copy of your panel’s wiring diagram. We will have an integration engineer respond within 2 hours.
