Description
- Model: DEIF PCM4.3
- Brand: DEIF
- Series: Multi-line 4 (ML-4)
- Core Function: Power Management Core for complex plant control logic
- Product Type: Controller / Logic Module
- Key Specs: Integrated Power Management Plant-wide synchronization Robust industrial housing
- Series Architecture: Part of the DEIF Multi-line 4 high-end controller range
- Logic Engine: Advanced Power Management (PM) logic for complex breaker and genset configurations
- Connectivity: High-speed internal bus for connection to I/O and communication modules
- Operating Temperature: -25 °C to +70 °C (-13 °F to +158 °F)
- Communication: Supports CANbus (internal/external), Modbus RS-485, and Ethernet (via expansion)
- Redundancy: Capable of redundant controller setups in critical power applications

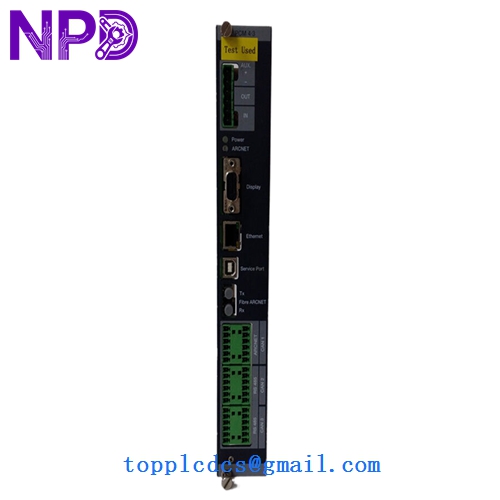

- Display Interface: Connects to DEIF DU-2 or DU-4 remote display units

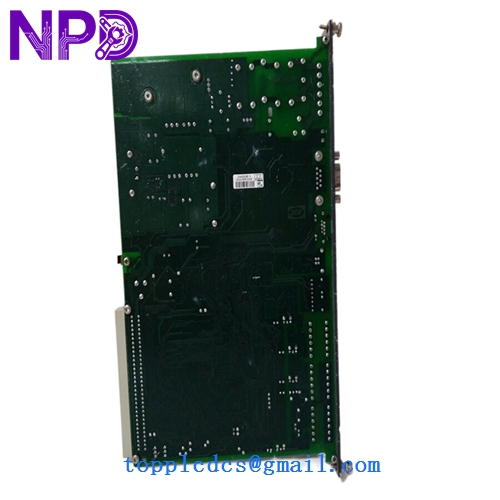

DEIF PCM4.3
DEIF PCM4.3 2044230081A 2044230080A
DEIF PCM4.3 2044230081A 2044230080A
Application Scenarios & Pain Points
The DEIF PCM4.3 is the “central intelligence” of a Multi-line 4 power management system. It doesn’t just look at one generator; it looks at the entire plant bus, multiple mains (utility) feeds, and tie-breakers. In mission-critical environments like data centers or hospitals, the PCM4.3 handles the load-dependent start/stop logic and priority-based load shedding.
The primary pain point for operators is configuration complexity. Because the PCM4.3 is highly flexible, it requires the DEIF Utility Software (USW) for setup. If a module is replaced without the exact site configuration file (.ers or .upg), the new unit will not know how to handle the plant’s breakers, which can lead to a total blackout during a power transition.
Typical Application Scenarios:
- Mission-Critical Data Centers Managing the synchronization of 10+ backup generators with multiple utility feeds.
- Marine Power Management Controlling shipboard power distribution, including “Blackout Recovery” logic.
- Emergency Hospital Power Ensuring seamless transition from mains to emergency power with high-speed synchronization.
- Microgrid Control Integrating renewable energy sources (Solar/Wind) with traditional diesel engine sets.
Case Study: The “Sync Failure” Recovery
Background: A luxury cruise ship experienced an issue where the main bus tie-breaker would not close, preventing the auxiliary generators from sharing the load with the main engines.
Problem: The onboard team identified that the PCM4.3 core was not receiving the “Phase Match” signal from the voltage sensing modules. The internal logic of the PCM4.3 had become corrupted due to a transient voltage surge on the control power line.
Solution: We provided a replacement PCM4.3 module. Using the DEIF Utility Software, the chief engineer uploaded the original ship project file.
Result: – Success: The bus tie-breaker synchronized and closed on the first attempt.
- Safety: The ship’s redundancy was restored before its next departure.
- Engineer’s Insight: “With DEIF Multi-line 4, always keep a backup of your configuration on a USB drive. Without the .ers file, even a brand-new PCM4.3 is just a paperweight.”
Compatible Replacement Models
The PCM4 series has seen several iterations. The 4.3 is the refined version of the ML-4 core.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| PCM4.3 | PCM4.3 | ✅ Exact Match | Standard ML-4 Core. |
| PCM4.1 / 4.2 | PCM4.3 | ⚠️ Software | Hardware-compatible, but requires project conversion in USW. |
| PCM4.3 | AGC-4 | ❌ Incompatible | AGC-4 is a different series (Advanced Genset Controller). |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| “System Error” LED | Internal Watchdog | ✅ High | Check the event log via DEIF USW. | Replace module if error persists. |
| CANbus Error | Termination/Wiring | ⚠️ Med | Check for 120 Ω resistors at both ends of the bus. | Inspect wiring and connectors. |
| No Comms with USW | Driver/Cable Issue | ⚠️ Med | Ensure the correct USB/Serial driver is installed. | Use the DEIF-approved service cable. |
| Breaker Won’t Close | Logic Mismatch | ✅ High | Verify “Sync-Check” parameters in the software. | Re-calibrate voltage/frequency sensing. |
❗ Pro Tip: The Service Port
The PCM4.3 has a dedicated service port on the front/side. When replacing a unit, always connect your laptop and perform a “Hardware Scan” before trying to run the system. This ensures that the PCM4.3 correctly sees all the I/O extension modules (like the CIO or AIO units) attached to the system bus.
Handling & Installation:
- Mounting: Ensure the module is grounded to the cabinet’s backplate to minimize EMI (Electromagnetic Interference).
- Connectors: DEIF uses high-quality pluggable terminals. Tighten the side screws to prevent vibration from loosening the connections.
- Power: Verify your 24 V DC supply is stable. High ripple voltage from a failing battery charger can cause the PCM4.3 to reboot unexpectedly.
