Description
- Model: Emerson VE3006
- Part Number: 12P3439X012 / KJ2003X1-BB1
- Hardware Revision: G6450081A
- Brand: Emerson (DeltaV)
- Series: DeltaV S-Series / M-Series
- Core Function: Main MQ Controller for distributed process control and logic execution
- Product Type: DCS System Processor / Controller
- Key Specs: 24 V DC Power Redundancy Support Advanced Control Capabilities
Key Technical Specifications
| Attribute | Specifications |
| Model Number | VE3006 / KJ2003X1-BB1 |
| P/N | 12P3439X012 |
| Controller Type | MQ (Advanced Process Controller) |
| Input Voltage | 24 V DC (+/- 10%) |
| Redundancy | Supported (When used with redundant carrier) |
| Max Power Req. | 0.4 A at 24 V DC |
| Internal Memory | Non-volatile (Flash) for logic storage |
| Communication | DeltaV Control Network (Ethernet-based) |
| Mounting | DeltaV Controller Carrier |
| Operating Temp | -40°C to 70°C (-40°F to 158°F) |

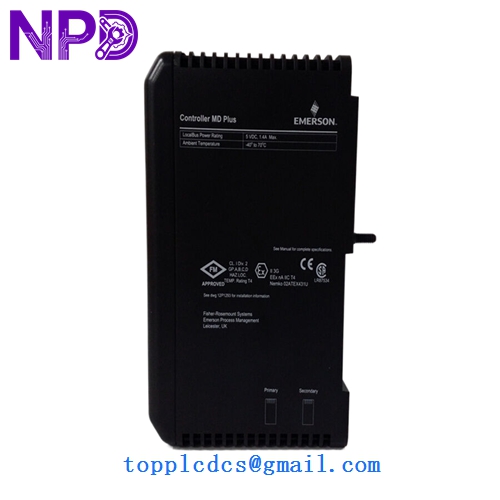

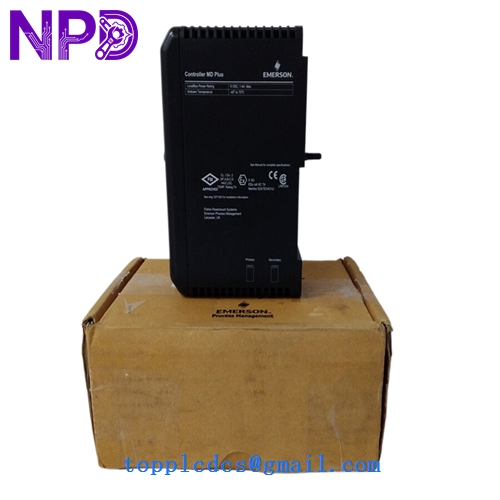

EMERSON VE3006 12P3439X012 G6450081A KJ2003X1-BB1
EMERSON VE3006 12P3439X012 G6450081A KJ2003X1-BB1
EMERSON VE3006 12P3439X012 G6450081A KJ2003X1-BB1
EMERSON VE3006 12P3439X012 G6450081A KJ2003X1-BB1
Application Scenarios & Pain Points
The VE3006 (MQ Controller) is the central intelligence unit of the DeltaV Distributed Control System (DCS). It is responsible for executing the control logic for thousands of field instruments. The primary pain point with the MQ controller series is Memory Fragmentation over years of continuous operation and online configuration changes. If the controller is not periodically “cold started” or if the hardware begins to degrade, you may experience “Controller Freezes” where the I/O stops updating while the processor appears to be healthy. Because these controllers manage critical processes like chemical reactor cooling or oil distillation, a freeze can lead to immediate safety shutdowns and massive production losses.
Typical Application Scenarios:
- Continuous Process Control
Managing complex PID loops and batch execution in oil refineries and pharmaceutical plants.
- Safety Instrumented Systems (SIS) Interface
Communicating with safety logic solvers to ensure coordinated process shutdowns.
- Redundant Plant Control
Operating in a redundant pair where the secondary controller takes over in less than 100ms if the VE3006 hardware fails.
Case Study: The “Blind” Control Room
Background: A mid-sized chemical plant utilized DeltaV M-Series hardware.
Problem: The HMI screens suddenly showed “Bad Status” for all I/O tags. The VE3006 controller’s “Error” LED was flashing, and the secondary controller failed to take over due to a synchronization error caused by a hardware fault in the MQ processor’s communication ASIC.
Solution: We provided a tested VE3006 12P3439X012 (KJ2003X1-BB1) from our local inventory.
Result: The faulty module was replaced, and the configuration was downloaded from the DeltaV Explorer. The plant was back online within 6 hours. Without the spare, the lead time from the OEM would have been 8 weeks, costing the plant millions in lost downtime.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Change Required | Cost Impact |
| VE3006 | VE3006 | ✅ Direct | N/A | 1:1 Replacement | Base |
| VE3006 | VE3007 | ⚠️ Partial | MX Controller (Higher capacity) | Software Re-config | +35% |
| VE3006 | VE3008 | ❌ Incompatible | PK Controller | New System Architecture | +200% |
Engineer’s Note: The KJ2003X1-BB1 is the specific assembly identifier. Ensure your replacement matches this, as older KJ2003X1-BA1 units may not support the same firmware versions required by newer DeltaV software (v11 and above).
Troubleshooting Quick Reference
| Symptom | Possible Cause | Spare Relevance | Quick Check | Action |
| Error LED Flashing | Configuration Mismatch / HW Fail | ✅ High | Check DeltaV Diagnostics for “Node Offline” | Replace module |
| Active LED Off | Power Issue or Standby Mode | ⚠️ Medium | Measure 24V at the carrier pins | Check power supply/carrier |
| Sync LED Off (Redundant) | Redundancy Link Failure | ✅ High | Inspect fiber/copper sync cables | Replace module if internal sync fail |
| No Comms to HMI | Network Port Failure | ✅ High | Swap Ethernet cable or switch port | Replace module if port is dead |
❗ Critical Warning: The “Cold Start” Trap
Before replacing a VE3006, always attempt to “Decommission” and “Commission” the node via the DeltaV software. Sometimes a software lockup can look like a hardware failure. However, if the “Internal Error” bit is set in the diagnostic buffer, the hardware has likely suffered a component failure and must be replaced.
SOP Quality & Testing Protocol:
Every Emerson VE3006 we ship undergoes a Full Configuration Download Test. We use a DeltaV M-Series Carrier and DeltaV v14 software to verify the controller can be successfully commissioned, loaded with logic, and perform redundancy switchovers. We provide a Test Report documenting the hardware revision (G6450081A) and MAC address. Video of the “Healthy” status LEDs during a test run is available upon request.
