Description
- Model: Emerson 1X00781H01L
- Brand: Emerson (Ovation/Westinghouse)
- Series: Ovation DCS (Distributed Control System)
- Core Function: Provides high-density interface for analog or digital signals, facilitating field device communication with the Ovation controller.
- Product Type: I/O Interface Module / DCS Controller Component
- Key Specs: Designed for high-availability process control environments
- System Compatibility: Ovation Distributed Control System (Ovation DCS)
- Design Architecture: High-density I/O (HDIO) for centralized control room monitoring
- Signal Type: Dependent on specific I/O personality/base; supports standard process instrumentation
- Environmental: Rated for industrial DCS cabinet environments
- Communication: High-speed backplane integration with the Ovation controller rack
- Diagnostics: Built-in self-test and channel-level health monitoring
- Mounting: Rack-mounted module (compatible with standard Ovation I/O nests)

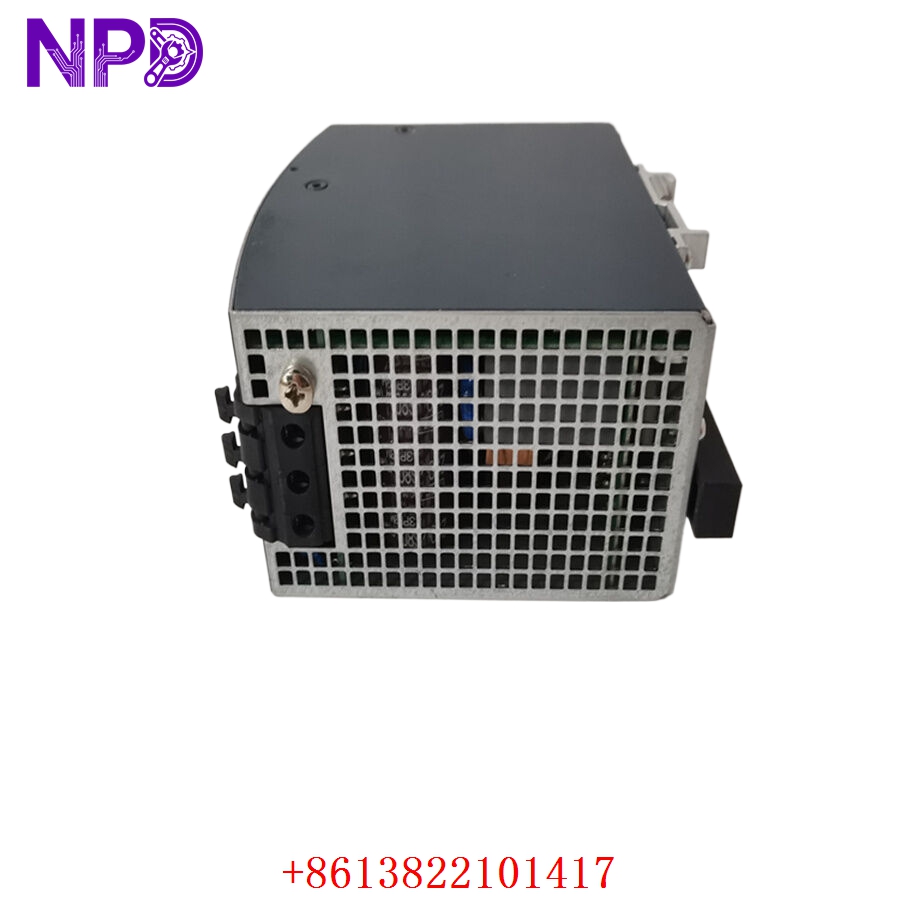

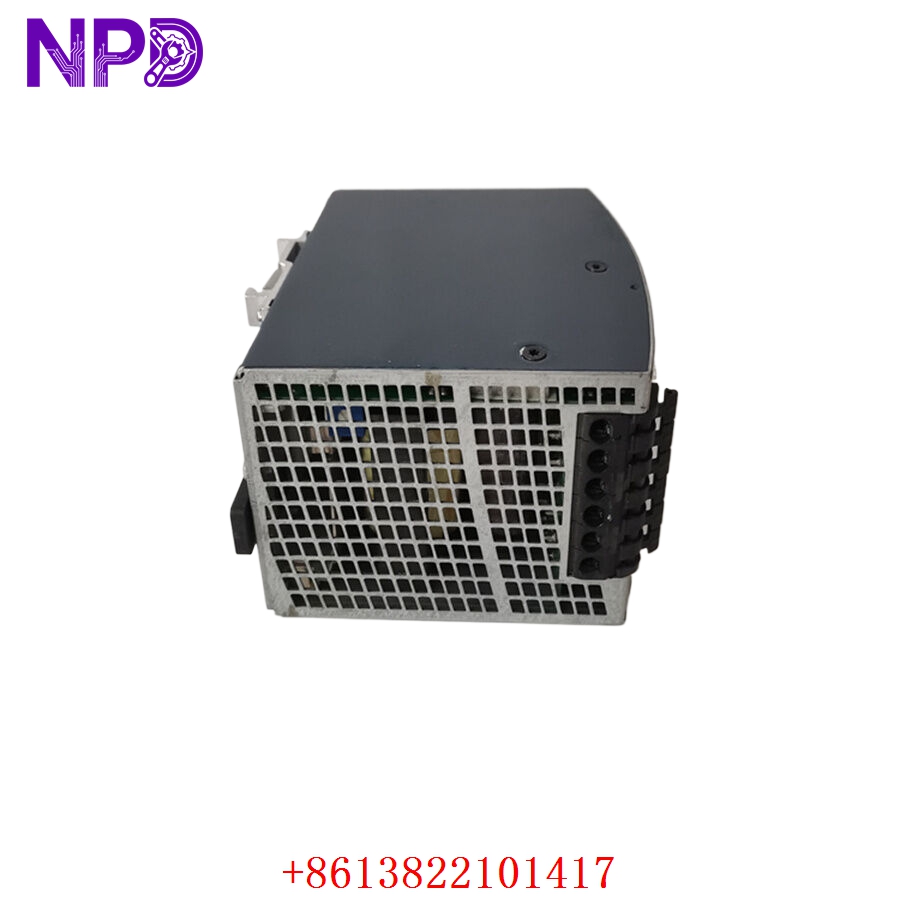

EMERSON 1X00781H01L
Application Scenarios & Engineering Pain Points
The 1X00781H01L is a legacy module often found in large-scale power generation and chemical processing facilities that have run Ovation systems for decades. The primary engineering challenge is the “I/O Personality” mapping. When replacing these modules, the physical replacement is straightforward, but the configuration of the “Personality Module” (the field termination board) must perfectly match the existing loop wiring. If the jumpers on the personality module aren’t set correctly during the swap, you risk signal mismatch, which can lead to erroneous process readings in the DCS.
Typical Application Scenarios:
- Power Generation – Boiler/Turbine Control Monitoring critical temperatures, pressures, and flow transmitters in a high-availability DCS loop.
- Chemical Processing – Batch Reactor Automation Interface module for sequence control and analog feedback from process field transmitters.
- Water Treatment – Supervisory Control Aggregation point for remote telemetry signals in large-scale municipal utility plants.
Case Study: Ovation DCS Migration and Maintenance A major utility plant experienced a failure in one of their analog input interface modules during a peak demand period. The OEM had long since updated the hardware line. By sourcing a tested 1X00781H01L surplus unit, the plant engineers performed an “in-service” replacement. Because the personality board was preserved during the swap, the DCS recognized the module immediately upon insertion. The module was back online in less than 20 minutes, avoiding a multi-hour control loop re-configuration.
Troubleshooting Quick Reference
Don’t assume the module is “dead” if you see a “Module Failed” light on the Ovation rack. Emerson’s I/O modules are excellent at identifying where the signal is lost.
| Failure Symptom | Possible Cause | Quick Check Method | Recommended Action |
|---|---|---|---|
| “Module Fail” LED | Internal Logic Error | Check Ovation Diagnostic log | Power cycle rack; if fault persists, replace |
| Signal “Jitter” | Field Wiring Impedance | Check terminal connection | Tighten field terminations; check shield |
| No Input/Output | Personality Board Mismatch | Inspect jumpers/DIP switches | Verify jumper configuration matches backup |
| Backplane Error | Bus Pin Damage | Inspect module pins for bending | Clean pins; reseat module in adjacent slot |
Engineer’s Note: ❗ Crucial Advice: Always verify the Revision level (“H01L”) before integration. Ovation systems are sensitive to hardware revisions. Mixing different hardware revisions on the same I/O branch can sometimes lead to communication timing inconsistencies in the control rack. If your system is running a very old controller firmware, ensure the module revision is compatible before the “Hot Swap.”
