Description

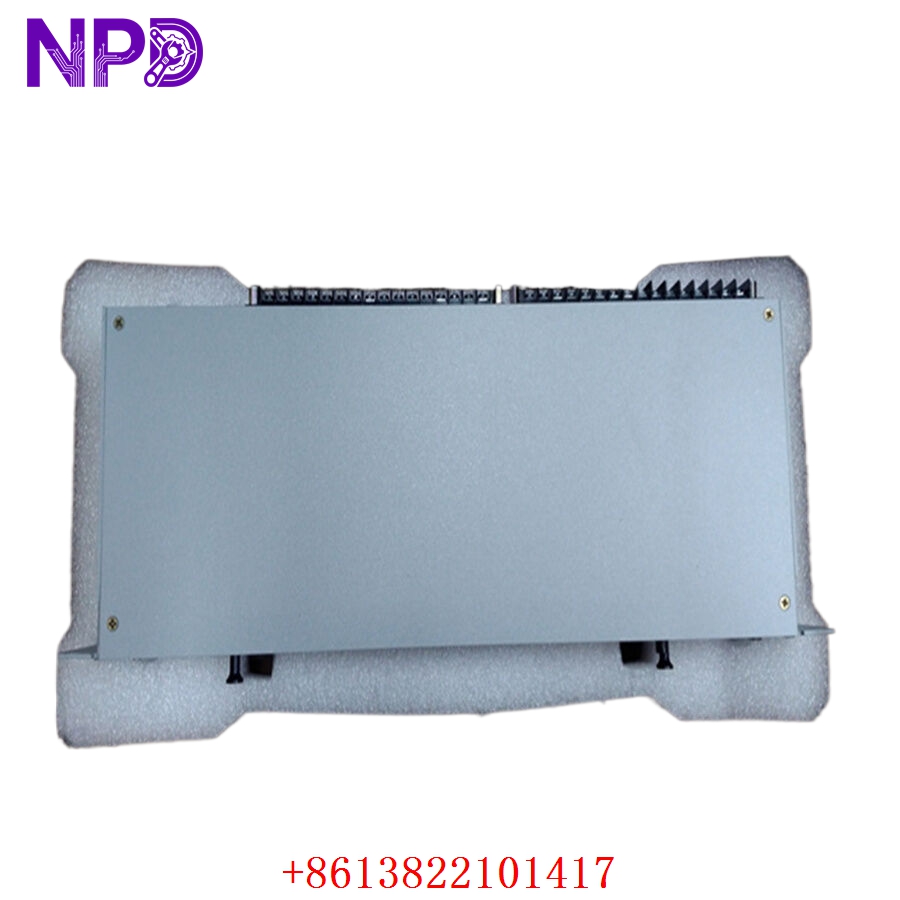

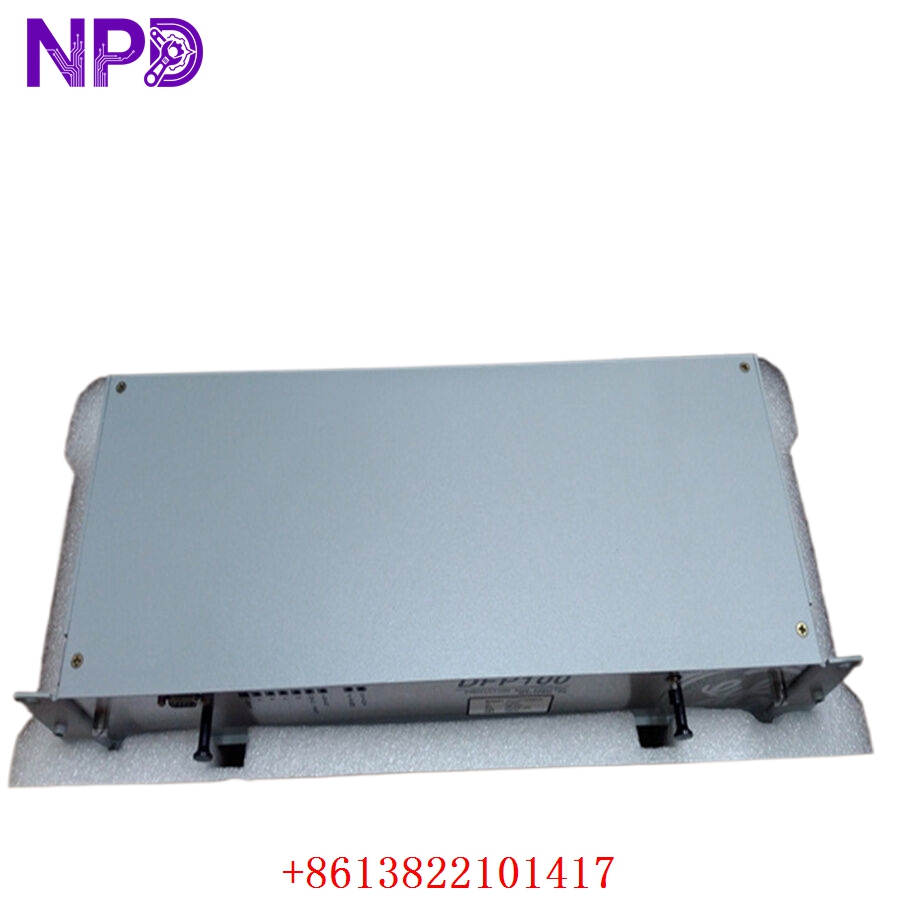

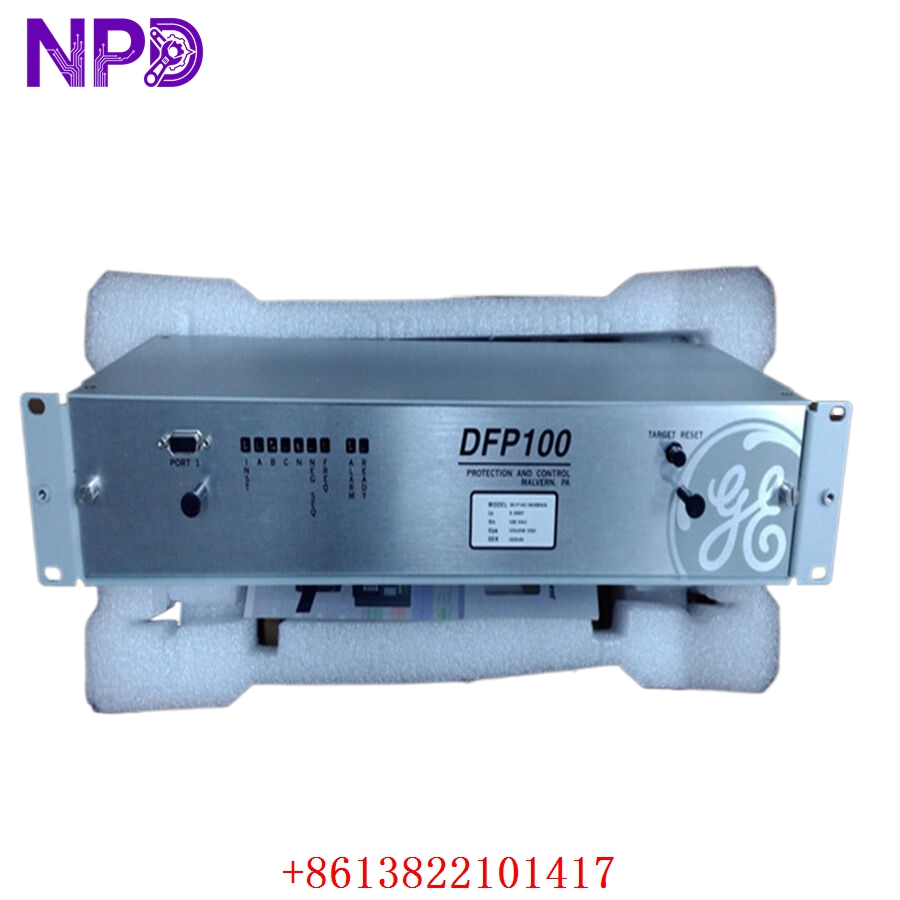

Model: DFP100 (DFP14C1N000GB)
· Brand: GE Multilin (Grid Solutions)
· Series: DFP100 Digital Feeder Protection Series
· Core Function: 🛡️ Comprehensive feeder protection, fault detection, and monitoring for distribution networks
· Product Type: 📟 Digital Protective Relay
· Key Specs: 🛠️ Draw-out design, selectable CT/VT inputs, advanced programmable logic
- Control Power: Universal AC/DC (Standard input range)
- Protection Functions: Instantaneous/time-delay overcurrent, ground fault, phase unbalance, and reclose logic
- Communication: RS-485 Modbus RTU connectivity
- Inputs/Outputs: Programmable digital inputs and output relay contacts
- Mounting: Standard switchgear draw-out design for easy maintenance
- Metering: Real-time monitoring of phase currents, voltages, and demand
- Programming: Configuration via local front panel or PC-based software
Application Scenarios & Engineering Insights
The DFP100 is a classic “workhorse” for medium-voltage distribution feeders. A critical “pain point” I see often is that the reclosing logic settings are frequently left at factory defaults during initial setup, which can lead to nuisance operations in sensitive grid environments. If you are replacing this unit, I strongly advise performing a full settings migration using the software tool rather than manually inputting parameters, as a single typo in a timing value can lead to delayed breaker operations during a fault.
Typical Use Cases:
- Utilities – Distribution Feeders
Providing primary protection for underground and overhead distribution circuits.
- Industrial Facilities – Substation Management
Monitoring incoming main feeders for overcurrent or ground fault events.
- Mining/Refineries – Power Distribution
Ensuring selective coordination in complex plant power systems to isolate faults and minimize downtime.
Troubleshooting Pro-Tip:
If your relay shows a “Self-Test Error,” check the internal auxiliary power supply voltage first. These relays are sensitive to the “ripple” on DC control buses. If your station battery charger is starting to fail and outputting high AC ripple, the DFP100’s internal power supply will struggle to maintain clean logic levels, triggering false self-test alarms.
Compatible Replacement Models
| Original Model | Replacement | Compatibility | Difference |
| DFP14C1N000GB | DFP100 Series | ✅ Direct | Identical hardware revision |
| DFP14C1N000GB | GE F650 Series | ⚠️ Migration | Advanced protection; requires minor rewiring |
| DFP14C1N000GB | Modern Multilin 8-Series | ❌ System Modification | Major engineering change required |
Note: Since this model is a legacy component, ensure your replacement unit’s firmware matches your current setup to maintain consistency in communication registers and trip logic.
Troubleshooting Quick Reference
| Symptom | Probable Cause | Action |
| “Alarm” LED Constant | Unacknowledged protection event | Check Event Recorder; acknowledge alarm |
| Relay Will Not Trip | Logic or wiring failure | Test output contacts using maintenance mode |
| “Fail” LED Solid | Internal diagnostics issue | Perform power cycle; clear event buffer |
| Communication Timeout | Baud rate or bias issue | Verify RS-485 termination (120Ω) and wiring |
Safety Warning: Always isolate the Current Transformer (CT) circuits before attempting to remove the draw-out relay from its chassis. Opening a CT secondary circuit while current is flowing causes dangerous high-voltage spikes, potentially damaging the CT and risking operator safety.
