Description
- Model: DS200TBQDG1AFF
- Brand: General Electric (GE)
- Series: Mark V Speedtronic (Gas Turbine Control)
- Core Function: Signal termination and distribution for turbine auxiliary functions
- Type: Termination Board (Option Card)
- Key Specs: Multi-point screw terminals, high-density ribbon connectors, passive signal conditioning
- Terminal Points: High-density terminal blocks for field wiring (supports 14-22 AWG)
- Connectivity: 2x 50-pin ribbon cable connectors (JD1, JD2)
- Compatibility: Specifically designed for the <QD1> or <R> cores in Mark V panels
- Protection: Onboard MOV (Metal Oxide Varistor) surge suppression for input protection
- Signal Support: Handles both discrete inputs and low-voltage analog feedback
- Revision Level: “G1AFF” (Indicates specific hardware revision and functional group)
- Mounting: Snap-in DIN-rail or standoff mounting within the Mark V cabinet
- Isolation: Optical isolation support for specific signal paths (model dependent)

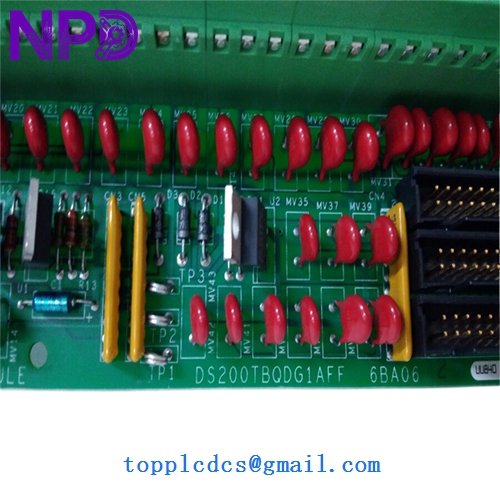

GE DS200TBQDG1AFF

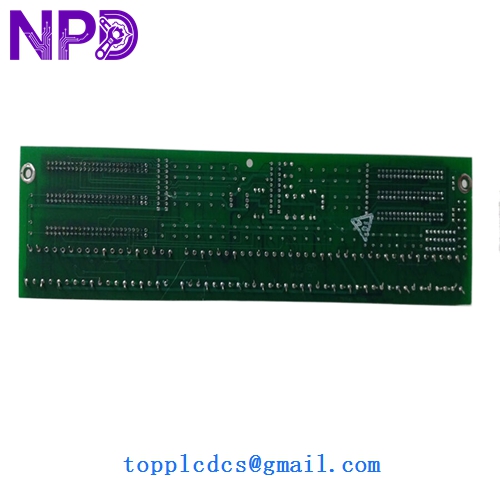

GE DS200TBQDG1AFF
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation: 20 minutes)
⚠️ Safety Warning: The Mark V system operates in live electrical cabinets. Ensure the turbine is in a “Total Lockout/Tagout” state. A false signal from a termination board can trigger an emergency trip or unintended valve actuation.
- Photo Documentation: Take high-resolution photos of the existing wiring. The DS200TBQDG1AFF can have dozens of small wires connected; missing one will cause a “Diagnostic Alarm” that is a nightmare to troubleshoot.
- Static Control: Wear an ESD wrist strap. Even though this is a “Termination Board,” static can travel through the ribbon cables and damage the sensitive I/O processors upstream.
Phase 2: Removal (Step-by-Step)
- Disconnect Ribbon Cables: Gently unlatch the 50-pin ribbon connectors. Check for any signs of “greening” or corrosion on the pins.
- Field Wiring: Unscrew each terminal point. I recommend using wire markers or masking tape to label every single wire with its terminal number (e.g., TB1-1, TB1-2).
- Hardware Extraction: Remove the mounting screws. Note the position of any jumpers (J1, J2, etc.) on the old board.
Phase 3: Installation & Verification
- Jumper Matching: Set the jumpers on the new DS200TBQDG1AFF to exactly match the old board. Jumpers often define signal scaling or pull-up resistors.
- Mounting: Secure the new board and reconnect the field wiring. Tighten terminals to 0.5 N·m—do not over-torque, as these legacy blocks can crack.
- Power-On Test: Restore control power. Check the <I> Processor or HMI for “Loss of Communication” or “Contact Input” alarms.
- Loop Check: If this board handles analog signals, perform a 4-20mA loop check to ensure the signal is reaching the control logic correctly.
Customer Cases & Industry Applications
Case 1: The “Ghost” Diagnostic Alarm A utility plant in Texas was plagued by intermittent “Trip Oil Pressure Low” alarms, despite the pressure being stable. After troubleshooting the pressure transducers, the lead tech found that the DS200TBQDG1AFF board had developed a hairline fracture on a trace due to years of vibration. We supplied a New Surplus board, and the “ghost” alarms vanished instantly, preventing a forced outage during peak summer demand.
Case 2: Post-Overhaul Spare Strategy During a major C-Inspection, a plant manager realized they had zero spares for their auxiliary termination boards. They purchased one DS200TBQDG1AFF as a “Insurance Policy.” Three months later, a technician accidentally shorted a 125V DC circuit into a 24V input on the board during a routine test, frying the onboard MOV. Because the spare was in the warehouse, the system was back online in two hours. Without it, the plant would have stayed dark for weeks while hunting for this obsolete part.
Frequently Asked Questions (FAQ)
Q: Is the “G1AFF” version compatible with my “G1A” board? A: Generally, yes. In GE’s nomenclature, “AFF” represents a later functional revision. It is usually backward compatible. However, always verify that the physical layout and connector positions (JD1/JD2) match your original board before applying power.
Q: Do I need to load software onto this board? A: No. The DS200TBQDG1AFF is a hardware-only termination board. It does not contain microprocessors or PROMs. It acts as the physical interface between your field wires and the control system.
Q: Why choose “New Surplus” over a cheaper “Refurbished” board? A: Termination boards are exposed to the most stress in the cabinet—heat, vibration, and dust. Refurbished boards often have stressed screw terminals or weakened solder joints from previous field use. A New Surplus board gives you the original factory structural integrity, which is vital for long-term reliability in a turbine environment.
Q: Can you provide the original GE test report? A: We provide our own internal Full Function Test Report. Since these parts are from legacy inventory, original paper reports from the 1990s are rarely available. However, we track the serial numbers and verify the board’s integrity using a specialized Mark V test jig to ensure every terminal point is conductive and isolated where necessary.
