Description
Product Specifications
- Origin: United States (USA)
- Weight: 1.85 lbs (0.84 kg)
- Dimensions: 10.5 inches x 7.0 inches x 1.1 inches
- Primary Function: Provides essential turbine trip protection and emergency shutdown logic for the Speedtronic Mark V control system.
- Relay Integration: Contains multiple heavy-duty magnetic relays designed to interface with the primary trip solenoids and E-Stop circuits.
- Signal Compatibility: Interfaces with the <R>, <S>, and <T> cores to provide triple modular redundant (TMR) voted trip signals.

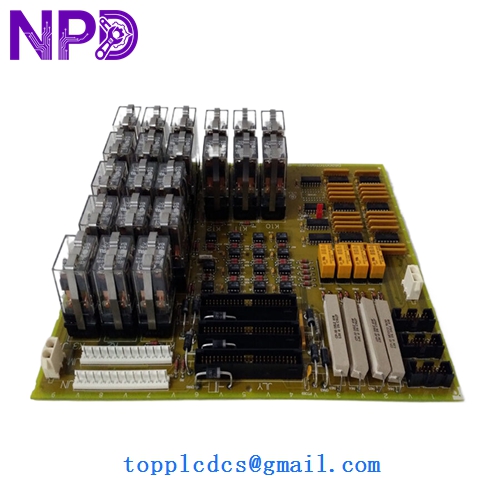

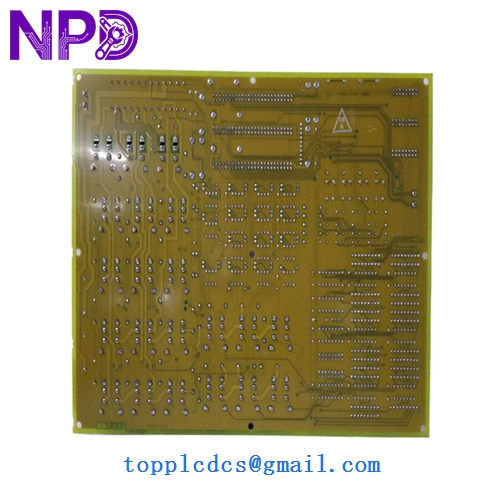

The GE DS200TCTGG1AFF is a specialized protection module that serves as the final voting stage for critical turbine safety functions, ensuring high-integrity emergency shutdowns. This “G1AFF” revision is engineered with specific hardware optimizations to handle high-speed signal processing and physical relay actuation without delay. Its design focuses on fail-safe operation, utilizing redundant circuit paths to prevent accidental trips while ensuring that a legitimate emergency command always reaches the isolation hardware, making it a cornerstone of power plant safety infrastructure.
GE DS200TCTGG1AFF
GE DS200TCTGG1AFF
Model Comparison: DS200TCTGG1AFF vs. Similar Models
The G1AFF designation identifies this board as a specific functional version within the TCTG family. Compared to earlier “G1A” or “G1B” models, the “AFF” suffix typically indicates a later hardware revision that incorporates improved relay contact materials and enhanced noise filtration on the trip feedback loops. While the core logic remains compatible with the standard Mark V trip rack, the G1AFF version is often preferred for newer installations or as an upgrade to older boards to benefit from its superior resistance to vibration and thermal cycling.
Operational Guidelines
- Emergency Protocol: Never remove or install this board while the turbine is in an “Armed” or “Running” state, as this may trigger an immediate unplanned trip.
- Relay Testing: Regularly perform diagnostic “Contact Output” tests through the Mark V interface to ensure the mechanical relays are operating within specified timing parameters.
- ESD Protection: Handle the board exclusively by its edges and use a grounded ESD wrist strap to protect the delicate logic circuits from static damage.
- Termination Check: Ensure all terminal block screws are tightened to the correct torque specifications to prevent intermittent trip signals caused by loose wiring in high-vibration environments.
