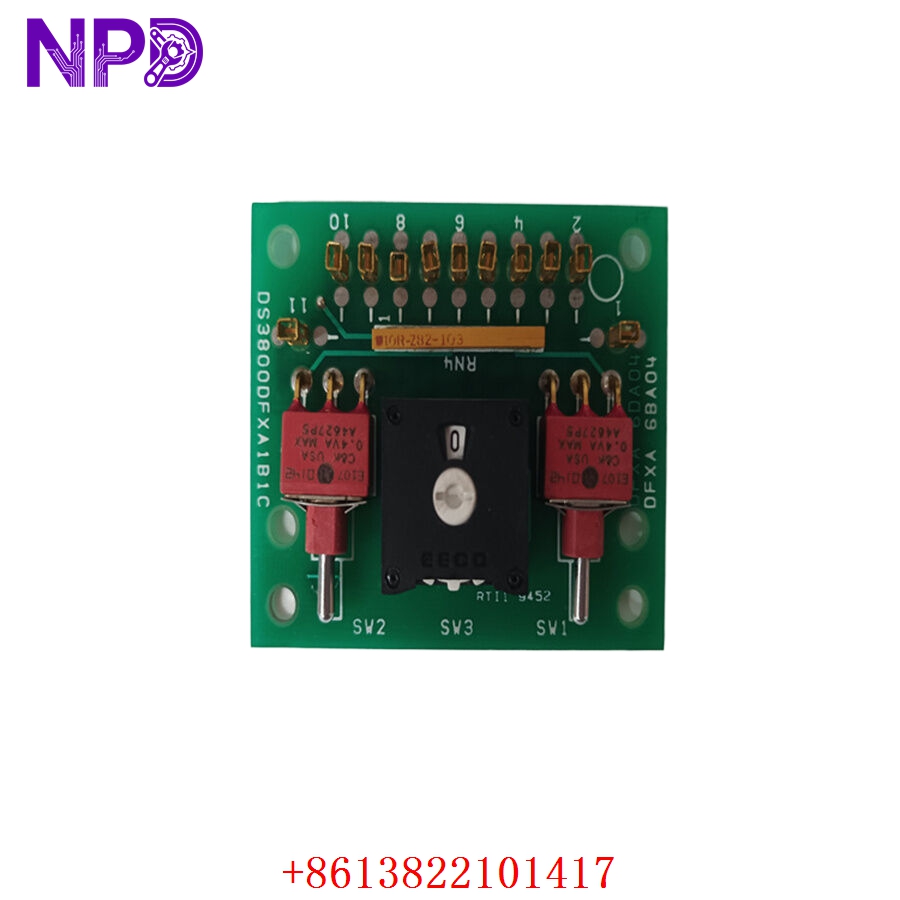

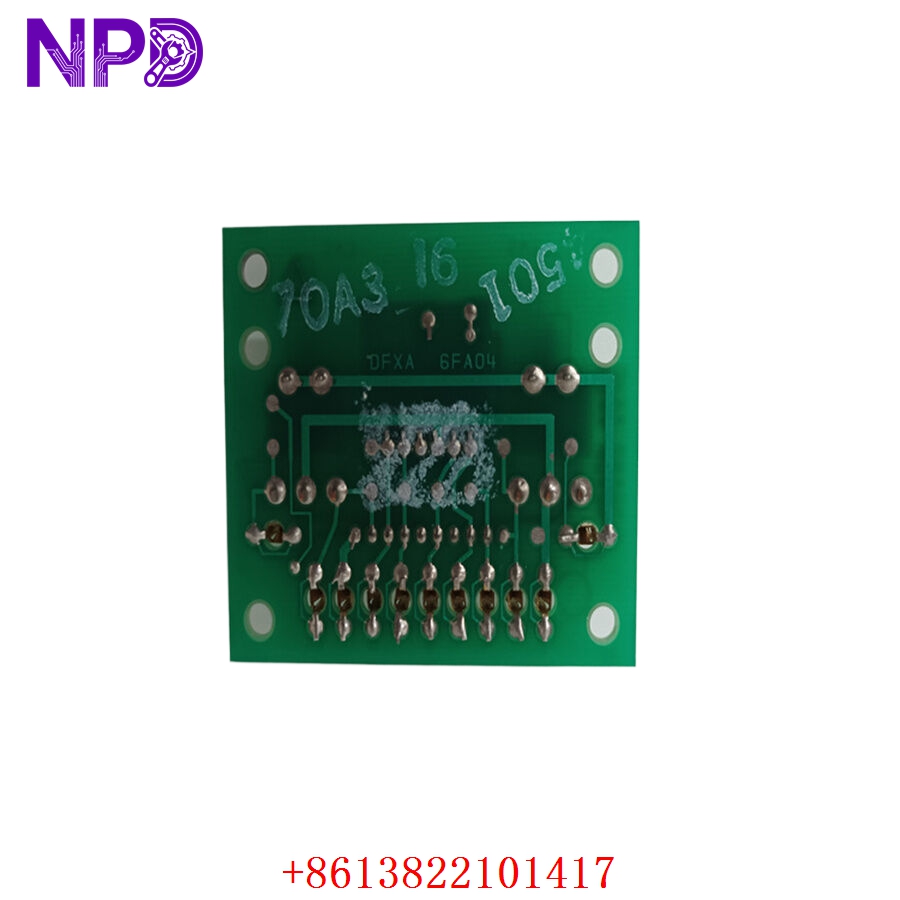

GE DS3800DFXA1B1C Mark IV Speedtronic Field Control Board

Description

• Model: GE DS3800DFXA1B1C
• Brand: General Electric (USA)
• Series: Mark IV Speedtronic System (Widely utilized in utility gas and steam turbine control applications)
• Core Function: Manages critical field signal processing, conditioning, and analog-to-digital interface pathways for turbine control loops, Original New Surplus condition
• Type: Field Input/Output Functional Processing Board
• Key Specs: Modular component revision architecture | High-density multi-pin backplane ribbon links | Integrated test-point nodes

• System Architecture: Optimized explicitly for legacy GE Speedtronic Mark IV modular control bins
• Signal Channels: Multi-channel high-density discrete and analog signal conditioning pathways
• Galvanic Isolation: Integrated onboard optical isolators and surge protection diodes to protect the central processing core
• Interfacing Logic: Designed for dual or triple-redundant (\langle R \rangle \langle S \rangle \langle T \rangle) voting control configurations
• Hardware Revisions: Features progressive engineering updates designated by suffixes 1A, 1B, 1B1, and 1B1C
• Connection Interface: Front-loading high-density pin array ribbon connectors alongside heavy-duty backplane slide-in links
• Diagnostic Hardware: Built-in test points on the outer board edge for real-time oscilloscope or multimeter signal tracing
• Operating Ambient Limits: 0 °C to +60 °C (Within clean-air, non-condensing control cabinet enclosures)

Part 4: Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated Time: 20 minutes)

⚠️ Safety First:

1. Coordinate with plant operations to confirm that the specific turbine train or generation block is placed into a complete cold shutdown. Never extract or insert a field processing board while the turbine control loops are active and armed.
2. Isolate the primary and auxiliary AC/DC distribution power feeds running to the target Mark IV control core bin.
3. Apply standard Lockout/Tagout (LOTO) padlocks and warning tags to the main power isolation breakers.
4. Wait a minimum of 10 minutes to allow the power supply filtering circuits and capacitors within the Speedtronic rack to discharge completely.

Tool Preparation:

• Static-dissipative grounding wrist strap and an ESD-safe workspace mat
• Standard flathead precision instrument screwdriver (2.5 mm blade)
• Phillips screwdriver for locking panel bracket screws
• Fluke 115 Digital Multimeter
• Wire marker tags and a high-resolution smartphone camera

Backup Procedures:

• Access the engineering terminal or logic monitoring station. Take a full snapshot log of the current active parameters, tracking variables, and slot allocations assigned to this specific card position within the control chassis.

Phase 2: Removal (Estimated Time: 10 minutes)

Steps:

1. Verify with your multimeter that all ribbon cables, terminal points, and wire frames connected to the DS3800DFXA1B1C read 0 V AC/DC.
2. Label each high-density ribbon cable with wire tags. Carefully unclip the ribbon locking collars and slide the connectors out. Never pull directly on the ribbon wires themselves.
3. Back out the upper and lower captive screws fastening the card’s mounting brackets to the rack chassis rails.
4. Grasp the edges of the board firmly and slide it straight out along its track lanes to cleanly disconnect the card from the parallel backplane socket connector pins.
5. Guide the board smoothly out of the tracks and slide it directly into an ESD shielding bag.

⚠️ Key Notes:

• Legacy Mark IV boards often utilize small auxiliary jumper wires or piggyback daughterboards. When pulling the old module, check whether any of these add-ons need to be transferred to the new surplus board.

Phase 3: Installation (Estimated Time: 20 minutes)

Steps:

1. ESD Protection: Secure your anti-static wrist strap before opening the sealed antistatic wrap containing the new surplus DS3800DFXA1B1C card.
2. Jumper Configuration Replication: Look closely at the raw green circuit board layer. You must check every physical jumper position, shorting bar, and DIP switch matrix on the new board and set them to match your decommissioned card exactly. These dictate hardware slot addressing, analog scaling, and voting logic configuration.
3. Slide Board In: Align the upper and lower edges of the circuit board within the designated guide tracking lanes of the rack slot.
4. Seat Backplane: Slide the card smoothly inward until it contacts the backplane. Press firmly until the rear connector seats completely into the backplane socket assembly with zero mechanical play.
5. Secure Panel: Tighten the top and bottom screws to lock the card to the rack frame, then re-attach the ribbon cables based on your labels and reference photos.

Self-Check Checklist:

• [ ] Internal jumper arrays and shorting bars match the old card exactly
• [ ] High-density ribbon cables are fully clicked into place with locking collars engaged
• [ ] Board sits flush within the slot guide lanes without binding or bending forces
• [ ] All loose tools, wire clips, and stray hardware components are removed from the rack space

Phase 4: Power-On & Diagnostic Validation (Estimated Time: 25 minutes)

Pre-Power Checks:

• Check for any low-resistance shorts to ground across the rack power lines using your multimeter. Verify that the incoming supply lines fall within standard Speedtronic tolerances.

Power-On Steps:

1. Remove LOTO tags and flip the primary power supply switches back to ON to energize the Mark IV core frame.
2. Observe Initial LED Status: The status LEDs on neighboring cards and the diagnostic indicators should initialize. If the core flags a slot mismatch or communication failure, shut down power immediately to check jumper address mappings.
3. Boot up the engineering workstation terminal. Check the diagnostic logs and ensure the master system registers the new card as healthy and matching its slot profile.
4. Signal Verification: Use a multimeter at the board’s designated edge test points to check the analog scaling and ensure voltage outputs are stable and noise-free.
5. Monitor live data tracking under low-load conditions for 15 minutes before re-engaging automated trip loops. Record the new serial number in the plant asset ledger.

Part 5: Customer Cases & Industry Applications

Case 1: Restoring Field Interface Control on a Gas Turbine Cogeneration Unit

Situation:

A large industrial cogeneration plant relies on a legacy GE Speedtronic Mark IV system to manage a heavy-duty gas turbine frame. During a high-load summer run, an isolation component degraded on the primary field card, part number DS3800DFXA1B1C, causing a critical analog signal processing failure that triggered an unexpected turbine trip.

Task:

The plant lost its main generation line, running up significant capacity penalty fees for every hour the turbine sat dark. Because the Mark IV architecture has been out of production for years, local distributors could not provide immediate hardware support, quoting multi-week lead times to locate and inspect matching legacy parts.

Action:

The plant’s automation engineering lead reached out to our logistics hub. We located a pristine, un-used surplus DS3800DFXA1B1C field card in our sterile inventory. Our laboratory staff initialized the board on our Mark IV test chassis, verified signal processing linearity across all input paths, and dispatched the board via priority overnight air courier.

Result:

• Outage Terminated: The package reached the plant site within 16 hours of the initial fault. The maintenance technicians matched the intricate hardware jumpers and completed installation within 30 minutes.
• Full Recovery: The engineering team re-initialized the system panel. The card booted cleanly without errors, restoring stable field signal conditioning and allowing the generation unit to safely re-sync with the power grid ahead of schedule.
• Customer Voice: “Finding an authentic, un-used processing card for an older Mark IV panel on short notice seemed nearly impossible. Getting it from your stock with verified testing data saved our plant timeline and resolved a major critical incident.”

Case 2: Strategic Spares Backup for a Critical Gas Pipeline Booster Station

Situation:

A remote natural gas compression station relies on multiple legacy Speedtronic control panels to keep its turbine-driven compressor units running continuously. The system depends on stable DS3800DFXA cards to translate analog field variables into voting logic calculations.

Task:

Understanding that a sudden failure of an aging field card would lock the compressor lines—potentially halting gas distribution along the main line—the reliability group wanted to secure reliable backup inventory before global market supplies disappeared. Sourcing worn, refurbished alternatives was rejected due to strict facility reliability standards.

Action:

The procurement team contacted us to secure an authentic, un-used component. We supplied a matching DS3800DFXA1B1C module inside its original, sealed anti-static factory packaging, complete with clean manufacturing numbers, allowing the facility to confirm the pristine condition of the board before adding it to their safety stock.

Result:

• Long-Term Protection: This strategic purchase provided the plant with a reliable, plug-and-play backup component, ensuring they can keep their legacy control systems running smoothly for years to come without requiring an expensive and un-planned full-system upgrade.

Part 6: Frequently Asked Questions (FAQ)

Q1: What do the progressive revision codes like 1A, 1B, 1B1, and 1B1C indicate on this board?

A: These suffixes indicate engineering updates and component enhancements introduced by General Electric over the long lifecycle of the Mark IV series. Suffixes like 1B1C represent later revisions featuring updated trace layouts, improved electrical isolation components, or heat-resistant capacitors. Later revisions are designed to be backward-compatible and can drop directly into slot positions matching older DS3800DFXA baselines.

Q2: Why is it vital to copy the physical jumper arrays and shorting bars from our old board layout?

A: The DS3800DFXA1B1C is a highly versatile field card built to adapt to different roles within the Mark IV control core bin.

The onboard hardware jumpers and shorting bars determine vital properties, including its unique slot identification, signal amplification values, and whether it handles discrete vs analog voltage scaling. Installing a replacement card without matching these settings will cause the master controller to flag a hardware mismatch or interpret field data incorrectly, preventing the system from running.

Q3: Can I hot-swap the DS3800DFXA1B1C card while the control sub-rack is powered and active?

A: No, you should never hot-swap this card while the rack power is active. Pulling an I/O card while the backplane data bus is energized can cause electrical arcing across the high-density connection pins.

This can corrupt data on adjacent communication lines, damage the internal processing chips, or cause connected safety and voting modules to enter an unpredictable fault state. Always shut off auxiliary power to the rack chassis before pulling or installing a board.

Q4: Why buy a New Surplus GE module instead of a cheaper refurbished option online?

A: Refurbished legacy boards are typically salvaged from old, decommissioned power plants. Third-party repair shops often just clean the outer terminals or replace blown input fuses, leaving old internal isolation optocouplers and capacitors intact. These old components are prone to failing unexpectedly when subjected to continuous thermal variations inside a live cabinet.

Our New Surplus units are authentic, un-used modules stored in climate-controlled warehouses. They provide factory-original component lifespans and come backed by a full 12-month warranty, ensuring reliable protection for your machinery without the risks of refurbished hardware.

Q5: How do you verify the signal accuracy of this card before shipping?

A: Every DS3800DFXA1B1C module goes through a rigorous quality check on our specialized Mark IV testing benches before leaving our facility. We slide the card into a live matching sub-rack frame, load standard calibration commands, and map the signal pathways across full scale.
