✨ Product Overview
The GE EX2100 is a state-of-the-art digital excitation control system designed for high-performance generator voltage regulation. Engineered for both new and retrofit installations across steam, gas, and hydro turbine generators, the EX2100 delivers precise field excitation current control to stabilize AC terminal voltage and manage reactive volt-amperes. Featuring modular redundancy and seamless integration with Mark VI/VIe control networks, it provides exceptional uptime, advanced diagnostics, and robust grid stability.
📋 Product Datasheet & Parameters
| Parameter | Specification |
| Target Model | GE EX2100 |
| Brand Manufacturer | General Electric (GE / GE Vernova) |
| Product Type | Digital Excitation Control Regulator System |
| Enclosure Dimensions | Standard multi-cabinet industrial configuration (Control, Auxiliary, & PCM Cabinets) |
| System Weight | Varies by configuration (Modular cabinet architecture) |
| Country of Origin | USA |
| Control Redundancy | Available in Simplex, Dual Control, or Triple Modular Redundant (TMR) layouts |
| Bridge Technology | Silicon-Controlled Rectifier (SCR) Thyristor / Pulse-Width Modulated (PWM) IGBT |
| Nominal Current Range | Regulator configurations supporting up to 35A / 120A, Static systems up to 8000A |
🏭 Application Fields
- Power Plants: High-accuracy automatic voltage regulation (AVR) for massive steam, gas, and hydro generators.
- Grid Interconnection Operations: Implements Power System Stabilizers (PSS) to comply with rigid regional grid-connect parameters.
- Heavy Duty Utilities: Retrofit solutions replacing legacy analog exciters to minimize forced outage risks.
- Co-Generation Plants: Seamless synchronization and load tracking for industrial combined-cycle systems.

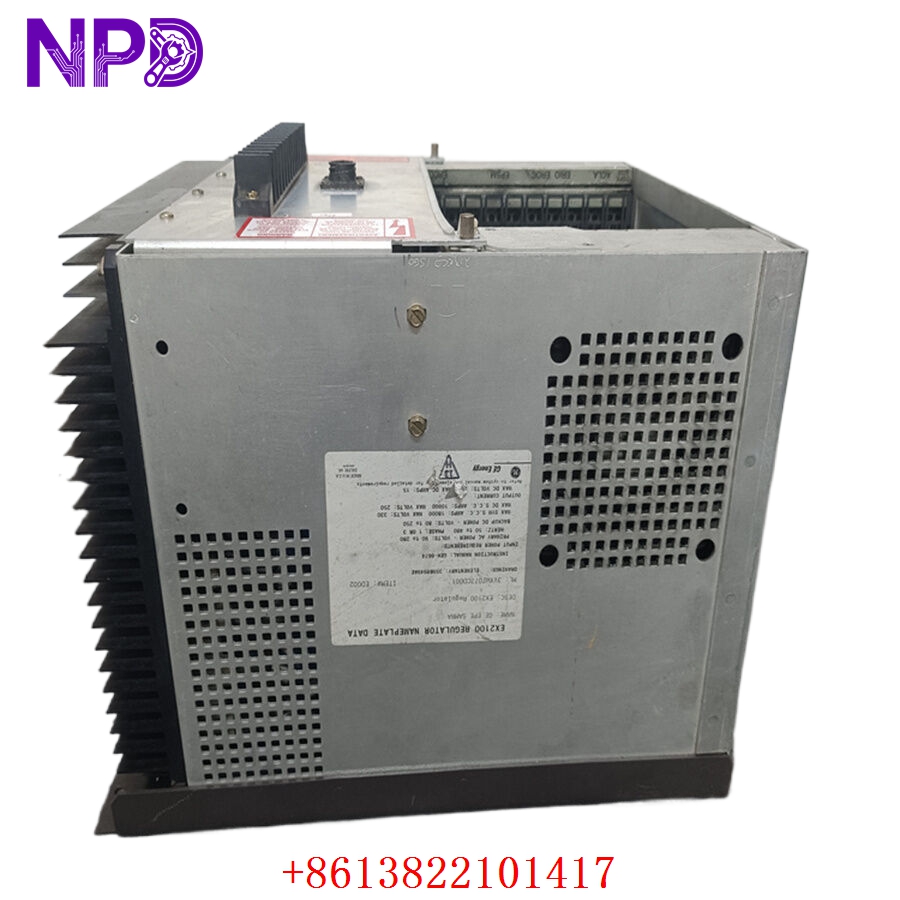

GE EX2100

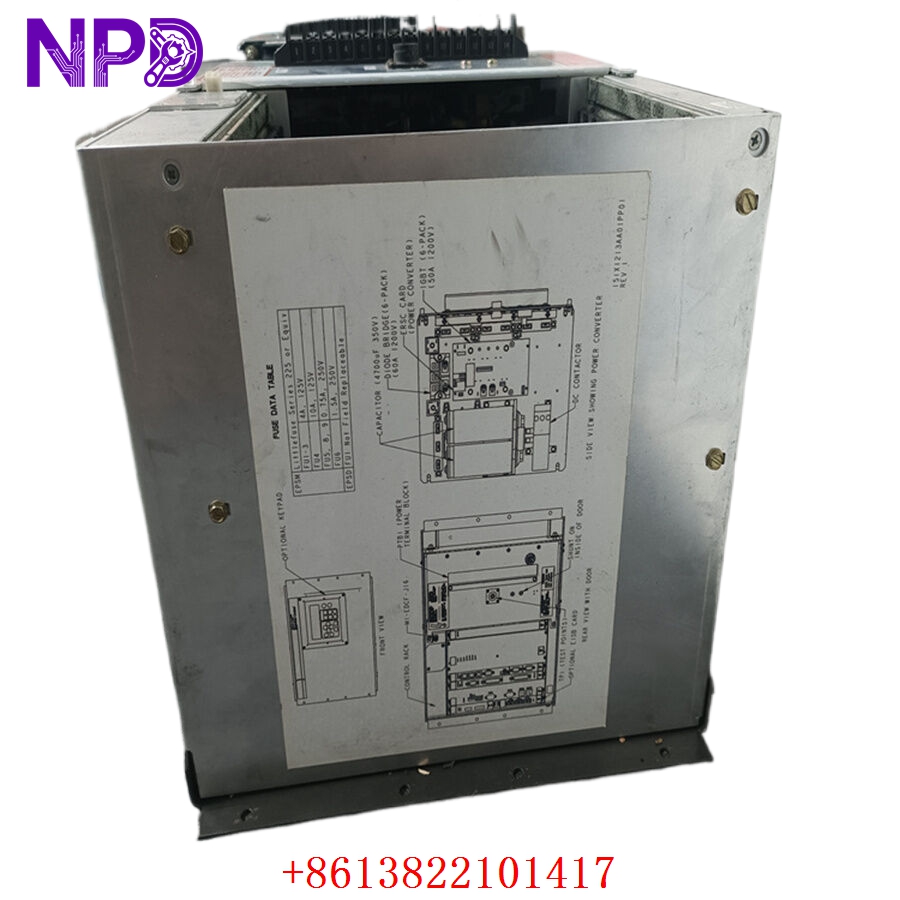

GE EX2100

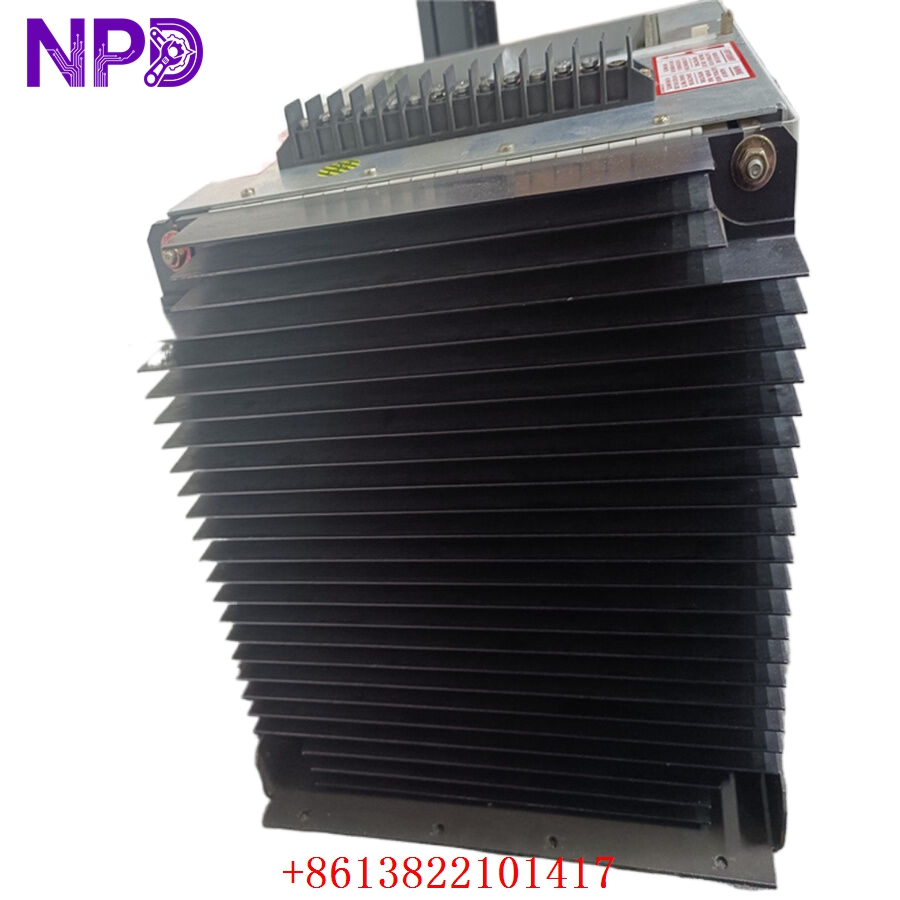

GE EX2100
⚙️ Product Usage Instructions
- Cabinet Safety Isolation: Ensure all primary AC feed lines, potential transformer (PT) loops, and field flashing circuits are physically disconnected and locked out before opening control cabinet doors.
- Modular Board Installation: When servicing internal components (such as DSPX processors or EACF feedback boards), match backplane alignments carefully and confirm proper grounding screw engagement.
- Software Synchronization: Utilize the dedicated ToolboxST software application suite to upload system parameters, check active configurations, and load constant libraries into the controller flash storage.
- Commissioning Loops: Perform offline simulation steps with the integrated generator simulator tool to verify automatic/manual regulator tracking loops before applying real-world load currents.
❓ Q&A: Frequently Asked Questions
Q1: What is the main structural advantage of a Triple Modular Redundant (TMR) EX2100 setup?
💡 A: A TMR configuration deploys three isolated processing nodes and critical I/O paths using a 2-out-of-3 voting architecture. This setup safely eliminates single-point communication failures, significantly improving the Mean Time Between Forced Outages (MTBFO).
Q2: Can the EX2100 be monitored over existing plant-wide automation systems?
💡 A: Yes, the system supports built-in, native data mapping to GE Mark VI/VIe networks via the Unit Data Highway (UDH), and integrates easily with third-party Distributed Control Systems (DCS) via standard Modbus Ethernet or serial connections.
Q3: How does the system handle sudden load rejections or localized grid faults?
💡 A: The system utilizes an advanced inverting thyristor bridge configuration that yields fast-forcing positive and negative voltage corrections, providing immediate field de-excitation or voltage boosts to uphold system integrity.
