Description
- Model: GE IC693MDL231
- Brand: GE (Fanuc / Intelligent Platforms)
- Series: Series 90-30 PLC
- Core Function: Monitors 16 discrete input points for 120 V AC field devices
- Product Type: Digital Input Module
- Key Specs: 16 inputs, 120 V AC, isolated in two groups of 8
- Input Points: 16 points, organized in two isolated groups of 8
- Input Voltage: 120 V AC (nominal)
- Voltage Range: 85–132 V AC, 47–63 Hz
- Input Current: Approximately 12 mA at 120 V AC
- Isolation: Opto-isolated between field side and logic side
- Input Delay: 20 ms (standard for AC noise filtering)
- Status Indicators: 16 LEDs on the front panel showing point status
- Mounting: Plugs directly into the Series 90-30 backplane

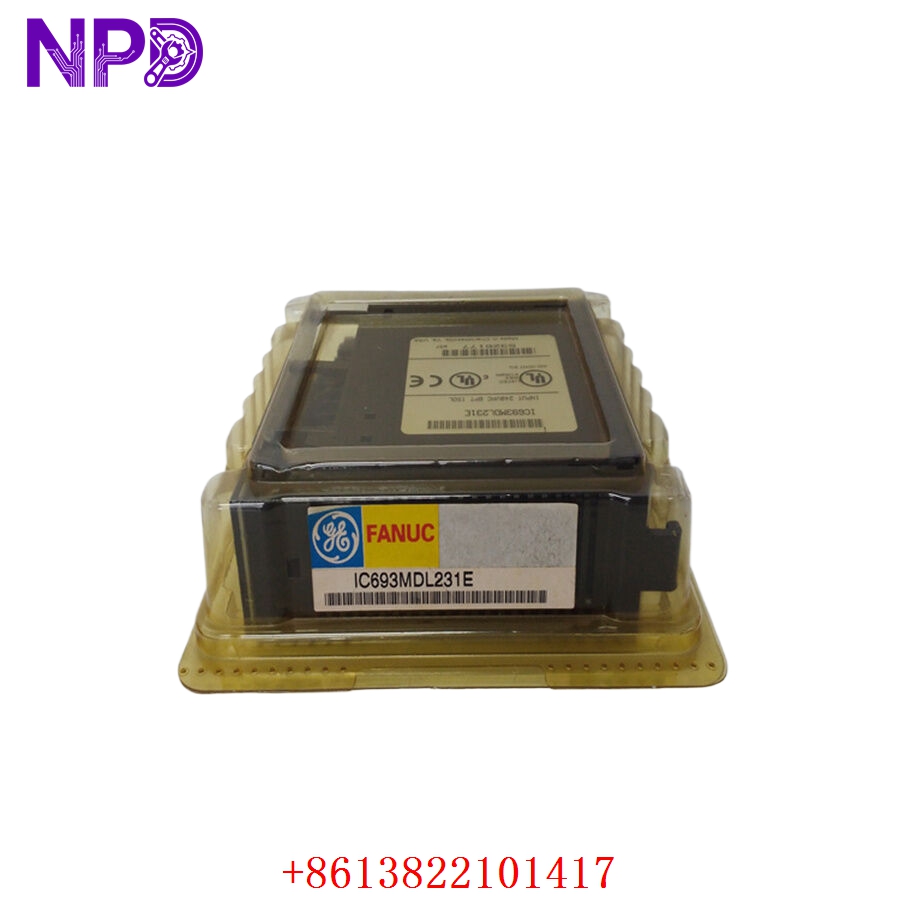

GE IC693MDL231

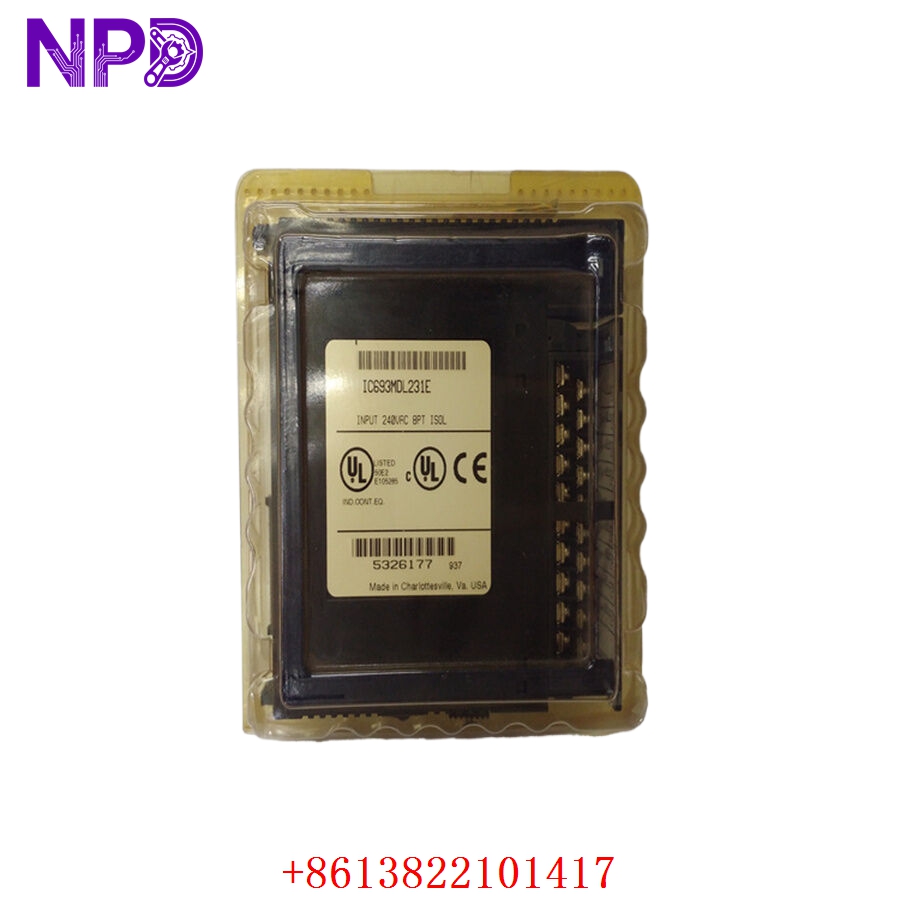

GE IC693MDL231
GE IC693MDL231
Application Scenarios & Engineering Pain Points
The IC693MDL231 is a workhorse in legacy automation, specifically in panels where 120 V AC is the standard control voltage. The primary engineering challenge here is “AC Inrush and Leakage Current.” Because this is an AC module, modern low-power LED indicators or high-impedance proximity sensors can sometimes leak enough current to keep an input “High” even when the switch is open. Engineers often have to install “bleeder resistors” in parallel with these inputs to ensure the PLC correctly registers an “OFF” state.
Typical Application Scenarios:
- Manufacturing – Legacy Assembly Lines Interfaces with heavy-duty limit switches and relay status contacts that operate on 120 V AC logic.
- Water Treatment – Pump Station Logic Monitors high-voltage float switches and motor starter status signals.
- Food Processing – Batching Plants Collects feedback from solenoid valve positions and physical interlock switches.
Case Study: Resolving “Stuck ON” Inputs A municipal water facility reported that a pump was failing to stop because the PLC input remained “ON” even when the physical level switch was open. We identified that they had recently replaced their old incandescent status bulbs with modern LED lamps. The leakage current from the LED pilot light was sufficient to keep the IC693MDL231 input high. Installing a standard 10kΩ/5W bleeder resistor across the input terminals drained the leakage current, immediately resolving the “stuck” input issue.
Troubleshooting Quick Reference
Don’t assume the module is broken just because an input isn’t working. 120 V AC inputs are prone to neutral-side grounding issues.
| Failure Symptom | Possible Cause | Quick Check Method | Recommended Action |
|---|---|---|---|
| LED ON but PLC OFF | Backplane Connection | Inspect backplane pins | Reseat module; check backplane clips |
| Input stuck “ON” | Leakage Current | Measure voltage at input terminal | Install a bleeder resistor |
| Input stuck “OFF” | Blown Opto-isolator | Measure 120 V AC at terminal | Check for transient voltage spikes |
| No Status LEDs | Loss of Control Power | Check L1/Neutral supply to block | Verify external power feed |
Engineer’s Note: ❗ Crucial Advice: Always verify the Neutral reference. Unlike 24 V DC systems where you are switching the “Hot” side, 120 V AC systems can become unpredictable if the Neutral line is not properly referenced to the ground or if it has high resistance due to corroded terminals. Also, never measure AC voltage with a DC-only meter; you’ll get a false reading.
