Description

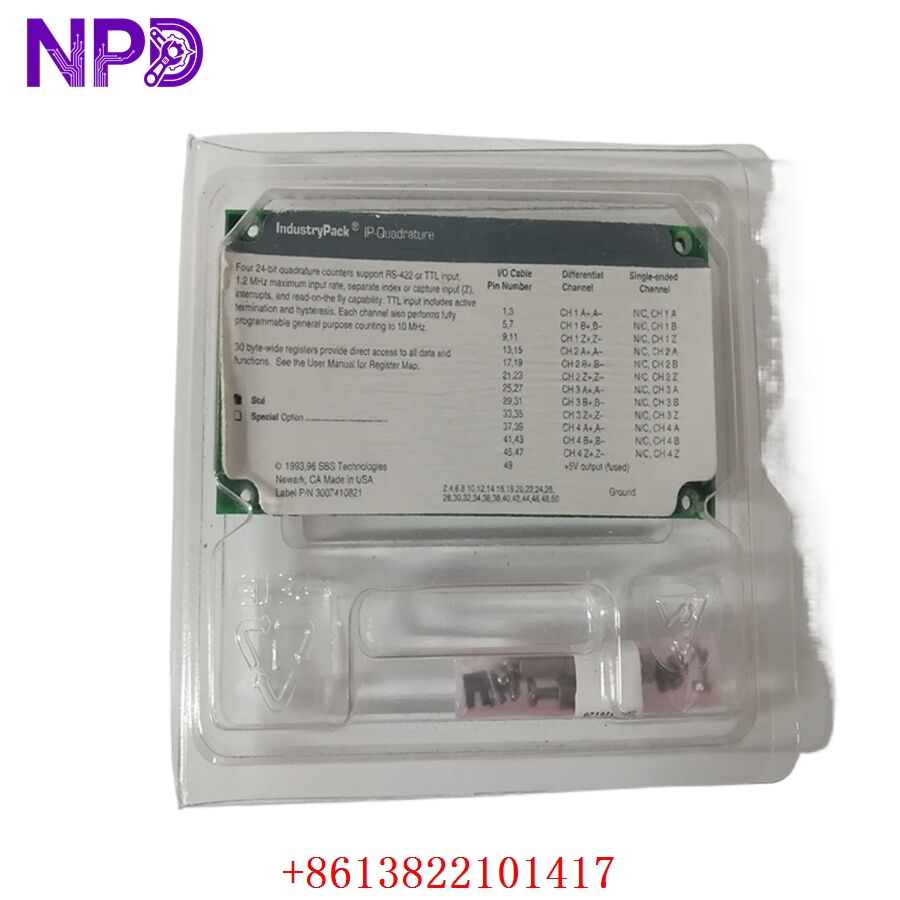

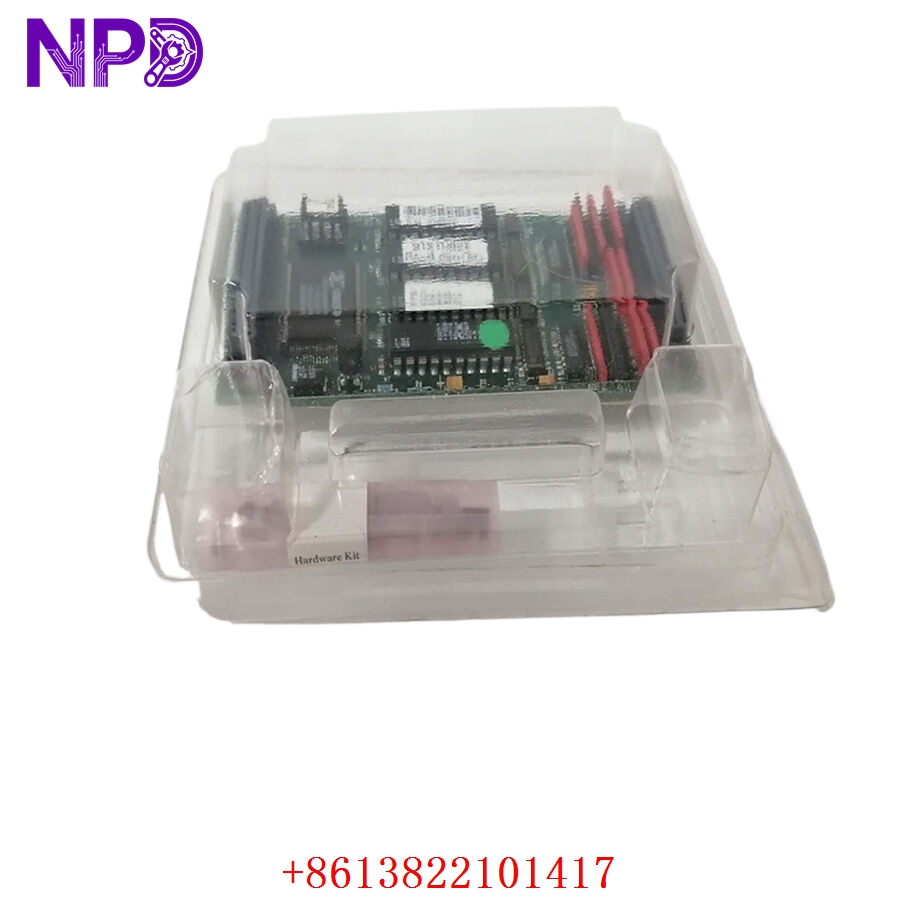

- Model: GE IP-QUADRATURE
- Brand: GE (General Electric / Emerson Automation lineage)
- Series: PACSystems / Series 90-70 VME I/O family
- Core Function: High-speed quadrature encoder signal acquisition for position, speed, and direction control
- Product Type: Encoder Interface / High-Speed Counter Module
- Key Specs: Quadrature A/B/Z inputs up to ~500 kHz–1 MHz counting range 32-bit position counter
- Input Type: Quadrature encoder A/B channels + index (Z) input
- Signal Standard: RS-422 differential or TTL single-ended encoder signals
- Max Input Frequency: Up to ~500 kHz (quadrature mode), higher in counter mode depending configuration
- Resolution: 24-bit / 32-bit position counting (depending rack configuration)
- Counter Modes: X1 / X2 / X4 decoding selectable
- Functions: Position tracking, speed calculation, direction detection
- Channel Count: Multi-channel (varies by backplane configuration)
- Isolation: Galvanic isolation (encoder side vs system backplane)
- Interrupt Capability: Capture, compare, and index-based interrupt events
- Communication: VME backplane (Series 90-70 / RX7i systems)
- Power Supply: Provided via rack backplane (no standalone supply)
- Operating Temperature: 0 °C to 60 °C
- Storage Temperature: -40 °C to 85 °C
- Mounting: GE VME / PACSystems rack slot module
- Diagnostics: Per-channel status, counter overflow, signal loss detection
Application Scenarios & Engineering Pain Points
This module sits in a very specific corner of industrial automation—motion feedback. If you’ve got rotating shafts, linear encoders, or anything moving fast and needing precise position tracking, this is the kind of card doing the “listening.”
In real plants, it rarely gets attention… until something starts drifting.
Where it’s typically used:
- CNC Machinery – Axis Position Feedback
Tracks spindle and servo motor encoder signals to maintain micron-level positioning accuracy. - Conveyor & Packaging Lines – Speed Synchronization
Ensures upstream and downstream conveyors stay synchronized using encoder feedback. - Steel & Metal Processing – Roll Position Control
Measures roller speed and position in harsh EMI environments. - Turbine & Power Systems – Shaft Monitoring
Monitors rotational speed and direction for protection and control loops. - Robotics & Gantry Systems – Motion Coordination
Provides real-time position data for multi-axis motion control.
Real-World Case – “Encoder was fine, but motion drifted”
A packaging plant had intermittent product misalignment on a high-speed labeling machine.
Symptoms:
- Label offset increasing over time
- Encoder feedback looked stable on handheld tester
- PLC showed occasional position jumps
- Mechanical team insisted encoder was “clean and fine”
What actually happened?
The IP-QUADRATURE module had intermittent noise sensitivity on one differential channel. Under high VFD load nearby, A/B signals were getting slight phase distortion—not enough to trigger alarms, but enough to shift counts over long runs.
The tricky part:
- At low speed: everything looked perfect
- At high speed: error accumulated slowly
- No hard fault ever appeared
Fix was simple but not obvious:
- Re-terminated encoder cable with proper shielding
- Moved encoder cable away from drive cables
- Replaced module after confirming signal integrity issues inside input stage
Once replaced, position drift disappeared immediately.
