Description
Product Core Brief
- Model: IS200SDIIH1ADB
- Brand: General Electric (GE Power / GE Vernova)
- Series: Mark VI / Mark VIe Control Systems (Speedtronic Series)
- Product Type: SDI I/O Interface Board (Drive Interface Board)
- Core Function: Acts as a high-density I/O interface between the main processor rack and drive power electronics. It processes feedback signals (voltage/current) and transmits control signals to ensure stable drive performance.
- Supply Status: ⚠️ Obsolete by OEM; premium factory-surplus and legacy inventory available.
- Warranty: 12 Months (From date of shipment)
- Ship From: Shenzhen, China (Domestic: 2-3 days; International: 5-7 days via DHL/FedEx)
Technical Specifications & Architecture
The IS200SDIIH1ADB is a critical component within GE’s Speedtronic ecosystem, engineered to provide high-precision signal conditioning in demanding power-generation environments.
- Functionality: Dedicated Drive Interface (SDI) module optimized for high-speed data acquisition.
- Connectivity: Features multi-pin, high-density backplane headers for seamless integration with power bridge and gate driver boards.
- Hardware Revision Breakdown:
- H1: Standard high-tier performance functional block.
- A: Initial hardware topology design.
- D: Internal circuitry revision.
- B: Final assembly coating revision, ensuring resilience against harsh industrial conditions.
- Environmental Protection: Factory-applied conformal coating (G3 level) to protect sensitive circuits from oxidation, moisture, and corrosive gases.

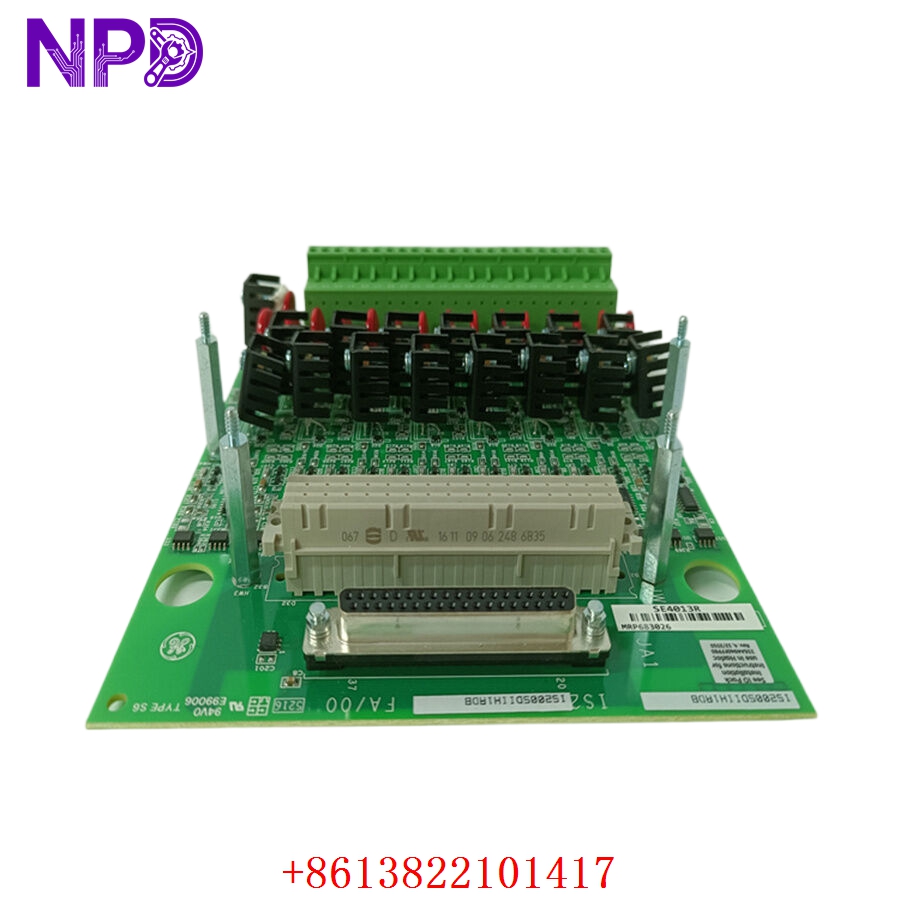

GE IS200SDIIH1ADB

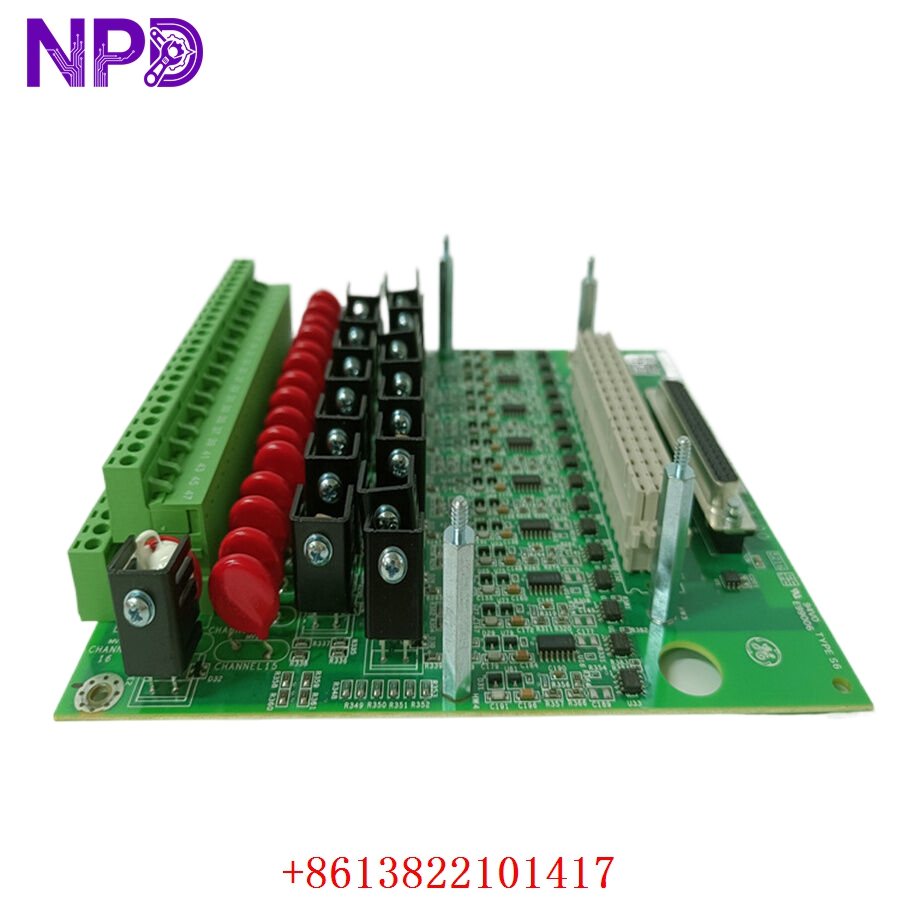

GE IS200SDIIH1ADB

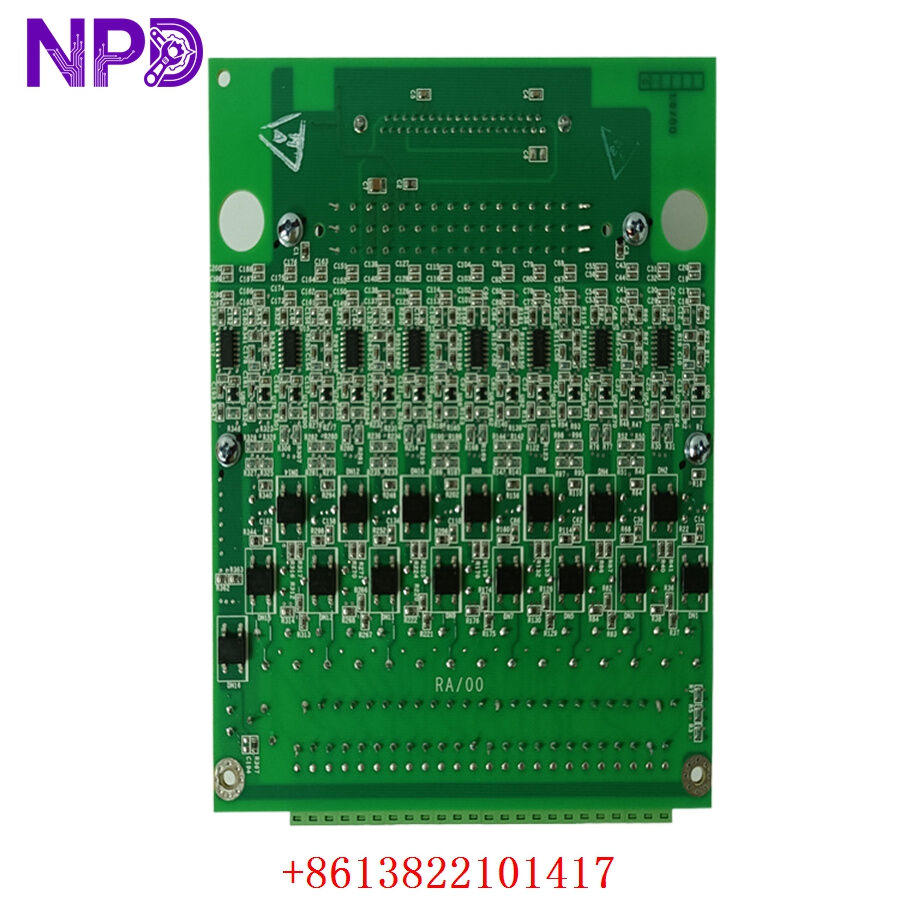

GE IS200SDIIH1ADB
GE IS200SDIIH1ADB
Typical Deployment Scenarios
This interface board serves as the “nervous system” for industrial drive units:
- Gas & Steam Turbine Control: Integrated into EX2100 excitation systems or primary turbine controllers to monitor excitation current and voltage feedback.
- Heavy-Duty Drive Trains: Deployed in rolling mills or large centrifugal compressor drives to facilitate real-time torque and speed loop responses.
- Redundant Architectures: Commonly utilized in Mark VIe redundant configurations, supporting hot-swapping to maintain process uptime during maintenance or hardware failures.
Troubleshooting & Field Diagnostics
❗ SAFETY FIRST: Ensure all power is removed and energy stores (DC bus capacitors) are fully discharged before inspecting or handling control hardware inside drive cabinets.
- I/O Fault Alarms:
- Diagnostic Check: Verify system logs in the Mark VI/VIe configuration software to differentiate between communication timeouts and signal range faults.
- Physical Inspection: Inspect the rear backplane pins of the IS200SDIIH1ADB. Bent or oxidized pins are a common cause of intermittent I/O failure.
- Signal Drift/Instability:
- Root Cause: Often attributed to ground loops. Ensure the control cabinet grounding bus is connected securely to the primary facility ground grid.
- Visual Power Check:
- Inspect front-panel diagnostic LEDs. If all LEDs are dark despite verified power to the rack, the board’s internal DC/DC power conversion stage has likely failed.
Procurement & Installation Advice
- Firmware Compatibility: Verify that the Mark VI/VIe system configuration files are compatible with the specific hardware revision (D/B) of the module.
- Storage Best Practices: Keep the module in a sealed, anti-static moisture-barrier bag. Avoid contact with high-humidity environments to prevent micro-corrosion on the high-density edge connectors.
- Support: If you encounter specific error codes or require integration assistance during a system upgrade, please provide the error log index from your control system, and I will assist you with the diagnostic steps.
