Description
Product Specifications
- Origin: United States (USA)
- Weight: 1.85 lbs (0.84 kg)
- Dimensions: 7.50 x 2.50 x 5.00 inches
- Network Speed: 10/100 Mbps (Full Duplex)
- Port Count: 6 specialized 10/100Base-TX ports
- Voltage Input: 18 to 30 VDC (24 VDC nominal)
- Operating Environment: -30°C to +65°C (-22°F to +149°F)
The GE IS230SNCIH6A is a ruggedized industrial Ethernet switch designed specifically for the Mark VIe and Mark VIeS control systems to manage the IONet (I/O Network). This module serves as the communication backbone for the system’s distributed I/O architecture, routing data between the main controllers and various I/O packs. The “SNCI” series is engineered for high-availability environments, providing deterministic data delivery and low-latency packet switching required for real-time turbine control. Its compact, DIN-rail mountable chassis is built to withstand the high vibration and thermal stress commonly found in power generation enclosures, ensuring that the critical data path between the control logic and field hardware remains uninterrupted.

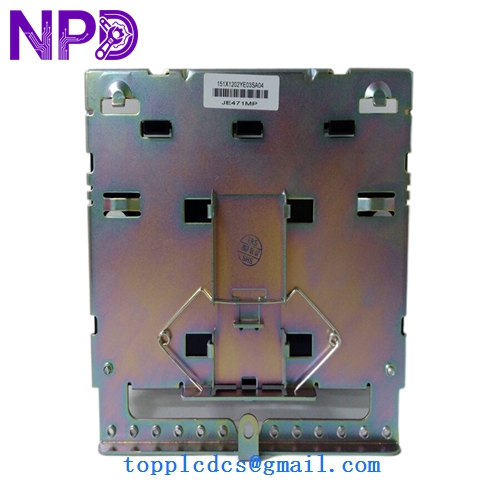

GE IS230SNCIH6A

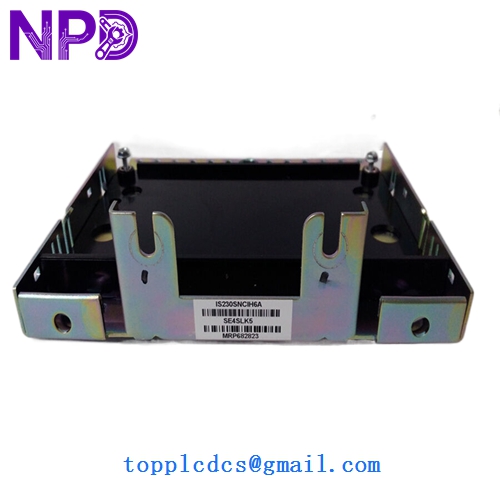

GE IS230SNCIH6A
GE IS230SNCIH6A
Model Comparison: IS230SNCIH6A vs. Similar Models
The IS230SNCIH6A is a 6-port variant within the SNCI family, offering a more compact footprint than the 8-port IS230SNCIH2A or the larger fiber-optic IS230SNCIH3A models. The “H6A” revision is specifically optimized for copper-based Ethernet connections and is often used in smaller control clusters or as a localized switch for a subset of I/O packs. Unlike standard commercial-grade switches, the H6A is strictly “unmanaged” in a traditional IT sense but is fully integrated into the Mark VIe diagnostic suite, allowing the controller to monitor port status and network health directly through the IONet protocol—a feature missing in generic industrial switches.
Operational Guidelines
- Power Redundancy: Ensure the 24V DC input is sourced from a filtered, redundant power supply, as fluctuations in the switch power can lead to “I/O Pack Communication Loss” alarms.
- Cable Selection: Use shielded Category 5e (or better) industrial Ethernet cables with metal-shrouded RJ45 connectors to maintain the system’s electromagnetic compatibility (EMC) rating.
- Port Management: Keep the protective dust caps on any unused ports to prevent environmental contaminants from interfering with the gold-plated contact pins.
- Mounting Integrity: Secure the module firmly to the DIN rail and verify the ground connection through the rail or the dedicated ground terminal to ensure proper transient protection during electrical surges.
