Description
- Model: GE IS230TBAIH2C
- Brand: General Electric (GE)
- Series: Mark VIe Control System
- Core Function: Termination and signal conditioning for analog inputs (4-20 mA, ±10 V)
- Product Type: Analog Input Terminal Board (TBAI)
- Key Specs: 10 Analog Inputs 2 Analog Outputs Simplex Configuration
- Input Channels: 10 differential analog inputs
- Signal Types:
- 4-20 mA (via 250 Ω precision burden resistors)
- ±10 V DC voltage signals
- Output Channels: 2 analog outputs (0-20 mA or 4-20 mA)
- Transmitter Power: Built-in 24 V DC power for field transmitters (fused)
- Compatibility: Supports IS220PAICH1A or IS220PAICH2A I/O packs
- Termination: Two rows of barrier-style screw terminal blocks
- Surge Protection: Integrated metal oxide varistors (MOVs) and high-frequency filtering
- Mounting: Vertical or horizontal DIN rail mounting within the I/O cabinet

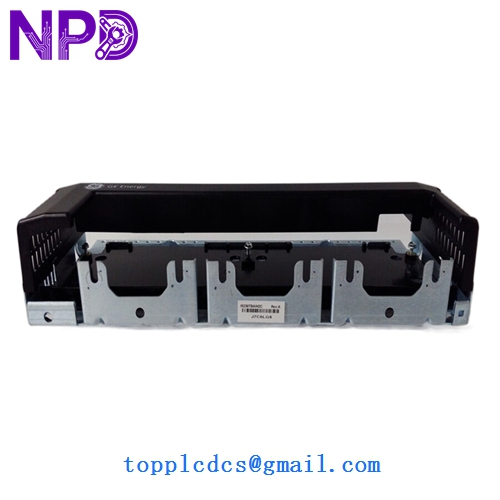

GE IS230TBAIH2C

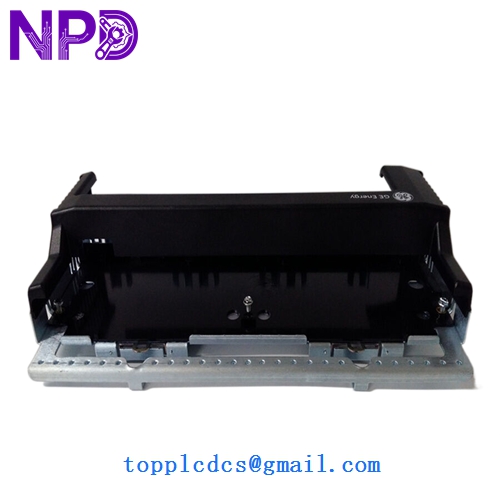

GE IS230TBAIH2C
GE IS230TBAIH2C
Application Scenarios & Pain Points
In the Mark VIe architecture, the IS230TBAIH2C is the physical interface where field wires from transmitters (pressure, flow, level) are landed. Unlike the redundant (TBRH) versions, the “H2C” revision of the TBAI is a Simplex board, meaning it is designed for a single I/O pack connection. The most common pain point with this board is improper loop power wiring. If a field transmitter is shorted, it can blow the internal fuse on the TBAI board, leading to a “Loss of Signal” that might trip a sub-system.
Typical Application Scenarios:
- Fuel Flow Monitoring Gathering 4-20 mA data from flow meters to manage precise combustion ratios in gas turbines.
- Hydraulic Pressure Sensing Monitoring the high-pressure oil systems required for actuator movement and lubrication.
- Tank Level Indication Tracking water, oil, or chemical levels in auxiliary skids.
- Variable Frequency Drive (VFD) Interfacing Sending 4-20 mA setpoints to cooling fans or pump motors via the two onboard analog outputs.
Case Study: The “Common Mode” interference
Background: A power plant in the Asia-Pacific region reported “noisy” signals on all 10 channels of their TBAI board. The pressure readings were oscillating +/- 5%, causing the control valves to “jitter.”
Problem: Upon inspection of the IS230TBAIH2C, we found that the field cable shields were grounded at both the transmitter and the TBAI board. This created a ground loop, introducing 60 Hz electrical noise into the sensitive 250 Ω burden resistors.
Solution: We replaced the board (as the resistors had been stressed) and ensured all shields were “lifted” at the field side and only grounded at the TBAI terminal block.
Result: – Signal Clarity: The analog signals flattened out immediately.
- Valve Life: The actuators stopped jittering, preventing premature seal failure.
- Engineer’s Insight: “The TBAI board is highly accurate, but it’s only as good as your grounding. Always use the dedicated ‘S’ (Shield) terminals on the board.”
Compatible Replacement Models
The TBAI board has several revisions. The “H2C” is the specific hardware revision with barrier blocks and simplex I/O pack headers.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| IS230TBAIH2C | IS230TBAIH2C | ✅ Exact Match | Standard Simplex TBAI. |
| IS230TBAIH2C | IS200TBAIH1C | ⚠️ Software | Older Mark VI version; check mounting and pack compatibility. |
| IS230TBAIH2C | IS230TBAIH1C | ⚠️ Physical | H1C often uses different terminal block styles (Euro-style). |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| Reading stays at 0 mA | Blown 24V Fuse | ✅ High | Measure voltage at the “PWR” and “RTN” terminals. | Replace the onboard fuse (if applicable) or the board. |
| Reading “Pegged” at 20mA+ | Short to Ground | ✅ High | Measure the voltage across the 250 Ω resistor. | Check field wiring for shorts. |
| “I/O Pack Not Ready” | Header Pin Damage | ⚠️ Med | Inspect the D-type connector where the PAIC pack plugs in. | Straighten bent pins or replace board. |
| Erratic “Spikes” | Shielding Issue | ✅ High | Verify shield connection to the “S” terminal. | Re-terminate shields; check for ground loops. |
❗ Pro Tip: The “Resistor Check”
If you suspect a channel is bad, disconnect the field wires and put a 4-20 mA simulator directly on the IS230TBAIH2C terminals. If the I/O pack shows a perfect reading, your problem is in the field wiring. If the reading is still wrong, the 250 Ω burden resistor on the board has likely drifted or failed.
Handling & Installation:
- Connector Alignment: When plugging an IS220PAIC pack onto the IS230TBAIH2C, align the pack carefully. Forcing it can bend the pins on the board, which are difficult to repair.
- Terminal Torque: Use a properly sized screwdriver. Barrier blocks are sturdy, but over-torquing can crack the PCB traces underneath.
- Labeling: Mark VIe systems have hundreds of identical-looking boards. Ensure the board “Letterbug” or physical labels match the documentation before connecting any power.
