Description

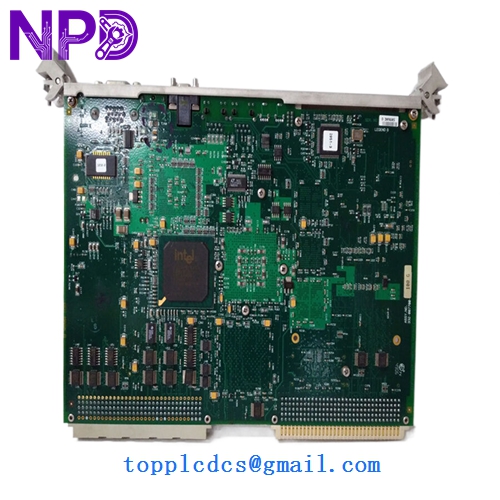

The GE Fanuc / VMIC VMIVME-7700-111000 is a high-performance VMEbus Single Board Computer (SBC) based on the Intel Celeron processor architecture. Designed for demanding industrial and embedded computing tasks, this module provides a robust platform for real-time control, data acquisition, and high-speed communication. It features a versatile array of I/O ports including Ethernet, serial, and parallel interfaces, making it a cornerstone for legacy system maintenance and modern industrial automation upgrades within the VME ecosystem.
Find high-quality computing modules at our GE VMIVME Product Series.
Product Datasheet
Basic Specifications
- Brand: GE Fanuc (formerly VMIC)
- Model Number: VMIVME-7700-111000
- Processor: Intel Celeron (typically 400MHz – 733MHz depending on specific build)
- Bus Interface: VME64 (VMEbus)
- Form Factor: 6U Single Slot
- Memory: Supports up to 512MB SDRAM via SODIMM
Physical Characteristics
- Dimensions: 233mm x 160mm x 20mm (Standard 6U VME)
- Weight: 0.72 kg

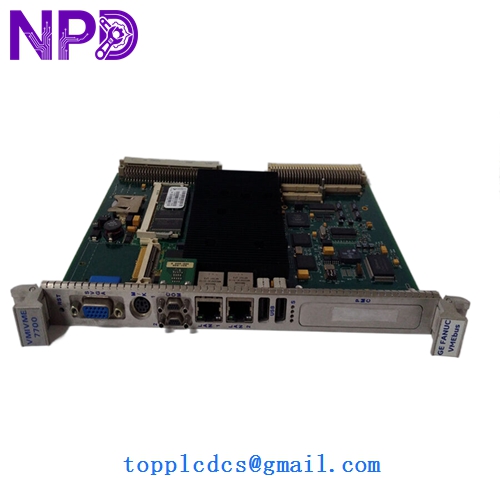

- Front Panel I/O: VGA, Keyboard/Mouse (PS/2), USB, RJ45 Ethernet, COM Ports
- Expansion: PMC (PCI Mezzanine Card) slot for additional I/O
Manufacturing & Logistics
- Country of Origin: USA
- MTBF: High reliability (>100,000 hours in ground-benign conditions)
- Storage Temperature: -40°C to +85°C
- Operating Temperature: 0°C to +55°C (with standard airflow)

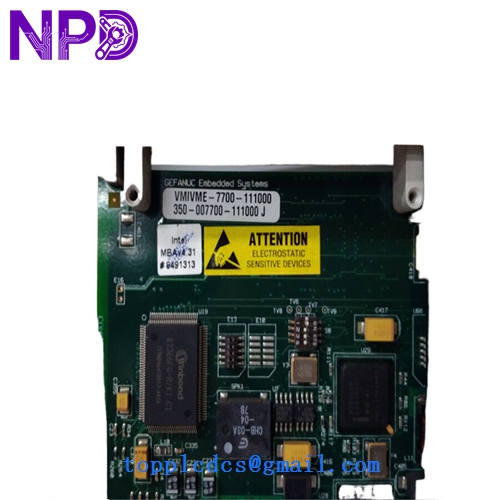

GE VMIVME-7700-111000
GE VMIVME-7700-111000
GE VMIVME-7700-111000
Application Fields
The VMIVME-7700 is widely deployed in Aerospace and Defense for flight simulation and ground control systems. It is also a key component in Semiconductor Manufacturing equipment for wafer handling and process monitoring. In the energy sector, it is found in Power Plant Control Systems and Substation Automation, where VMEbus reliability is required for long-term stability and real-time responsiveness.
Product Instructions
To install the VMIVME-7700, ensure the VME chassis is powered off. Align the board with the card guides and firmly seat the module into the backplane connectors until the injector/extractor handles click into place. The 111000 variant is typically configured for standard BIOS operation; however, ensure any onboard jumpers for CMOS reset or VME bus mastering are set according to your specific system requirements. When installing a PMC expansion card, ensure it is securely fastened with screws before inserting the SBC into the rack. Operating system support includes Windows NT/2000, VxWorks, and Linux.
Comparison of Similar Models
The VMIVME-7700-111000 is the standard Celeron-based model with a balanced I/O set. In comparison, the VMIVME-7700-2XXXXX series often utilizes higher-speed Pentium III processors for increased computational power. The VMIVME-7807 is a later generation offering Dual Gigabit Ethernet and faster memory speeds. Compared to the VMIVME-7697, the 7700 series provides improved thermal management and a more modern BIOS structure, supporting larger hard drive capacities and faster peripheral throughput.
Frequently Asked Questions (Q&A)
Q: Does this module support USB booting? A: Depending on the specific BIOS version, the VMIVME-7700-111000 generally supports booting from USB-ZIP or USB-CDROM, though standard IDE/CompactFlash booting is more common for this generation.
Q: Can I upgrade the RAM on this board? A: Yes, the board features a standard SODIMM slot. However, it is highly sensitive to memory speed and density; using PC100/PC133 non-ECC SDRAM is usually required for successful recognition.
Q: What is the purpose of the PMC slot? A: The PMC (PCI Mezzanine Card) slot allows you to add specific functionality—such as additional network ports, specialized communication (MIL-STD-1553, ARINC 429), or high-speed data acquisition—without taking up an extra VME slot.
