Description
- Model: HIMA F3 DIO 8/8 01 (Part No. 982200425)
- Brand: HIMA (Germany)
- Series: HIMatrix F3 Series
- Core Function: Safety-related digital input/output module for SIS/ESD systems
- Condition: Brand New Surplus (Original New), Non-refurbished
- Type: Combined Digital I/O Module
- Key Specs: 8 Digital Inputs / 8 Digital Outputs 24 V DC SIL 3 Certified
- Input Channels: 8 Digital Inputs (Safety-related)
- Output Channels: 8 Digital Outputs (Safety-related)
- Operating Voltage: 24 V DC (-15%…+20%)
- Current Consumption: Max 0.5 A (without load)
- Output Current: 0.5 A per channel (Short-circuit proof)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Response Time: < 10 ms
- Certification: TÜV, CE, UL
- Mounting Type: DIN Rail / F3 Compact System
- Operating Temperature: 0 °C to +60 °C
- Protection Rating: IP20

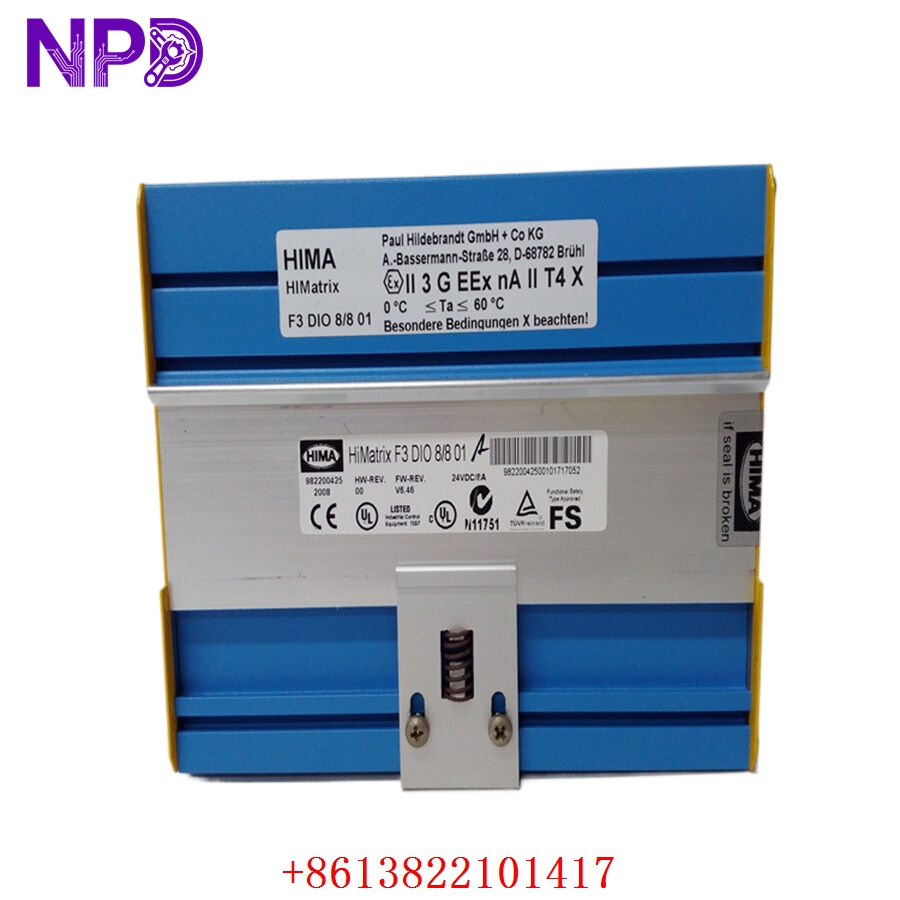

HIMA F3 DIO 88 01 982200425

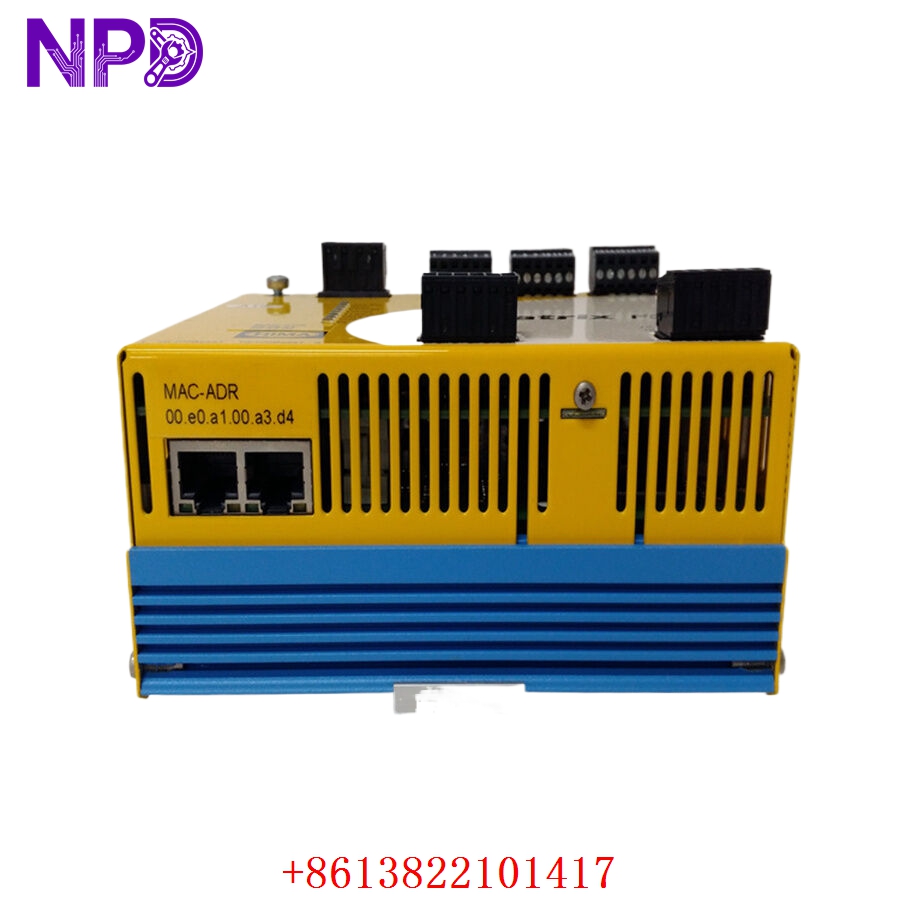

HIMA F3 DIO 88 01 982200425

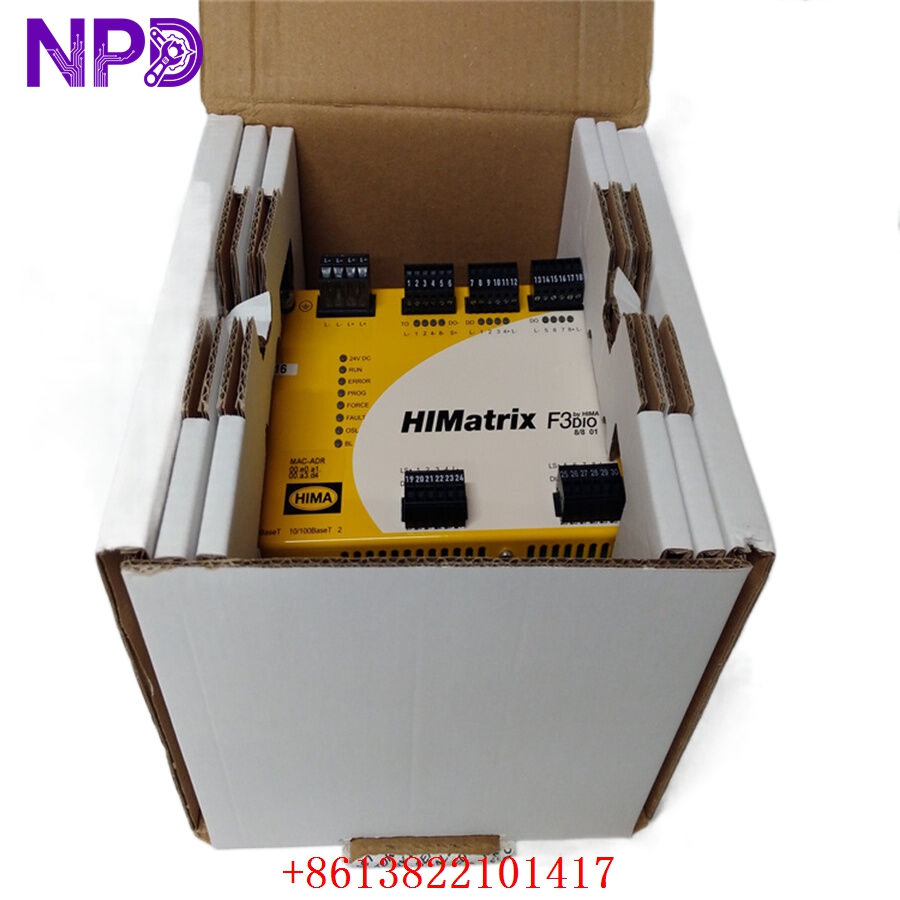

HIMA F3 DIO 88 01 982200425
HIMA F3 DIO 88 01 982200425
Installation & Configuration Guide
Phase 1: Preparation (15 Minutes)
⚠️ Safety First:
- Verify the SIS (Safety Instrumented System) is in a forced or bypassed state where allowed, or ensure the plant is in a safe shutdown mode.
- Confirm you have the correct project backup in HIMA SILworX or ELOP II Factory.
- Use a grounded wrist strap. HIMA modules are highly sensitive to ESD (Electrostatic Discharge) which can cause latent failures.
Tools & Records:
- PH1 screwdriver and a small flat-head for terminal tension.
- Take a clear photo of the 982200425 module’s side label and the rear dip switches if visible.
- Tag every wire. In safety systems, a crossed wire isn’t just a bug; it’s a hazard.
Phase 2: Removal (10 Minutes)
- Power Down: Disconnect the 24 V DC supply to the F3 chassis.
- Wiring: Loosen the screw terminals. Gently pull the wires back. Do not yank; the insulation on older wires can be brittle.
- Extraction: Release the top and bottom DIN rail clips. Pull the module straight out from the backplane bus.
- Inspection: Check the backplane connector for dust or bent pins. Use canned air if needed—never touch the pins with your fingers.
Phase 3: Installation (20 Minutes)
- Address Setting: Look at the old module. Are there rotary switches or DIP switches on the side? Set the new F3 DIO 8/8 01 to match exactly. This defines the hardware ID in the safety loop.
- Seating: Slide the module onto the rail. You should feel a firm “click” as the bus connector seats.
- Wiring: Reconnect based on your tags. Tighten to approximately 0.5 N·m.
- Final Check: Ensure no stray wire strands are touching adjacent terminals.
Phase 4: Commissioning & Testing (30 Minutes)
- Cold Check: Verify 24 V DC polarity before flipping the switch.
- Power Up: Observe the LEDs.
- RUN (Green): Should flash then stay solid once the CPU recognizes it.
- ERR (Red): If solid, there is a hardware mismatch or internal failure.
- Software Sync: Open your HIMA diagnostic tool. The module should appear “Online.” If the version (e.g., 01) differs slightly from the project, you may need to update the hardware configuration in the software.
- Loop Test: Force one input and verify the logic responds. In my experience, testing the physical output relay click is the best way to ensure the 982200425 is fully integrated.
Customer Cases & Industry Applications
Case 1: Emergency ESD Restoration in Offshore Platform
Situation: A North Sea oil platform experienced an “Internal Fault” on a HIMA F3 DIO 8/8 01 module controlling emergency shutdown valves. Task: The platform was operating on a temporary bypass, which is a major safety violation if prolonged. The OEM quoted 14 weeks for a replacement due to the “Obsolete” status of the F3 series. Action: The customer contacted us for a New Surplus unit. We pulled a 982200425 from our climate-controlled vault, performed a 24-hour load test on our HIMA test rig, and dispatched it via DHL Express. Result: The part arrived in 4 days. The system was restored to SIL 3 compliance immediately, avoiding a mandatory production halt that would have cost $250,000 per day.
Case 2: Life Extension for a Chemical Plant
Situation: A chemical plant in Southeast Asia has been running on HIMatrix F3 systems since 2010. The management plans to migrate to a newer platform in 2028. Task: They needed to ensure zero downtime for the next 2 years but found that the F3 DIO 8/8 01 was becoming increasingly hard to find in “New” condition. Action: We provided a “Strategic Stock” proposal, supplying three 982200425 modules at a fixed price. Result: Six months later, a power surge damaged two I/O cards. Because the spares were on-site, the MTTR (Mean Time To Repair) was only 45 minutes instead of weeks of searching the secondary market.
Frequently Asked Questions (FAQ)
Q: Is the 982200425 the same as the F3 DIO 8/8 01? A: Yes. “F3 DIO 8/8 01” is the functional model name, while “982200425” is the specific HIMA part number. When ordering, always go by the part number to ensure hardware compatibility.
Q: Can I replace a version 01 with a version 02? A: Usually, HIMA modules are backward compatible, but in safety applications (SIL 3), any change in hardware version may require a change in the software configuration (CRC check). Honestly, it’s best to stick to the exact version 01 unless you are prepared to re-verify the safety loop.
Q: Why should I buy “New Surplus” instead of a cheaper repaired unit? A: In a safety system, “cheap” is dangerous. A repaired module might have replaced capacitors or relays, but it hasn’t undergone the original HIMA factory stress testing. Our New Surplus units have zero hours of operation, meaning the internal components (like the safety relays) have their full life expectancy ahead of them.
Q: Do you provide a test report? A: Absolutely. We can provide photos of the module powered up on our test rack, showing the LED status and communication handshake. We don’t just ship boxes; we ship verified hardware.
Q: What if the module doesn’t work when it arrives? A: We offer a 12-month warranty. If the module has a hardware defect (and isn’t damaged by incorrect wiring on-site), we will replace it or issue a full refund. We’ve been in the industrial spare parts business long enough to know that our reputation is worth more than a single sale.
