Description
- Model Number: F6217
- Series: HIMA HIMatrix / F-Series
- Signal Type: 8-Channel Analog Input (0/4…20 mA)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Resolution: 12-bit
- Input Impedance: 250 Ohm
- Power Supply: 24V DC
- Country of Origin: Germany
- Weight: 1.98 lbs (0.90 kg)
- Dimensions: 7.9 in x 1.6 in x 6.3 in (20.0 cm x 4.0 cm x 16.0 cm) The HIMA F6217 is a high-reliability analog input module designed for safety-critical applications within the HIMAX and H41q/H51q systems. Each of its eight channels is equipped with independent galvanic isolation and comprehensive self-diagnostic capabilities, ensuring precise monitoring of pressure, temperature, and flow transmitters in SIL 3 loops. This module is engineered for extreme durability and rapid fault detection, making it a standard choice for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems where continuous signal integrity is non-negotiable.
-

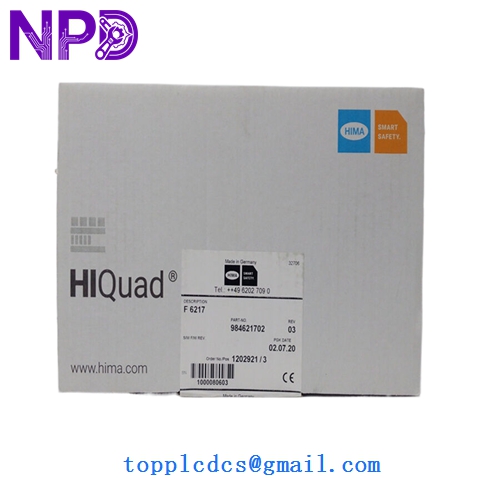

HIMA F6217
HIMA F6217
Model Comparison
The F6217 is specifically optimized for current-loop signals (4-20 mA), distinguishing it from the F6214, which is typically used for voltage inputs or different measurement ranges. Compared to the newer HIMAX X-AI series, the F6217 utilizes the classic HIMA rack-mount form factor, which is essential for maintaining and expanding existing legacy safety installations. While both the F6217 and F6215 offer 8-channel monitoring, the F6217 features enhanced HART pass-through capabilities or specific filtering characteristics that allow for more stable readings in environments with high electromagnetic interference.
Operation Tips
- Safe Isolation: Before replacing a module, ensure the 24V DC system power is disconnected to prevent transient spikes from affecting the safety BUS communication.
- Redundancy Configuration: In redundant (1oo2 or 2oo3) architectures, verify that the module address switches on the backplane correspond exactly to the software configuration in ELOP II or SILworX.
- Shielding and Grounding: To achieve SIL 3 accuracy, analog signal cables must be shielded, with the shield grounded only at the cabinet entry point to prevent ground loops.
- Diagnostic Monitoring: Monitor the “ERR” LED during startup; if it stays red, check the input loop for open-circuit or short-circuit conditions, as the module automatically locks out faulty channels to maintain safety.
