Description

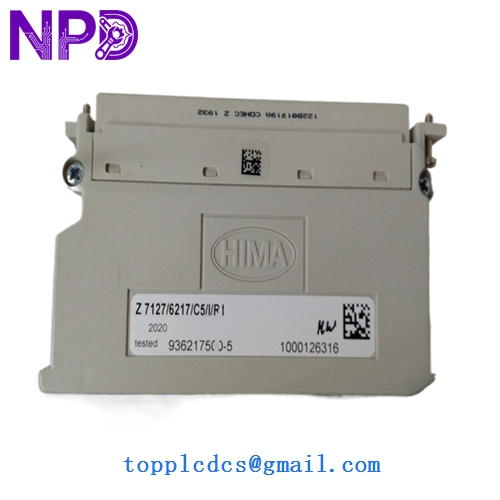

The HIMA Z7127 936217500-5 is a specialized prototyping and expansion module designed for the HIMA Planar4 safety system. As a key component of HIMA’s hard-wired automation platform, the Z7127 allows for the customization of safety logic and the integration of specific electronic circuits within a SIL 4 certified environment. This board is engineered to maintain the ultra-high integrity requirements of the Planar4 family while providing engineers with the flexibility to implement bespoke monitoring or signal-conditioning solutions.
Explore more safety-critical modules at our HIMA Product Collection.
Product Datasheet
Basic Specifications
- Brand: HIMA
- Model Number: Z7127
- Part Number: 936217500-5
- System Family: Planar4
- Module Type: Prototyping / Universal Expansion Board
- Safety Integrity Level: SIL 4 (when used within Planar4 architecture)
Physical Characteristics
- Dimensions: 100mm x 160mm (Standard Eurocard 3U)
- Weight: 0.22 kg
- Grid Pattern: standard 2.54mm (0.1 in) for component mounting
- Connection: 48-pin DIN 41612 type F connector
Manufacturing & Logistics
- Country of Origin: Germany
- Compliance: TUV Certified, IEC 61508
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
HIMA Z7127 936217500
HIMA Z7127 936217500
HIMA Z7127 936217500
Application Fields
The Z7127 is primarily utilized in Petrochemical Refineries and Nuclear Power Plants where standard off-the-shelf logic modules may not satisfy unique sensor requirements. It is used for Emergency Shutdown Systems (ESD), Burner Management Systems (BMS), and High-Pressure Protection Systems (HIPPS). Its primary role is to house custom hardware-based safety logic that requires the physical reliability of a hard-wired system rather than software-based PLC logic.
Product Instructions
To utilize the Z7127, components must be soldered onto the board’s grid according to the specific safety circuit design. The board should then be inserted into a free slot in the Planar4 subrack. Ensure that the 48-pin connector is properly aligned before seating the board. Since the Planar4 system relies on physical wiring for logic, all connections between the Z7127 and other modules must be established via the backplane or front-panel wiring. After soldering custom components, it is mandatory to perform a full functional safety loop test to ensure the circuit behaves as intended under fault conditions.
Comparison of Similar Models
The Z7127 (936217500-5) is a blank prototyping board for custom circuit builds. In contrast, the Z7128 is a similar form-factor module that typically comes with pre-defined monitoring circuits. Compared to the HIMA F series (such as the F8650), which are microprocessor-based HIMax/HIQuad modules, the Z7127 belongs to the Planar4 family which uses discrete electronic components to achieve SIL 4, making it immune to software failures or cyber-attacks. The 936217500-5 revision offers improved copper trace density over older legacy versions.
Frequently Asked Questions (Q&A)
Q: Can I use the Z7127 to build a custom relay output? A: Yes, the board is designed to accommodate various components including relays, resistors, and transistors, provided they meet the voltage and current specifications of the Planar4 backplane.
Q: Does using a custom circuit on this board void the SIL 4 certification? A: The board itself is part of a SIL 4 system, but any custom circuit built upon it must be independently validated and documented to ensure the overall safety loop maintains its required integrity level.
Q: Is the Z7127 hot-swappable? A: While Planar4 modules are physically robust, it is generally recommended to power down the subrack or the specific safety loop before removing or inserting prototyping boards to prevent unintended signal trips
