Description
Product Specifications
- Origin: Japan
- Weight: 0.88 lbs (0.40 kg)
- Dimensions: 7.1 inches x 1.4 inches x 4.3 inches
- Module Type: Analog Input/Output for H-Series PLC
- Signal Range: Supports standard 4-20 mA and 1-5 VDC configurations.
- Resolution: High-precision 12-bit A/D and D/A conversion for accurate process control.
- Compatibility: Designed for use with Hitachi H-series (H-200, H-252, etc.) Programmable Logic Controllers.
The Hitachi LPF240A is a versatile analog processing module that enables H-series PLC systems to interface with variable field instruments like pressure transmitters, flow meters, and control valves. By integrating both input and output capabilities into a single card, it optimizes rack space while providing the CPU with reliable, digitized process data. The module features robust noise filtration and electrical isolation between channels, which prevents signal cross-talk and protects the central controller from electrical transients in industrial environments.

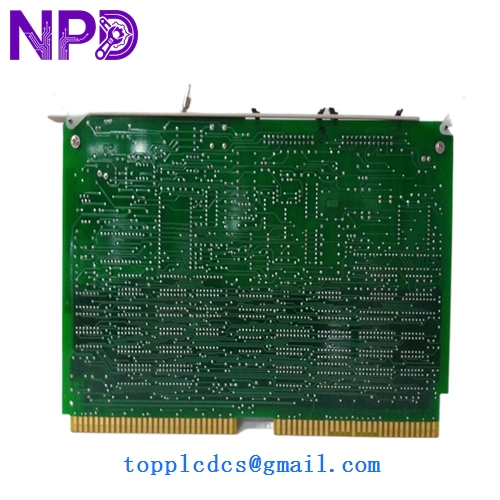

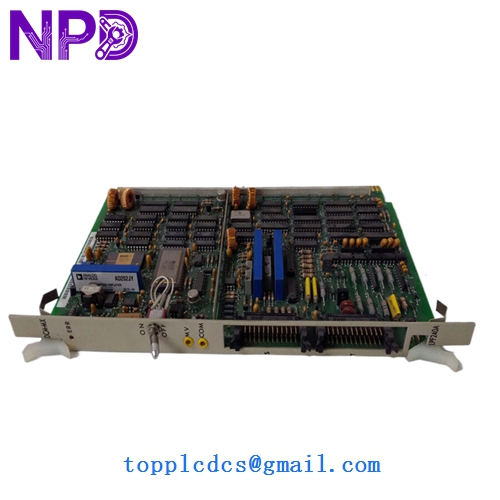

HITACHI LPF240A
HITACHI LPF240A
HITACHI LPF240A
Model Comparison: LPF240A vs. Similar Models
The LPF240A is distinguished by its combined Input/Output (I/O) architecture, whereas models like the LPI240 (Input only) or LPO240 (Output only) are dedicated to a single signal direction. While the standard LPF240 base model provides foundational analog conversion, the LPF240A version often features refined internal circuitry that offers better thermal stability and lower signal drift over extended operating periods. This makes the “A” revision the preferred choice for precision-heavy applications such as chemical dosing or temperature-sensitive manufacturing where consistent calibration is critical.
Operational Guidelines
- Slot Configuration: Before installation, verify the module’s address settings via the onboard DIP switches to ensure it does not conflict with other analog cards in the rack.
- Shielding: To maintain 12-bit accuracy, use shielded twisted-pair cables for all analog loops and ensure the shield is grounded at only one end to prevent ground loops.
- Terminal Wiring: Double-check the polarity of the 4-20 mA loops; reversing the leads can cause “Underflow” errors in the PLC registers and potentially trip the module’s protection fuse.
- External Power: Ensure the 24 VDC loop power supply is stabilized and ripple-free, as poor power quality can directly affect the linearity of the analog-to-digital conversion.
