Description
The Horner APG HE693ADC409A-22 is a high-density, 16-channel analog input module designed for seamless integration into GE Fanuc 90-30 Series PLC systems. Providing a versatile interface for industrial process control, this module converts real-time analog signals—such as voltage or current from transmitters, sensors, and potentiometers—into digital values that the PLC processor can utilize for logic execution. Engineered to serve as a drop-in replacement or high-capacity upgrade for native GE 90-30 I/O modules, the HE693ADC409A-22 combines precision signal conditioning with robust industrial-grade circuit protection, making it an essential component for complex process monitoring and automation loops.
Product Specifications
- Model Number: HE693ADC409A-22
- Manufacturer: Horner APG (compatible with GE Fanuc 90-30)
- Product Series: 90-30 Series PLC
- Function: 16-Channel Analog Input Module
- Dimensions: 127 mm x 32 mm x 102 mm (Standard 90-30 single-slot format)
- Weight: 0.30 kg (0.66 lbs)
- Country of Origin: United States (USA)
- Input Signal Ranges: ±10 V, 0-10 V, 4-20 mA, 0-20 mA (software configurable)
- Resolution: 12-bit (1 in 4096 counts)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Isolation: Optically isolated from the PLC backplane

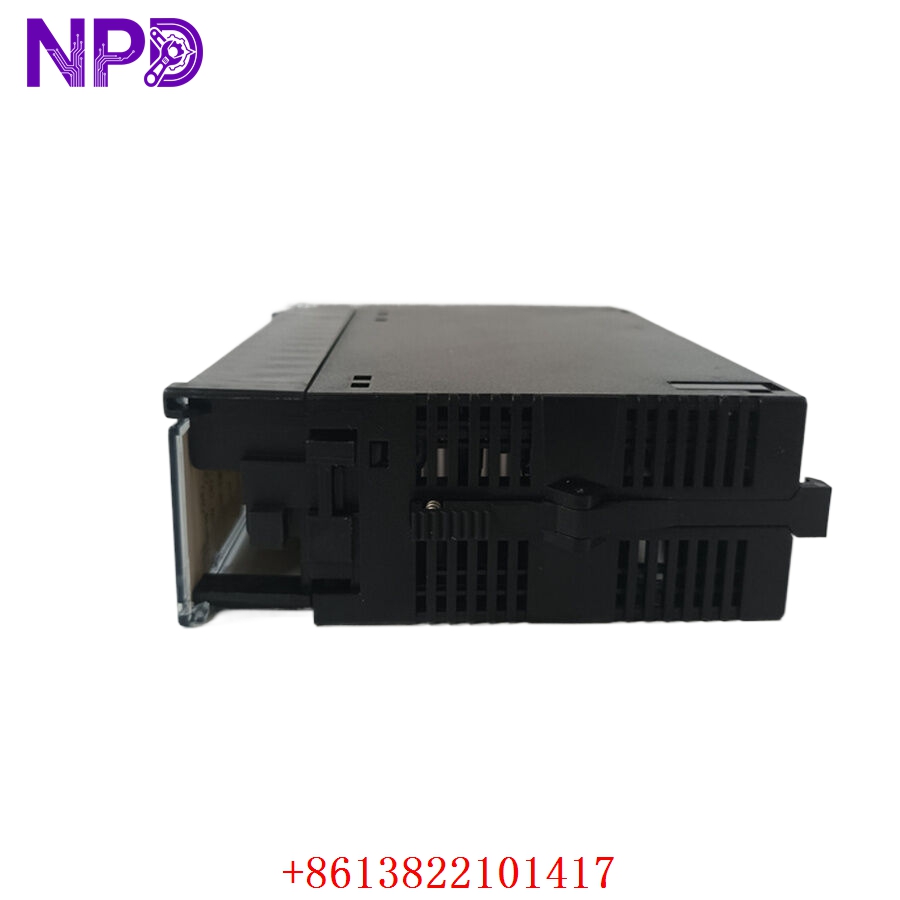

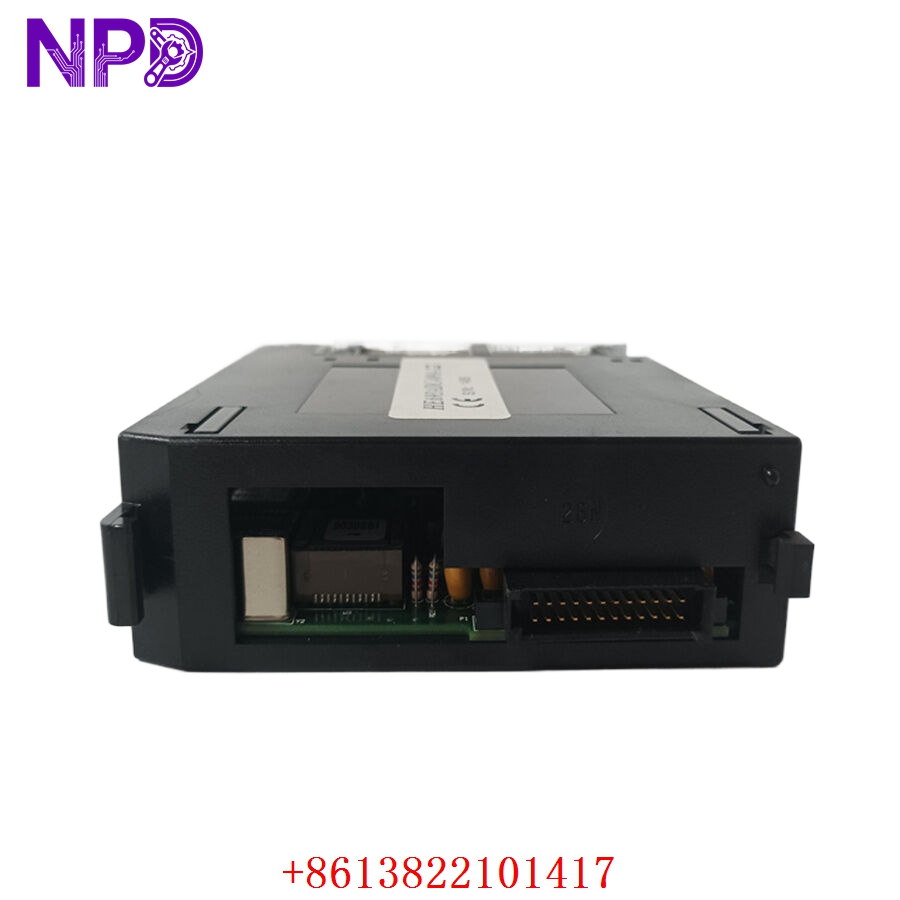

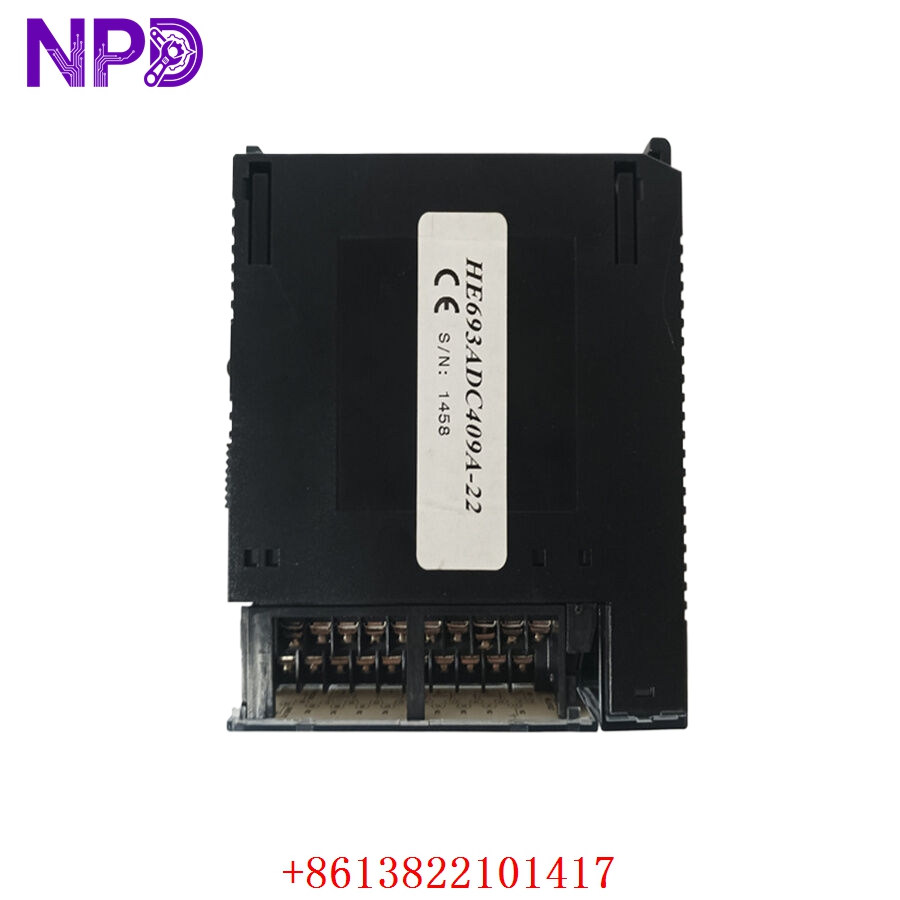

GE HE693ADC409A-22
GE HE693ADC409A-22
GE HE693ADC409A-22
GE HE693ADC409A-22
Applications
- Process Control & Monitoring: Tracks inputs from pressure, flow, and temperature transmitters in chemical, food/beverage, and pharmaceutical processing lines.
- Building Automation: Gathers environmental data from humidity sensors, HVAC damper positioners, and lighting control interfaces.
- Manufacturing & Robotics: Monitors feedback from laser sensors, ultrasonic distance gauges, and linear encoders on assembly machinery.
- Power & Utility Infrastructure: Used in small-scale distribution and monitoring panels to track voltage levels and current draw from auxiliary utility equipment.
Product Usage Instructions
- Slot Configuration: The module can be installed in any available I/O slot in a 90-30 series baseplate. Align the module with the card guides and insert it until the backplane connector is fully engaged. Secure the module with the top and bottom captive screws.
- Wiring and Termination: Field wiring should be connected to the module’s removable terminal block. Ensure that all current loop signals are connected with correct polarity. For voltage signals, use shielded twisted-pair cables to minimize electromagnetic interference (EMI) in high-noise factory environments.
- Software Setup: In your Proficy Machine Edition or VersaPro project, add the module to the I/O configuration tree as an “Analog Input” module. Define the channel type (Voltage or Current) and input range within the module’s hardware configuration parameters.
- Calibration: Verify signal scaling in the PLC software (e.g., mapping 4-20mA to 0-32000 engineering units). If necessary, perform a zero and span calibration using a precision signal generator to ensure reading accuracy within the target industrial process range.
Frequently Asked Questions (Q&A)
- Q: Is the HE693ADC409A-22 fully compatible with GE 90-30 programming software? A: Yes, it is designed as a drop-in functional equivalent. It appears to the PLC backplane exactly like the native GE IC693 series analog modules, allowing it to be configured using standard Proficy Machine Edition or legacy GE programming software without requiring special drivers.
- Q: Can I mix voltage and current signals on the same module? A: Yes, the module supports independent configuration per channel. You can configure individual channels for different signal types (e.g., Channel 1 as 4-20mA for a pressure sensor, Channel 2 as 0-10V for a positioner) through the module configuration software.
- Q: How does this module protect itself against accidental high-voltage surges? A: The input circuitry features transient voltage suppression and current-limiting resistors. While these protect against minor electrical transients, it is still recommended to use external signal conditioners or isolators for field signals exposed to high-voltage environments to prevent permanent hardware damage.
- Q: What is the significance of the “A-22” suffix in the model number? A: The suffix denotes the specific hardware revision level. It relates to the manufacturing batch, firmware compatibility, and internal component updates. Always ensure the revision matches or exceeds the requirements of your existing control system documentation.
