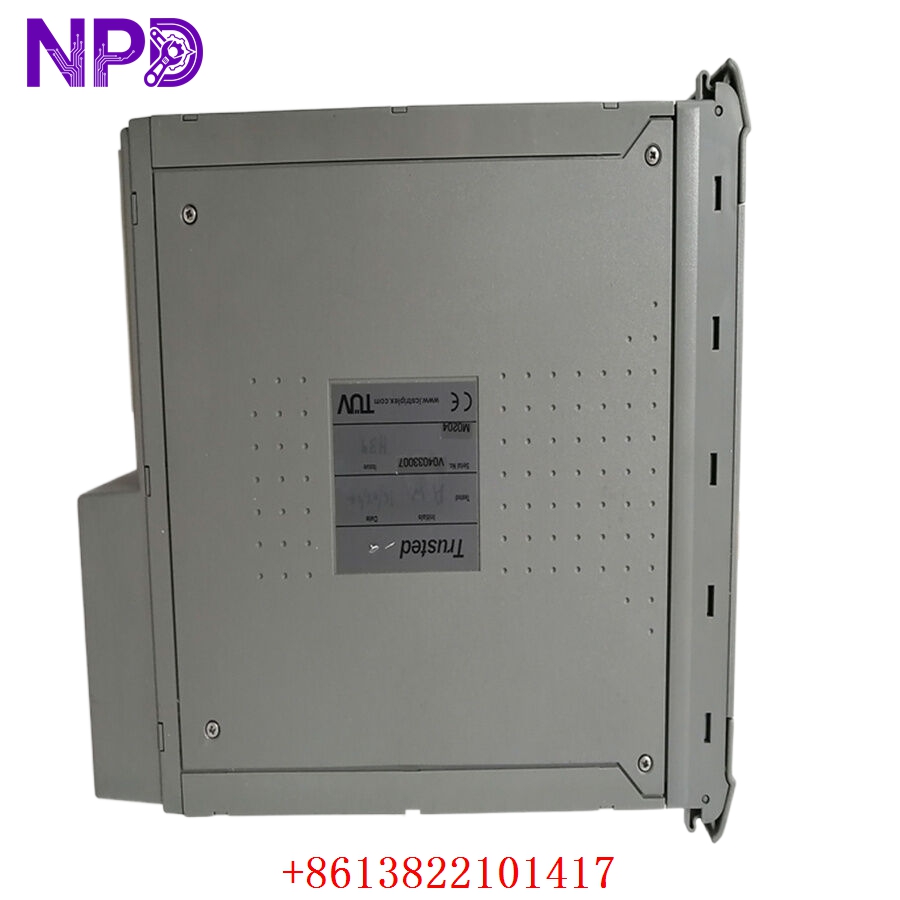

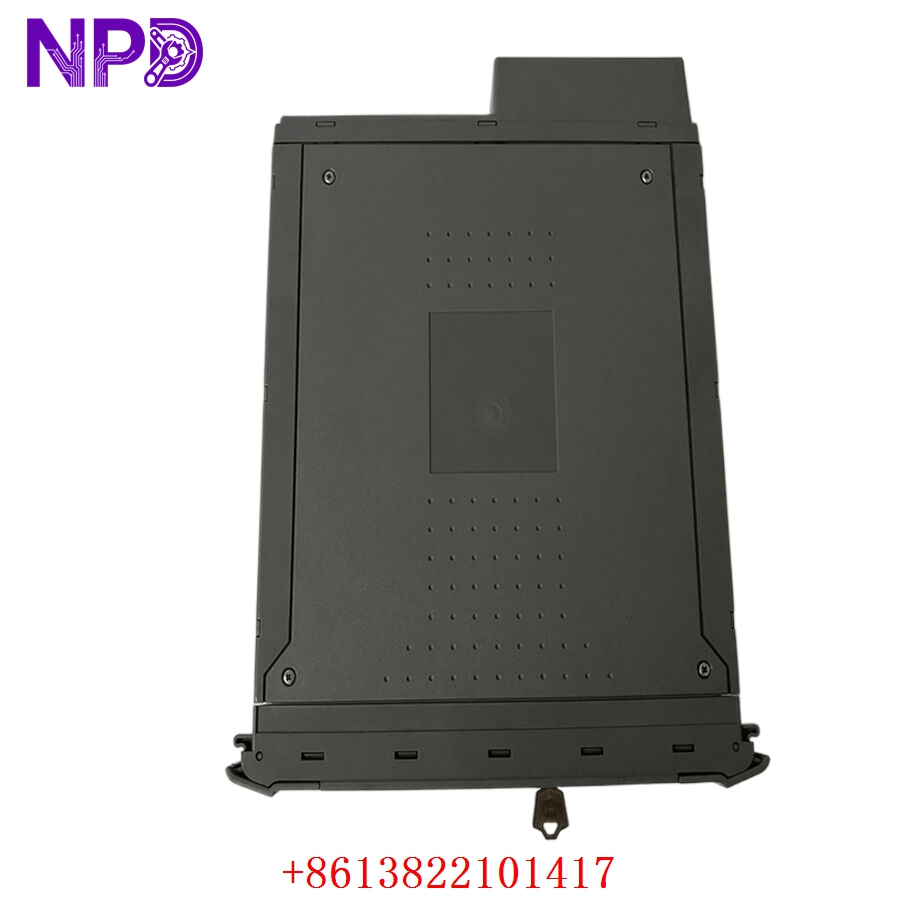

ICS Triplex T8110B Trusted TMR Main Processor Module

Description

• Model: ICS Triplex T8110B
• Brand: ICS Triplex (A Rockwell Automation Company)
• Series: Trusted TMR Safety System
• Core Function: High-integrity, fault-tolerant main processor module for critical control
• Condition: Brand New Surplus (Pristine warehouse stock, never used, no terminal wear)
• Product Type: Main Controller CPU Module
• Key Specs: 24 V DC system power | Triple Modular Redundant (TMR) | SIL 3 Rated | 16 MB DRAM

ICS TRIPLEX T8110B

ICS TRIPLEX T8110B

ICS TRIPLEX T8110B

• Architecture: Triple Modular Redundant (TMR, 3-2-0 voting logic mechanism)
• Main Processors: 3 x Motorola PowerPC series running in hardware lock-step
• System Power Supply Input: 24 V DC nominal (Operating window: 20 V to 32 V DC)
• Power Dissipation: Approximately 75 W to 80 W under full operational load
• Memory Capacity: 16 MB EDO DRAM, 2 MB Flash memory, and 128 kB NVRAM
• Time Synchronization Ports: Integrated IRIG-B002 and IRIG-122 signaling inputs
• Local Event Logging: Dedicated Sequence of Events (SOE) buffer tracking up to 1,000 local events
• On-board Communication: 1 x RS232 front-panel diagnostic port, 2 x RS422/RS485 isolated ports
• Safety Rating: Certified up to IEC 61508 SIL 3 capability for emergency shutdown loops
• Physical Footprint: 266 mm x 93 mm x 303 mm (Standard Trusted rack slot size)

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated Time: 20 minutes)

⚠️ Safety Critical Warning:

1. The T8110B acts as the core brain of an active Safety Instrumented System (SIS). Never attempt a module replacement without securing an authorized plant bypass permit and alerting the operations control room.
2. Ensure that the redundant backup processor slot is fully functional and synchronized before executing any maintenance actions on the active slot.
3. Verify that your engineering laptop is loaded with the correct version of the Trusted Toolset software suite.

Required Tools & Protective Gear:

• Calibrated static-dissipative ESD wrist strap connected to a verified equipment ground
• Slotted terminal tool (2.5 mm tip)
• Handheld digital multimeter (e.g., Fluke 87V)
• Antistatic transport pouch

Data Retention Step:

• Connect to the active controller via the Toolset software and perform a complete upload of the runtime binary, memory allocations, and current configuration profiles. Save these files immediately to a secure off-site server.

Phase 2: Removal (Estimated Time: 10 minutes)

1. Verify Standby Status: Check the front-panel status matrix to confirm that the companion processor is actively handling 100% of the voting load.
2. Release Retaining Hardware: Loosen the top and bottom mechanical faceplate screws by turning them counterclockwise.
3. Disengage Backplane Pins: Swing the extraction levers outward simultaneously to unlock the high-density edge contacts from the triplicated inter-module bus (IMB) backplane.
4. Careful Extraction: Slide the module straight out of the slot tracks. Do not rock the module side-to-side, as this can twist the gold-plated connector pins. Place the removed module inside an anti-static bag immediately.

Phase 3: Installation (Estimated Time: 15 minutes)

1. Static Protection: Unpack the new surplus T8110B module only while wearing your grounded ESD wrist strap.
2. Inspect the Hardware Rev: Cross-reference the firmware build and jumper settings on the side circuit cards against your original project specification documents.
3. Insert the Core: Push the replacement module smoothly into the guide channels. Firmly press the unit home until the backplane connectors fully mate and the injection levers snap flush into place.
4. Secure Fixing Screws: Tighten the faceplate thumb screws to a torque rating of approximately 0.4 N·m to guard against industrial rack vibrations.

Phase 4: Power-On & Testing (Estimated Time: 30 minutes)

The Startup Protocol:

1. If applicable, switch on the dedicated line breaker for that rack sector. The module will automatically run through an internal self-test cycle.
2. Monitor the Faceplate Display: The diagnostic LEDs will perform an initialization sequence. Watch for the primary system health indicator to transition to solid green.
3. Initiate Processor Sync: Open the Toolset diagnostics workspace. Command the newly installed T8110B processor to run its state-synchronization sequence. This copies the active memory map from the operating companion processor into the new unit without dropping the application runtime.
4. Confirm TMR Security: Ensure that the voting mode returns to a stable 2-out-of-3 (2oo3) status matrix across the engineering display.
5. Log the new hardware serial number, date of replacement, and the commissioning technician’s credentials inside the plant’s preventative maintenance logbook.

Customer Cases & Industry Applications

Case 1: Offshore Gas Platform—Hot-Swap Under Extreme Conditions

Situation:

An active gas production platform in the North Sea relied on an ICS Triplex Trusted 9100 system running a T8110B main processor configuration to handle master platform emergency safety matrices. One of the internal logic channels suffered a memory parity fault, dropping the system down to a degraded 2-1-0 voting condition.

Task:

The platform was a single hardware failure away from a catastrophic total shutdown trip. A complete production halt would drop output revenues by nearly $220,000 per day. Sourcing parts through standard vendor distribution routes carried a quoting timeline of over 12 weeks due to the legacy status of the system architecture.

Action:

The logistics manager reached out to our depot to confirm immediate physical stock availability. We pulled an original new surplus T8110B processor out of our storage vaults, completed an overnight backplane diagnostic loop test on our system validator, and dispatched the hardware via a priority helicopter delivery service directly out of Aberdeen.

Result:

• Total Elapsed Time: Under 48 hours from the initial call to platform arrival.
• Outcome: The maintenance crew executed an online hot-swap, the processor caught up with the active data stream within minutes, and the TMR architecture restored full fault-tolerant security without causing a single second of production downtime.

Case 2: Steel Mill Power House—Preemptive Backup Sourcing

Situation:

A heavy manufacturing facility in the Midwest operated a dedicated blast furnace gas recovery system managed by an older Trusted panel containing a T8110B processor. The OEM announced that engineering support windows were scaling down, recommending an immediate migration to modern controller hardware.

Task:

The plant engineering group estimated the cost of a full physical modernization overhaul at roughly $310,000, which required a scheduled 3-week outage window. The plant asset strategy dictated keeping the current furnace configuration online for another 6 years before a complete facility redevelopment, making a major upgrade financially impractical.

Action:

Instead of accepting an expensive system overhaul, the asset manager worked with us to build a strategic on-site inventory reserve. We supplied a pristine, factory-sealed surplus T8110B processor module along with its corresponding power interface connections to act as a localized insurance policy.

Result:

• Capital Saved: Avoided an immediate $310,000 engineering expenditure.
• Long-Term Protection: The mill has a zero-hour backup unit ready in their stockroom. This allows them to run their existing assets safely until the scheduled 2032 lifecycle plan, balancing capital efficiency with total infrastructure protection.

Frequently Asked Questions (FAQ)

Q1: Does the T8110B support online hot-swapping if the safety system is running?

A: Yes. The Trusted platform is designed so that a single T8110B main processor slice can be pulled out and replaced while the system is under power, provided that the companion processor modules are operating in a healthy status and have fully synchronized memory maps. The remaining channels will continue executing your safety logic profiles without a glitch.

Crucial Warning: Never remove a processor module if the system diagnostic tools show a current fault or voting imbalance on the companion slots. Doing so will cause an immediate plant trip.

Q2: What is the technical difference between the standard T8110 and the T8110B variant?

A: The T8110B revision includes critical, upgraded internal component configurations designed to improve thermal dissipation profiles and extend operational longevity compared to the older base models. Additionally, the “B” variant introduces optimized clock synchronization parameters for applications using IRIG-B time distribution networks across complex, plant-wide sequence-of-events tracking arrays.

Q3: Why should I pay more for Brand New Surplus instead of buying a refurbished T8110B module?

A: Refurbished components in the safety instrumentation space are a risky compromise. A refurbished module is almost always a used unit that ran for years in an industrial setting until an internal component failed, after which someone soldered on a patch repair.

Q4: How do you verify the functionality of such an advanced TMR processor module?

A: We use an explicit, data-driven validation pipeline before any module leaves our facility:

[Incoming Serialization Validation] -> [Microscopic Trace Examination] -> [Trusted Rack Boot-Up Tests] -> [Memory Sync Execution Logging]

We do not just look for a green power light. We mount the T8110B into a live Trusted chassis assembly, confirm communications across all three internal PowerPC processor cores, execute a complete state-synchronization cycle, and review the background error logs to confirm the hardware handles lock-step voting parameters without internal logic delays.

Q5: Can your firm provide matching chassis assemblies or communication modules for the T8110B?

A: Yes, we regularly stock related components for the Trusted architecture, including the T8100 Main Processor Chassis, the T8151B Communications Interface, and various TMR digital and analog I/O terminal slices. If you are trying to resolve a complex stock-out gap or require an unlisted part number, please contact our logistics team to check our uncataloged warehouse arrivals.
