Description
The ICS Triplex T8431 is a high-density, 40-channel Analogue Input Module designed for use within the Trusted™ Triple Modular Redundancy (TMR) system. This module is engineered to interface with a wide range of field sensors, providing exceptional accuracy and fault tolerance for safety-critical monitoring. By employing TMR architecture, the T8431 ensures that any single-point failure is detected and mitigated through hardware voting, maintaining the integrity of the data provided to the controller for Emergency Shutdown (ESD) or process control decisions.
Enhance your system reliability with our ICS Triplex T8431 specialized components.
Product Datasheet
Basic Specifications
- Brand: ICS Triplex (Rockwell Automation)
- Model Number: T8431
- Architecture: Triple Modular Redundant (TMR)
- Input Channels: 40 Channels (Isolated)
- Input Range: 4 to 20 mA (Standard)
- Resolution: 12-bit / 16-bit internal processing
Physical Characteristics
- Dimensions: 266mm x 31mm x 210mm
- Weight: 1.20 kg
- Mounting: Trusted Chassis Plug-in
- Interface: Front-panel LED diagnostic display
Manufacturing & Logistics
- Country of Origin: United Kingdom / USA
- Safety Rating: SIL 3 Certified
- Power Consumption: 20W (nominal)
- Operating Temperature: 0°C to +60°C

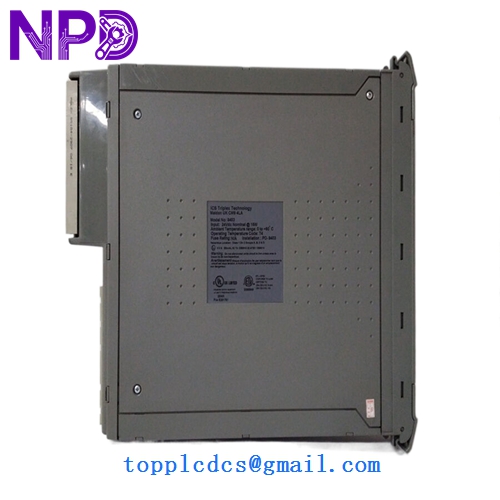

ICS TRIPLEX T8431
ICS TRIPLEX T8431
ICS TRIPLEX T8431
Application Fields
The T8431 is a staple in industries where precise measurement is vital to safety. It is widely used in Oil & Gas for pressure and temperature transmitter monitoring, Fire and Gas (F&G) Systems for detector interfacing, and Turbine Control for speed and vibration sensing. Its high channel density also makes it ideal for Nuclear Power monitoring and large-scale Petrochemical refineries where extensive sensor arrays are required.
Product Instructions
The T8431 should be inserted into a designated slot within the Trusted Controller Chassis. It supports hot-swapping, meaning the module can be replaced while the system is energized without loss of functionality, provided the system is in a healthy redundant state. Upon insertion, the module undergoes a self-test sequence. Configuration is completed via the Trusted Toolset software, where input ranges and alarm thresholds are defined. Periodic calibration checks are recommended to ensure the analogue-to-digital converters maintain their specified precision.
Comparison of Similar Models
The T8431 is the primary choice for 40-channel 24V DC analogue inputs. For applications requiring fewer channels with specific HART communication capabilities, the T8433 is often preferred. Compared to the T8403, which is a combined input/output module, the T8431 provides a much higher density of dedicated inputs, making it more cost-effective for large sensor networks. The T8431 also features faster update rates compared to older legacy analogue modules like the T8430.
Frequently Asked Questions (Q&A)
Q: Can the T8431 handle voltage inputs instead of current? A: While optimized for 4-20 mA current loops, the T8431 can often be configured for voltage inputs using external precision shunt resistors, though the T8432 variant is more specifically tailored for direct voltage sensing.
Q: How does the TMR voting work for an analogue signal? A: Each of the three internal “slices” of the module measures the input signal independently. The system then performs a mid-value select or an average of the three readings to determine the “true” value, discarding any outliers caused by hardware faults.
Q: What does a flashing amber LED on the front panel mean? A: A flashing amber LED usually indicates a channel-specific fault, such as an open circuit (undercurrent) or a short circuit (overcurrent) in the field wiring, rather than a total module failure.
