Description
- Model: ICS Triplex T8461
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR (Triple Modular Redundant)
- Core Function: High-integrity 24 V DC digital output interface for safety-critical field devices.
- Product Type: 40-Channel Digital Output Module
- Key Specs: SIL 3 Rated 24 V DC Operation TMR Architecture with On-board Voting
-
Attribute Specifications Number of Channels 40 Channels (Grouped) Output Voltage 24 V DC (Nominal) Safety Integrity SIL 3 (IEC 61508) Redundancy Triple Modular Redundant (TMR) Max Output Current 0.5 A per channel (Current Limited) Short Circuit Protection Electronic, with automatic recovery Isolation 500 V DC Port-to-Chassis Diagnostics Line monitoring (Open/Short circuit) & Stuck-on/Stuck-off detection Self-Test Frequency Continuous background TMR voting and pulse testing Power Consumption Approx. 15 W (Logic) + Field Load

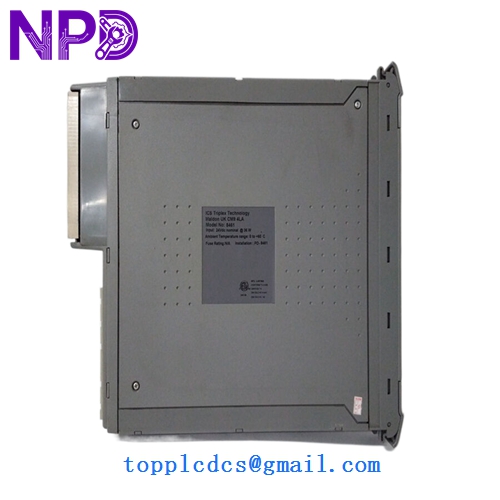

ICS TRIPLEX T8461

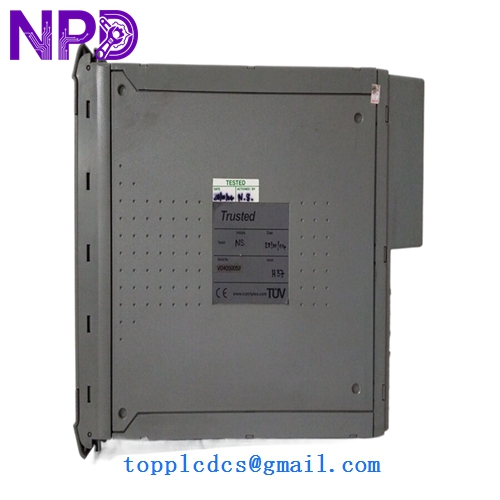

ICS TRIPLEX T8461
ICS TRIPLEX T8461
Rockwell ICS TRIPLEX T8461
Application Scenarios & Pain Points
The T8461 is the “muscle” of the Trusted system, responsible for physically firing solenoids, tripping breakers, or illuminating emergency beacons. The primary pain point with high-density output modules like the T8461 is Line Monitoring Faults. Because these modules are SIL 3, they are incredibly sensitive to impedance changes in the field wiring. A slightly corroded terminal block or a moisture-compromised solenoid coil can trigger a “Field Fault” alarm, which, if not addressed, can prevent the TMR logic from executing a safe command during a real emergency.
Typical Application Scenarios:
- Emergency Shutdown (ESD) Final Elements
Directly controlling Solenoid Operated Valves (SOVs) to vent headers or isolate fuel lines during an upset.
- Fire Suppression Activation
Triggering Deluge valves or CO2 release systems in response to confirmed fire detection logic.
- Safety Interlocking
Providing hardware interlocks to motor control centers (MCCs) to ensure equipment stays in a safe state during maintenance.
Case Study: The “Ghost” Short Circuit
Background: A gas processing plant experienced recurring “Channel Fault” alarms on a T8461 module controlling the main flare header ignition system.
Problem: The module reported a short circuit, but the field technicians found no direct shorts. The intermittent nature of the fault was preventing the system from reaching a “Healthy” TMR state, leaving the flare system vulnerable.
Solution: We provided a replacement T8461 from our stock. During the swap, our engineer noticed that the old module’s internal pulse-test diagnostics had become overly sensitive due to aging capacitors.
Result: The new module was hot-swapped into the chassis. The robust diagnostics of the new unit correctly identified a high-impedance leak in the field cable (moisture ingress), which was repaired. The system returned to SIL 3 status immediately.
Compatible Replacement Models
Original Model Replacement Model Compatibility Main Difference Change Required Cost Impact T8461 T8461 ✅ Direct N/A 1:1 Hot-swap Base T8461 T8461C ⚠️ Software Conformal Coating / New Rev Check Firmware +15% T8461 T8451 ❌ Incompatible Digital Input vs Output Cannot swap N/A Engineer’s Note: If you are replacing a T8461 in a highly corrosive environment (like an offshore platform), ask for the “C” version (T8461C). It features improved conformal coating that significantly extends the lifespan of the internal TMR voting circuits against salt-air corrosion.
Troubleshooting Quick Reference
Symptom Possible Cause Spare Relevance Quick Check Action CHANNEL FAULT (Red LED) Field Wiring Issue ⚠️ Medium Measure resistance at the Field Termination Assembly (FTA) Fix field wiring/solenoid MODULE FAIL (Red LED) Internal TMR Voter Failure ✅ High Check if the fault clears after a module reset Replace module immediately Intermittent “Stuck-Off” Pulse Test Failure ✅ High Check diagnostic buffer for “Test Gap” errors Replace module All Outputs Off Field Power (24V) Missing ❌ Low Check 24V DC supply at the FTA terminals Restore field power ❗ Critical Warning: Pulse Testing
The T8461 performs “Pulse Testing” (millisecond-long off-states) to verify it can actually trip when needed. If you are using this module to drive extremely sensitive high-speed relays or electronic inputs, these pulses can occasionally cause “chatter.” In my experience, 90% of “unexplained” relay chattering in Trusted systems is due to a mismatch between the T8461’s pulse test window and the relay’s response time. This can be tuned in the Toolset software—don’t just assume the module is broken!
SOP Quality & Testing Protocol:
We don’t just “power up” our T8461 modules. Each unit is installed in a Trusted TMR Chassis and subjected to a 40-Channel Load Test. We use a 24V DC load bank to pull 0.5A on every channel simultaneously for 4 hours while monitoring for thermal excursions. A full Test Report including channel-by-channel diagnostic logs and the internal firmware revision is included with every shipment. We can provide a video of the module passing its internal self-test upon request.
