Description
- Model: ICS Triplex T9451
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR (Triple Modular Redundant)
- Core Function: Provides high-integrity, fault-tolerant digital inputs for safety-critical applications.
- Product Type: TMR Digital Input Module
- Key Specs: 24 V DC inputs, TMR architecture, SIL 3 safety integrity
- Input Channels: 24 V DC discrete inputs
- Architecture: TMR (Triple Modular Redundant) – each input is voted upon by three separate processors for maximum fault tolerance
- Safety Rating: SIL 3 (IEC 61508)
- Diagnostics: Integrated per-channel diagnostics; detects open/short circuits and wire breakage
- Isolation: Opto-isolated inputs to protect the safety backplane
- Input Delay: Configurable for debounce and noise immunity
- Interface: Hot-swappable module design
- Environmental: Rated for industrial safety cabinet deployment

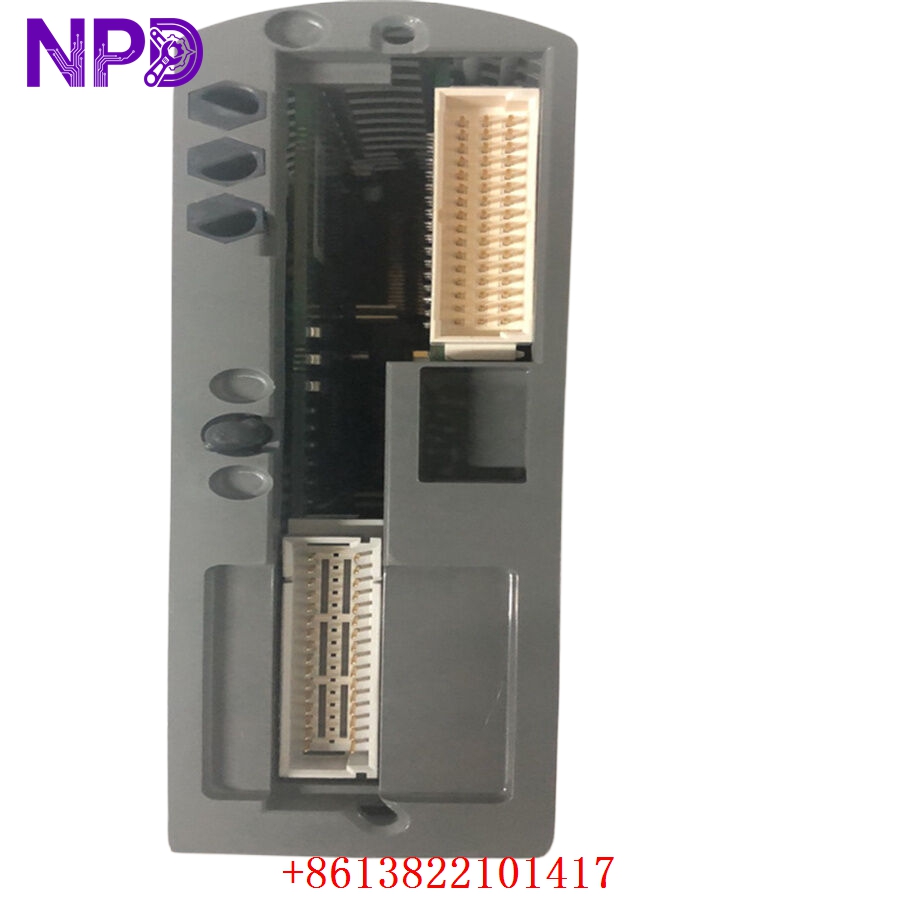

TRIPLEX ICS T9451

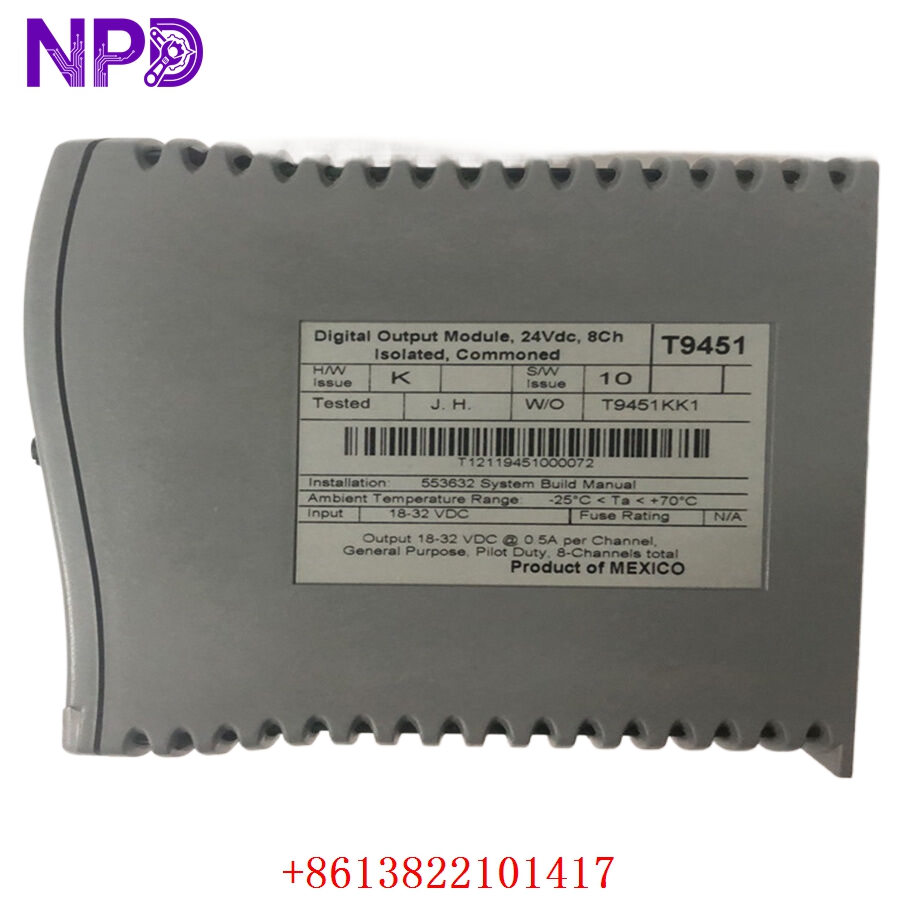

TRIPLEX ICS T9451

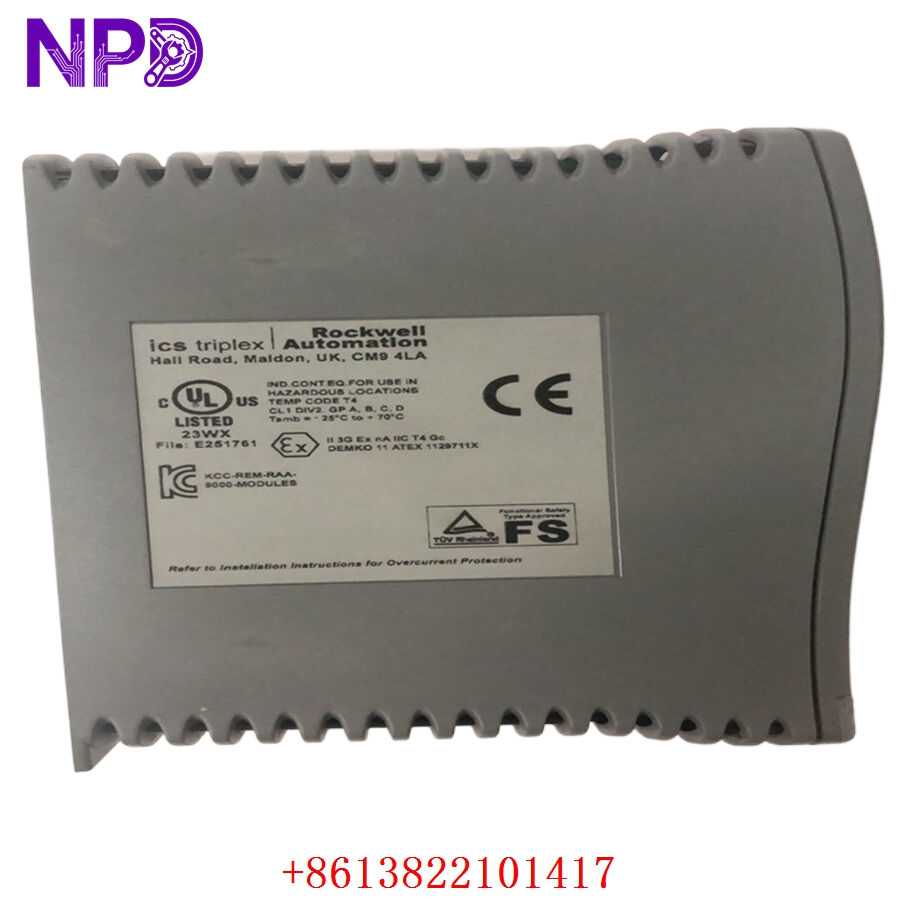

TRIPLEX ICS T9451
TRIPLEX ICS T9451
Application Scenarios & Engineering Pain Points
The T9451 is deployed in processes where a “false trip” (stopping the plant when it’s safe) or a “failure to trip” (allowing a catastrophe) is unacceptable. The primary engineering challenge with TMR modules is “Line Monitoring.” Because these modules are designed for SIL 3, they expect a specific current signature from the field devices (e.g., E-stops, limit switches). If an engineer adds a simple mechanical switch without the proper end-of-line resistors, the T9451 will flag a “Line Fault” because it cannot verify the integrity of the field wire.
Typical Application Scenarios:
- Oil & Gas – Emergency Shutdown Systems (ESD) Monitoring critical safety interlocks and valve position feedback.
- Chemical Industry – Safety Interlocks Ensuring safe shutdown sequences during reactor over-pressure or over-temperature events.
- Power – Burner Management Systems (BMS) Monitoring flame sensors and fuel valve status for safe boiler operation.
Case Study: Eliminating “Ghost” Line Faults A client replaced an aging relay-based system with a Trusted TMR system using T9451 modules. They initially used their existing field switches, but the system kept triggering “Line Fault” alarms. It turned out the old switches had enough contact resistance that the T9451 couldn’t distinguish between a closed switch and a high-resistance wire fault. By standardizing the field devices with high-precision EOL (End-Of-Line) resistors as per the T9451 manual, they eliminated the nuisance alarms and ensured true SIL 3 loop monitoring.
Troubleshooting Quick Reference
When a TMR module flags an error, it is almost always due to a field-side integrity issue, not a failure of the module itself.
| Failure Symptom | Possible Cause | Quick Check Method | Recommended Action |
|---|---|---|---|
| “Fault” LED Red | Field Wiring Integrity | Check for “Line Fault” in TT software | Verify EOL resistor value |
| “Voting Mismatch” | Internal Hardware Drift | Review “Module Diagnostic” log | Inspect TMR voting status in Toolset |
| Input Won’t Toggle | Open/Short Circuit | Measure voltage at field terminal | Repair cable or replace field switch |
| Intermittent Trip | Noise/Shielding | Check shield ground bar integrity | Ensure clean 360° shield contact |
Engineer’s Note: ❗ Crucial Advice: Always verify the module “Keying” before installation. The T9451 module and its associated terminal assembly (FTA) are keyed to prevent accidental insertion into an incompatible slot. Forcing the module can damage the backplane pins. Also, never bypass a “Line Fault” alarm by disabling diagnostics in software; this compromises your SIL 3 safety rating.
