Description
- Model: ICS Triplex T9451
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted / Trusted-plus TMR
- Core Function: High-integrity interface for 24 V DC digital field inputs (switches, sensors)
- Product Type: 40-Channel Digital Input Module
- Key Specs: SIL 3 Rated TMR Architecture Sequence of Events (SOE) Support
Key Technical Specifications
| Attribute | Specifications |
| Number of Channels | 40 Channels (Isolated groups) |
| Input Voltage | 24 V DC (Nominal) |
| Safety Integrity | SIL 3 Certified (IEC 61508) |
| Redundancy | Triple Modular Redundant (TMR) internal voting |
| Input Threshold | ON: >15 V DC; OFF: <5 V DC |
| SOE Resolution | 1 ms (Sequence of Events) |
| Isolation | 500 V DC Port-to-Chassis |
| Diagnostics | Line monitoring for Open/Short circuit (with FTA) |
| Self-Test | Continuous background diagnostic of all three slices |
| Power Consumption | Approx. 15 W |

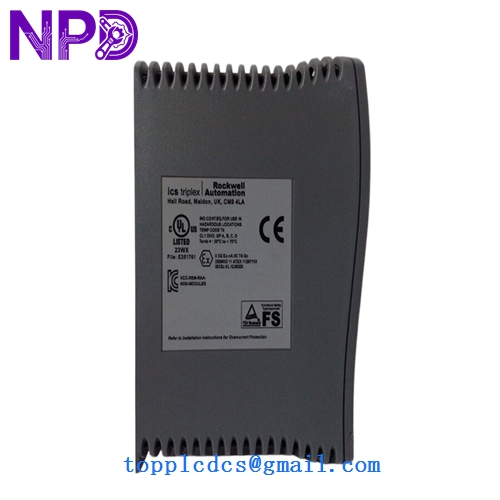

ICS TRIPLEX T9451

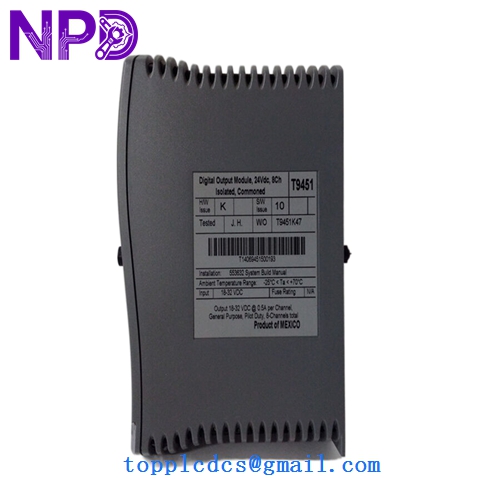

ICS TRIPLEX T9451

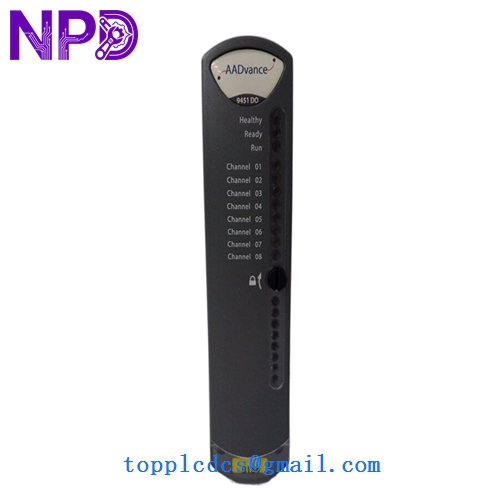

ICS TRIPLEX T9451
Application Scenarios & Pain Points
In high-integrity safety systems, the T9451 serves as the “eyes” of the controller. Because it is a SIL 3 module, it doesn’t just read a voltage; it verifies the integrity of the entire signal path. A common pain point is the “Module Mismatch” or “Voter Fault” during a hot-swap. If the internal slice synchronization fails, the module won’t enter the “Active” state, leaving your safety loops unprotected. This often happens if the backplane connector has even minor oxidation or if the firmware version is incompatible with the existing T8110B processor.
Typical Application Scenarios:
- Emergency Shutdown (ESD) Inputs
Monitoring high-pressure switches, emergency stop buttons, and valve limit switches in oil and gas refineries.
- Fire and Gas Monitoring
Collecting digital signals from flame detectors and gas sensors to trigger localized suppression logic.
- Sequence of Events (SOE) Tracking
Capturing high-speed trips in power generation plants to identify the “first-out” cause of a turbine trip with 1 ms precision.
Case Study: The Ghost Trip Prevention
Background: A chemical plant’s Trusted system was reporting intermittent “Input Discrepancy” alarms on a T9451 module linked to the reactor’s high-level switches.
Problem: A discrepancy in a TMR system means the three internal “slices” don’t agree on the input state. This reduces the system to a 1-out-of-2 (1oo2) architecture, increasing the risk of a false trip.
Solution: We provided a replacement T9451 from our tested inventory. The original unit was found to have a degraded optocoupler on “Slice B,” causing a millisecond delay that the TMR voting logic flagged as an error.
Result: The new module synchronized perfectly. The plant avoided a costly nuisance trip (estimated at $200k in lost chemicals) that would have occurred if the discrepancy had escalated to a 2-slice failure.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Change Required | Cost Impact |
| T9451 | T9451 | ✅ Direct | N/A | 1:1 Hot-swap | Base |
| T9451 | T9451C | ⚠️ Software | Conformal Coated Rev | Check Firmware | +15% |
| T9451 | T8451 | ⚠️ Partial | Older Chassis Version | Physical Keying Check | -5% |
Engineer’s Note: If you are using Field Termination Assemblies (FTAs) for line monitoring (detecting broken wires), ensure your T9451 is configured correctly in the Toolset software. I’ve seen engineers swap a module only to have it immediately throw 40 “Open Circuit” errors because they forgot to enable the threshold monitoring in the new hardware profile.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Spare Relevance | Quick Check | Action |
| HEALTHY LED Off | Internal Hardware Failure | ✅ High | Check diagnostic buffer for “Module Fail” | Replace module immediately |
| Channel LED Amber | Field Line Fault | ⚠️ Medium | Measure voltage at the FTA (24V?) | Fix wiring or resistor pack |
| ACTIVE LED Flashing | Sync Failure | ⚠️ Medium | Inspect backplane pins for debris/damage | Reseat module or clean pins |
| All Inputs “OFF” | Lost Field Power | ❌ Low | Check 24V supply to the input common | Restore field power source |
❗ Critical Warning: Backplane Pins
The T9451 uses a high-density connector. When inserting the module, use the levers to seat it firmly but gently. If you feel resistance, stop. I have seen 4,000 modules ruined and 50,000 chassis backplanes damaged because someone tried to “force” a T9451 into a slot with a bent pin.
Quality & Testing Protocol:
Each T9451 is tested in a Rockwell Trusted TMR Chassis. We simulate 40 simultaneous digital inputs and verify the 1 ms SOE timestamp accuracy. Using a Fluke 789 ProcessMeter, we verify the threshold trip points for every channel. A full Test Report showing 100% slice agreement (2oo3 voting) is included with every shipment. Video verification of the “Healthy” status is available upon request.
