Pioneer Magnetics PM3398B-6P-1-3P-E Switching Power Supply

Description

• Model: PM3398B-6P-1-3P-E
• Brand: Pioneer Magnetics
• Series: PM33 Series (High Power Density)
• Core Function: High-output AC-to-DC switching power supply for mission-critical systems
• Product Type: Rack-mount/Enclosed Power Supply
• Key Specs:
  • Input: Universal AC (Typically 180–264V for full output)
  • Output: Multi-output configuration (Commonly 5V, 12V, or 48V based on the “6P-1-3P” code)
  • Cooling: Integrated high-velocity ball-bearing fans
• • Configuration Code: 6P-1-3P-E
    • 6P: Typically refers to the main output voltage/current rating (e.g., high-amp 5V or 48V).
    • 1-3P: Indicates auxiliary output channels (e.g., ±12V or 24V secondary rails).
    • E: Often denotes enhanced EMI filtering or specific fan-fail alarm options.
  • Power Factor Correction (PFC): Integrated active PFC (>0.98)
  • Protection Features:
    • Over-Voltage Protection (OVP) with latch-off
    • Over-Current Protection (OCP) / Short Circuit Protection
    • Thermal Shutdown (OTP)
  • Remote Sensing: Dedicated pins to compensate for voltage drops across long cables
  • Signal Interface: Support for “Power Good,” “Remote On/Off,” and “Current Share” (for parallel operation)

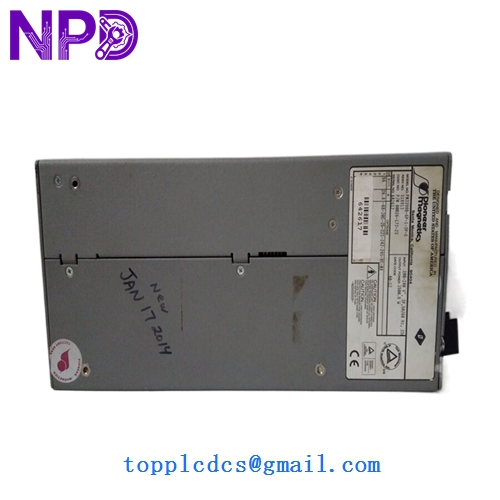

  PIONEER MAGNETICS PM3398B-6P-1-3P-E

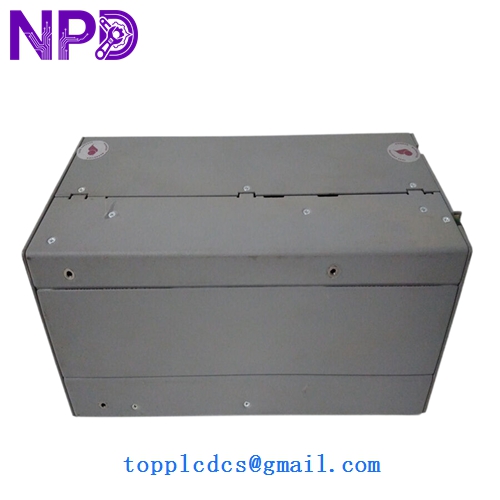

  PIONEER MAGNETICS PM3398B-6P-1-3P-E



  PIONEER MAGNETICS PM3398B-6P-1-3P-E

  Application Scenarios & Pain Points

  The PM3398B-6P-1-3P-E is a heavy-duty power house. Pioneer Magnetics supplies these units for high-end server mainframes, medical imaging equipment, and large-scale telecommunications hubs. Unlike consumer power supplies, these are designed to provide massive amounts of current with extremely low ripple noise.

  The primary pain point for this model is fan longevity and dust. Because these units pull a high volume of air to stay cool, the fans eventually wear out or the internal heat sinks become clogged. If the “E” (Enhanced) alarm triggers a fan-fail signal, the unit may shut down to prevent a fire, even if the DC output was technically still healthy.

  Typical Application Scenarios:

  1. Supercomputing & Data Storage Providing stable, high-current 5V or 12V rails for massive processor arrays.
  2. Medical Imaging (MRI/CT) Powering the high-speed data acquisition boards where electrical noise must be kept to a minimum.
  3. Broadcasting & Telecom Acting as the primary rectifier for 48V DC plant power in remote transmitter sites.
  4. Semiconductor Testing Equipment Providing precise power for ATE (Automatic Test Equipment) where voltage drift can ruin a test batch.

  Case Study: The “Intermittent Data” Mystery

  Background: A telecom provider in North America reported that one of their racks was experiencing random data corruption, but only during the hottest part of the afternoon.

  Problem: We analyzed the PM3398B power supply and found that while it was outputting the correct voltage, the “Ripple” (AC noise on the DC line) was spiking from 50mV to over 500mV as the unit got hot. The internal filter capacitors were drying out and losing their ability to smooth the power.

  Solution: Replaced the unit with a certified PM3398B-6P-1-3P-E and relocated the rack to improve airflow.

  Result:

  • Data Integrity: The corruption stopped immediately.
  • Uptime Success: The system passed its high-load stress test with zero errors.
  • Engineer’s Insight: “In high-power Pioneer Magnetics units, the voltage might look fine on a multimeter, but you need an oscilloscope to see the ripple. If the capacitors are old, the noise will kill your logic boards long before the power supply actually dies.”

  Compatible Replacement Models

  Pioneer Magnetics units are often highly customized. The suffix 6P-1-3P-E is specific to the internal transformer and rail configuration.

  Original Model	Replacement Model	Compatibility	Note
  PM3398B-6P-1-3P-E	PM3398B-6P-1-3P-E	✅ Exact Match	Direct replacement.
  PM3398B-6P-1-3P-E	PM33210B	⚠️ Physical	Newer series; check dimensions and pinouts.
  PM3398B-6P-1-3P-E	PM3398B (Standard)	❌ Incompatible	Missing the specific auxiliary rails (1-3P).

  Troubleshooting Quick Reference

  Symptom	Possible Cause	Relation	Quick Check	Action
  No DC Output	AC Input Failure	✅ High	Measure AC voltage at the input terminals.	Check breakers/fuses.
  Fan Spinning, No DC	Internal OVP Trip	✅ High	Check if “Remote On/Off” is bridged correctly.	Reset AC power.
  “Power Good” LED Off	Voltage Out of Spec	✅ High	Measure DC output at the terminals.	Adjust trim pot or replace PSU.
  Loud Grinding Noise	Fan Bearing Failure	✅ High	Visually inspect the front/rear fans.	Replace fans or the entire module.

  ❗ Pro Tip: Current Sharing

  If you are running two PM3398B units in parallel for redundancy, ensure the “Current Share” wire is connected between them. Without this link, one power supply will do 90% of the work and burn out prematurely while the other stays idle.

  Handling & Installation:

  1. Weight: These units are surprisingly heavy. Ensure the rack rails are secured before sliding the unit in.
  2. Terminal Safety: The high-current terminals (especially the 5V or 48V outputs) can arc if not tightened properly. Use a torque wrench to ensure a solid connection.
  3. Airflow: Never block the front or rear of the unit. These supplies require active cooling to prevent the “Thermal Shutdown” circuit from engaging.
