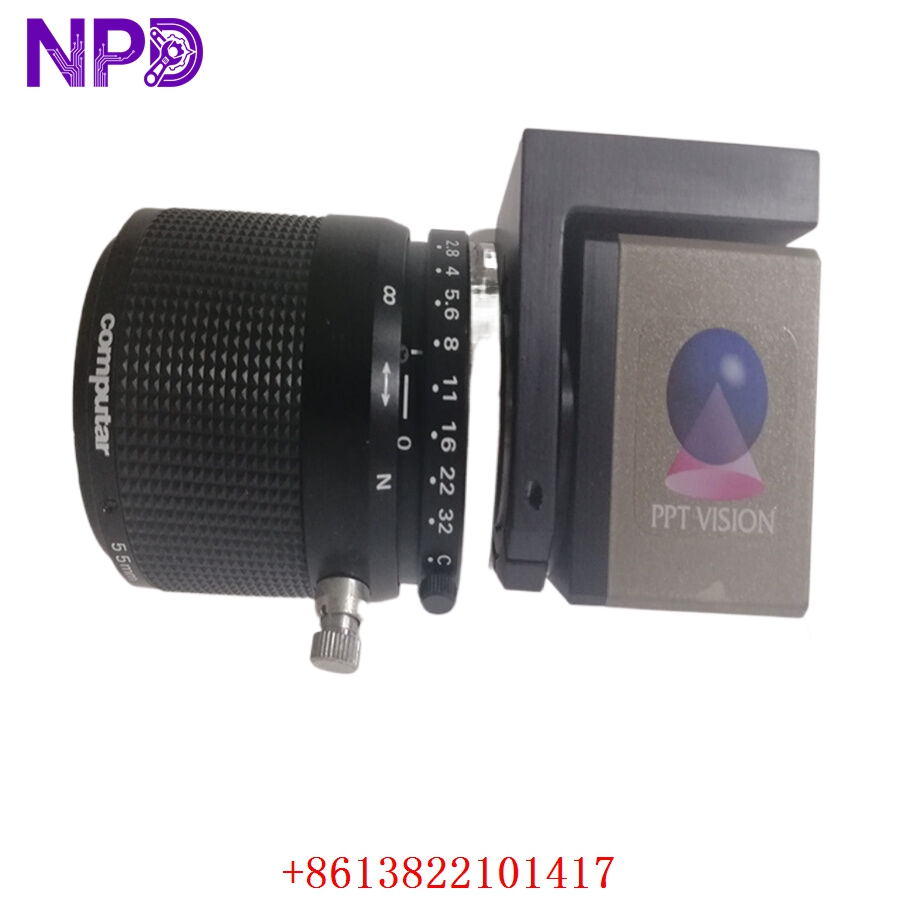

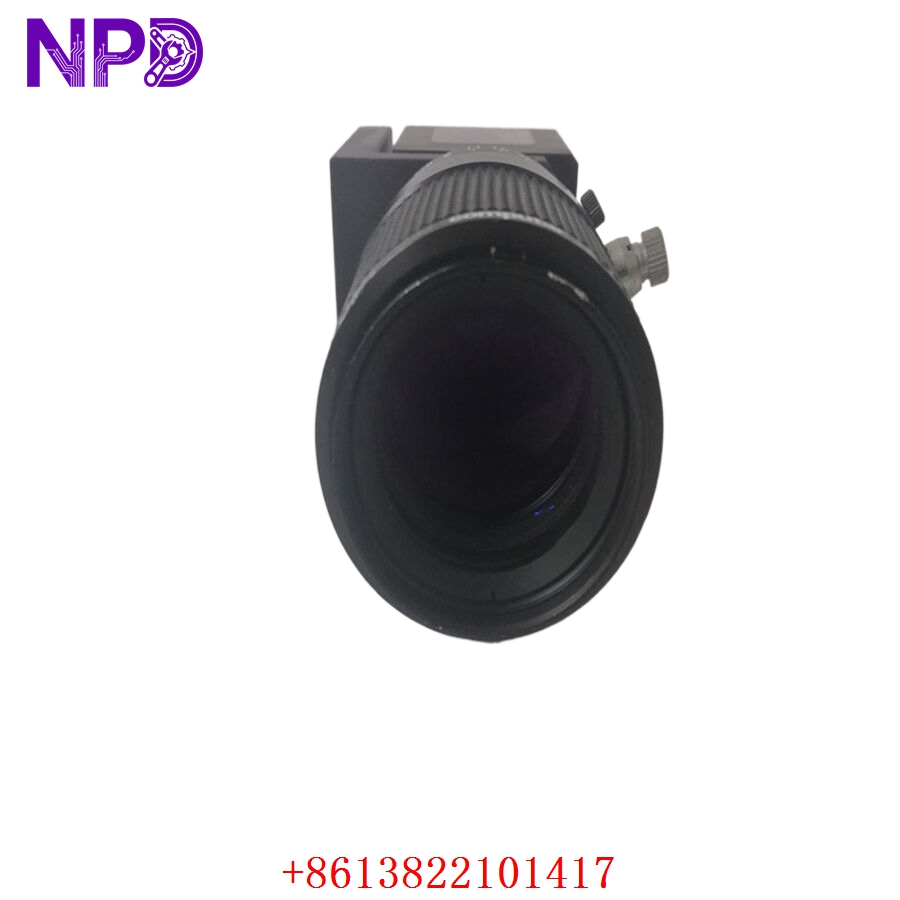

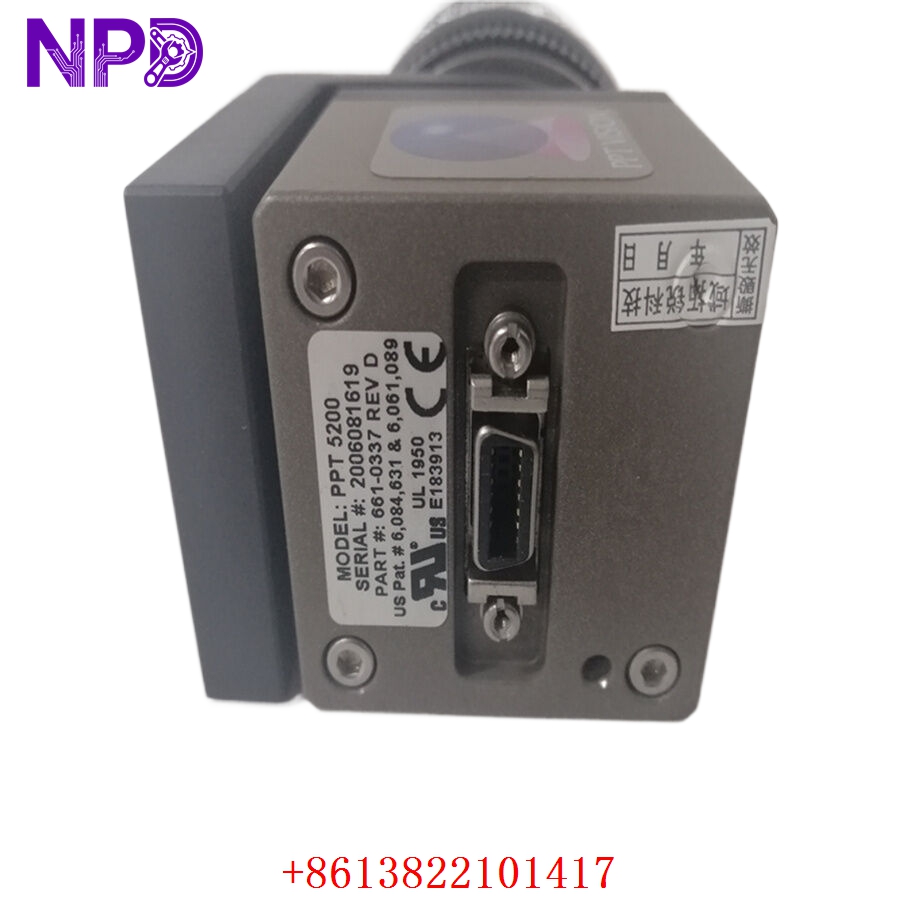

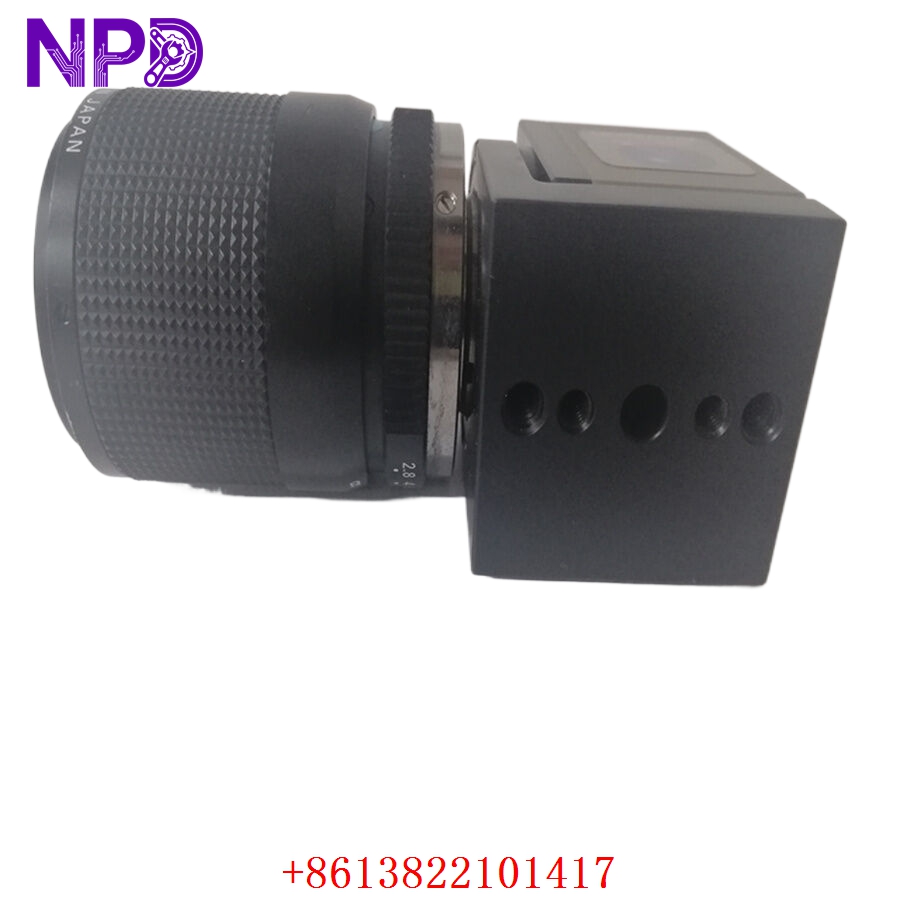

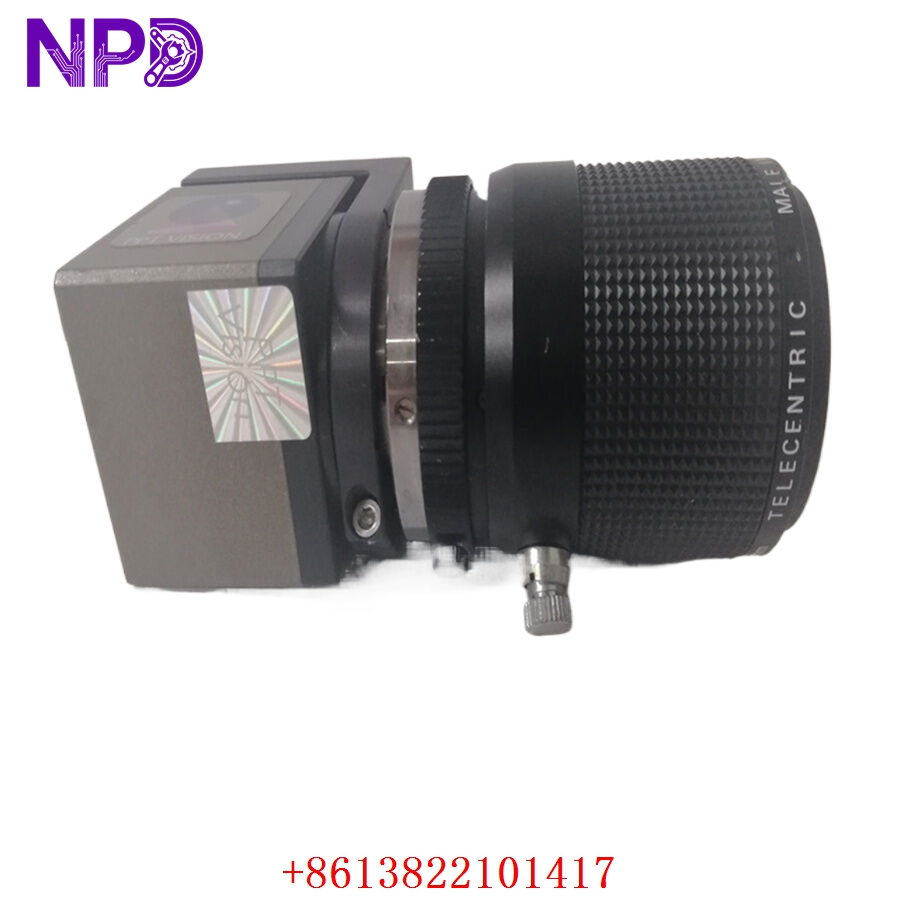

PPT VISION 661-0337 PPT5200 Machine Vision Camera

Description

• Model: PPT VISION 661-0337 PPT5200
• Brand: PPT VISION
• Series: PPT Vision C-Series Industrial Cameras
• Core Function: Industrial grayscale image acquisition for machine-vision inspection systems
• Product Type: CCD Vision Camera / Industrial Imaging Sensor
• Key Specs: 640 × 480 grayscale CCD 64 fps C-mount lens interface

• Image Resolution: 640 × 480 pixels
• Sensor Type: Interline transfer CCD grayscale sensor
• Frame Rate: Up to 64 fps full resolution
• Pixel Size: 7.4 × 7.4 μm
• Optical Fill Factor: 60%
• Gain Adjustment: 50%–400%
• Shutter Speed: 31–127,795 microseconds
• Lens Interface: Standard C-mount
• Power Supply: 12 V DC
• Power Consumption: Approx. 3 W
• Cable Type: DSL cable for power, control, and video
• Maximum Cable Length: 25 meters
• Operating Temperature: -5 °C to +45 °C
• Humidity Range: 20–80% non-condensing
• Weight: Approx. 140–200 g depending on mounting bracket
• Software Platform: PPT Vision IMPACT Software

PPT VISION 661-0337 PPT5200

PPT VISION 661-0337 PPT5200

PPT VISION 661-0337 PPT5200

PPT VISION 661-0337 PPT5200

Application Scenarios & Pain Points

The PPT5200 belongs to an older generation of industrial vision hardware that still runs inside a surprising number of production lines.

Especially:

• Semiconductor stamping
• Packaging inspection
• Label verification
• Electronics assembly
• High-speed sorting systems

And honestly… legacy vision systems can become a nightmare during maintenance shutdowns.

Why?

Because the camera itself is only part of the system.

You also have:

• Vision processors
• Lighting controllers
• Trigger timing
• Lens calibration
• Legacy software dongles
• Old Windows operating systems

I’ve seen production lines delayed for an entire weekend because a replacement camera worked electrically but used slightly different exposure timing.

The inspection logic failed even though the image “looked fine” to operators.

That’s the dangerous part with machine vision:
small image changes can completely break inspection reliability.

Typical Application Scenarios

1. Semiconductor Industry – Lead Frame Inspection
   Detects alignment defects and stamping irregularities on high-speed production lines.
2. Packaging Lines – Label & Barcode Verification
   Captures grayscale images for print inspection and product tracking.
3. Electronics Manufacturing – Component Presence Detection
   Confirms connector placement and assembly orientation.
4. Automotive Parts Inspection – Surface Verification
   Monitors machining consistency and edge detection quality.
5. Pharmaceutical Packaging – Cap & Seal Inspection
   Verifies closure integrity and packaging completeness.

Real Project Example – “The Camera Worked… But the Inspection Failed”

A packaging plant replaced a failed PPT5200 during a scheduled outage.

After startup:

• Camera powered normally
• Live image displayed correctly
• Trigger signals worked
• Ethernet communication remained stable

But production immediately experienced:

• False reject spikes
• Random missing-label alarms
• Inconsistent edge detection

Maintenance initially blamed:

• Lighting intensity
• Lens focus
• Conveyor vibration

The actual problem?

The replacement camera used slightly different gain settings and shutter timing compared with the original configuration.

The inspection recipe had been tuned years earlier around the old camera response characteristics.

At higher conveyor speed, image contrast drifted enough to confuse the inspection algorithm.

After:

• recalibrating exposure,
• adjusting gain,
• re-teaching reference images,

the reject rate returned to normal.

That’s one of the painful realities of older vision systems:
a “compatible” camera may still require complete image revalidation.

Compatible Replacement Models

Practical recommendation:

If the production line still depends on legacy IMPACT software, staying with the same PPT5200 hardware family usually avoids the biggest commissioning headaches.
