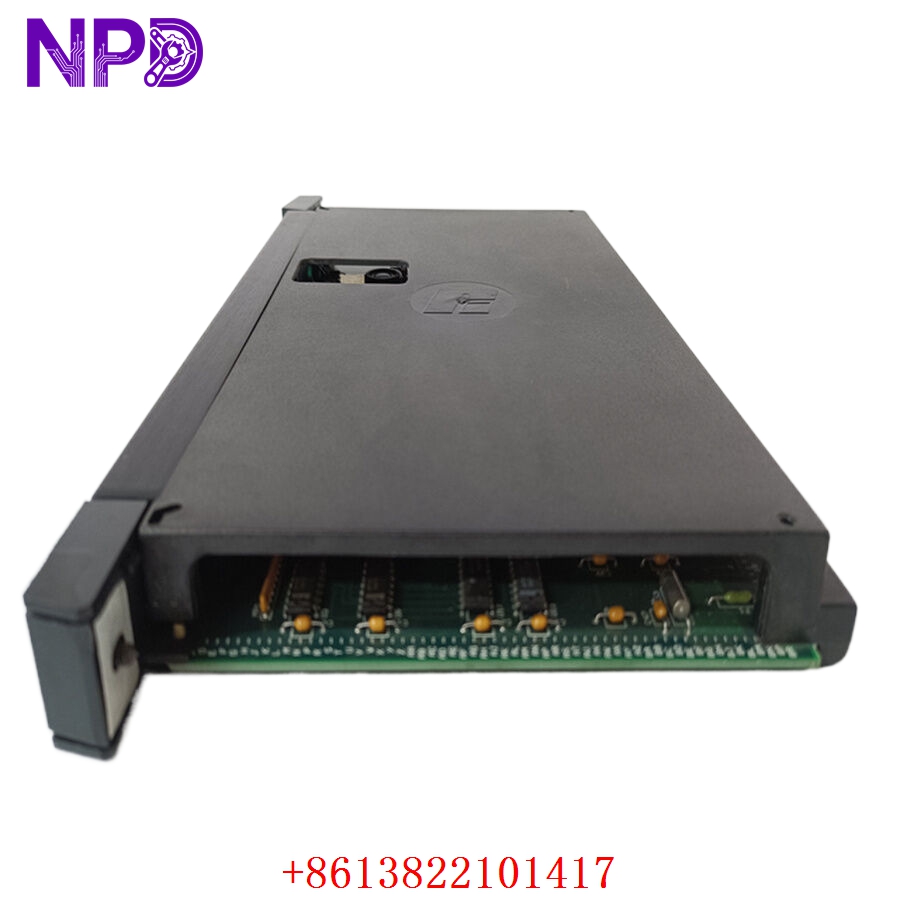

Description
· Model: 57C413B
· Brand: Reliance Electric (now Rockwell Automation)
· Series: AutoMax Distributed Control System
· Core Function: ⚙️ Main processor module for handling logic and control algorithms
· Product Type: 📟 Central Processing Unit (CPU) Module
· Key Specs: 🛠️ High-speed processing, supports AutoMax programming languages, rack-mounted
Key Technical Specifications
- Processor Architecture: Proprietary AutoMax RISC-based architecture
- Programming Interface: RS-232 / RS-422 serial ports
- Communication: Supports R-Net and DCS communication protocols
- Operating Temperature: 0 °C to 60 °C

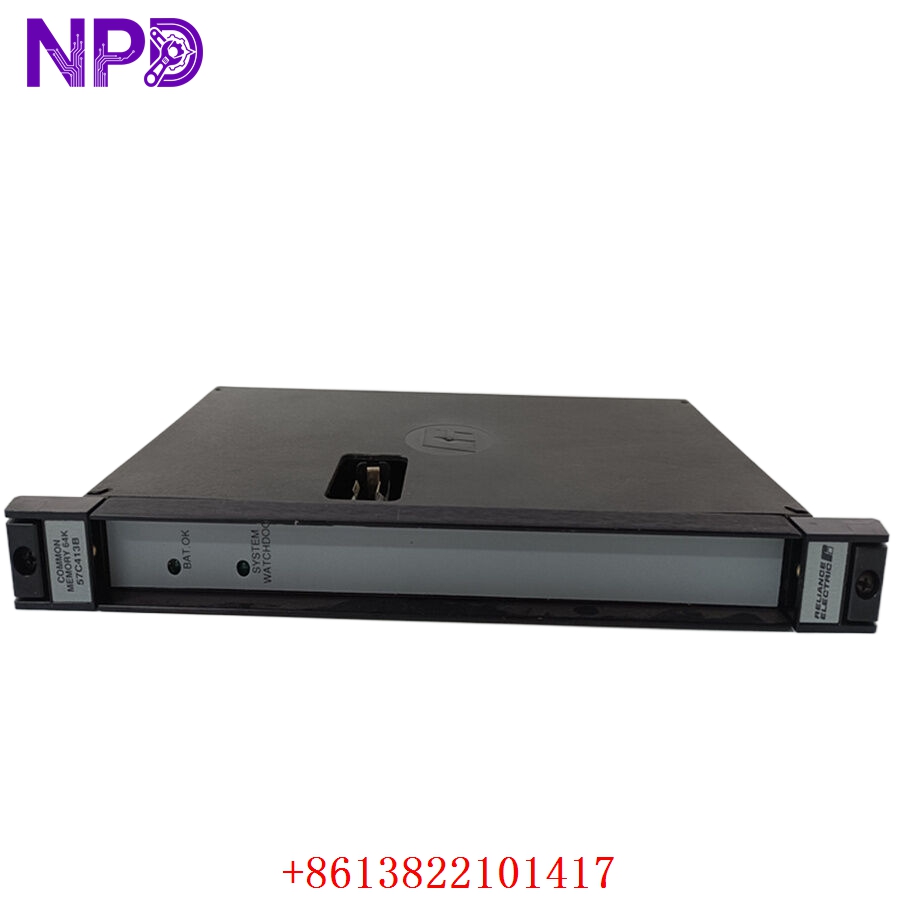

- Status Indicators: Front-facing diagnostic LED array (RUN, FAULT, COMM)

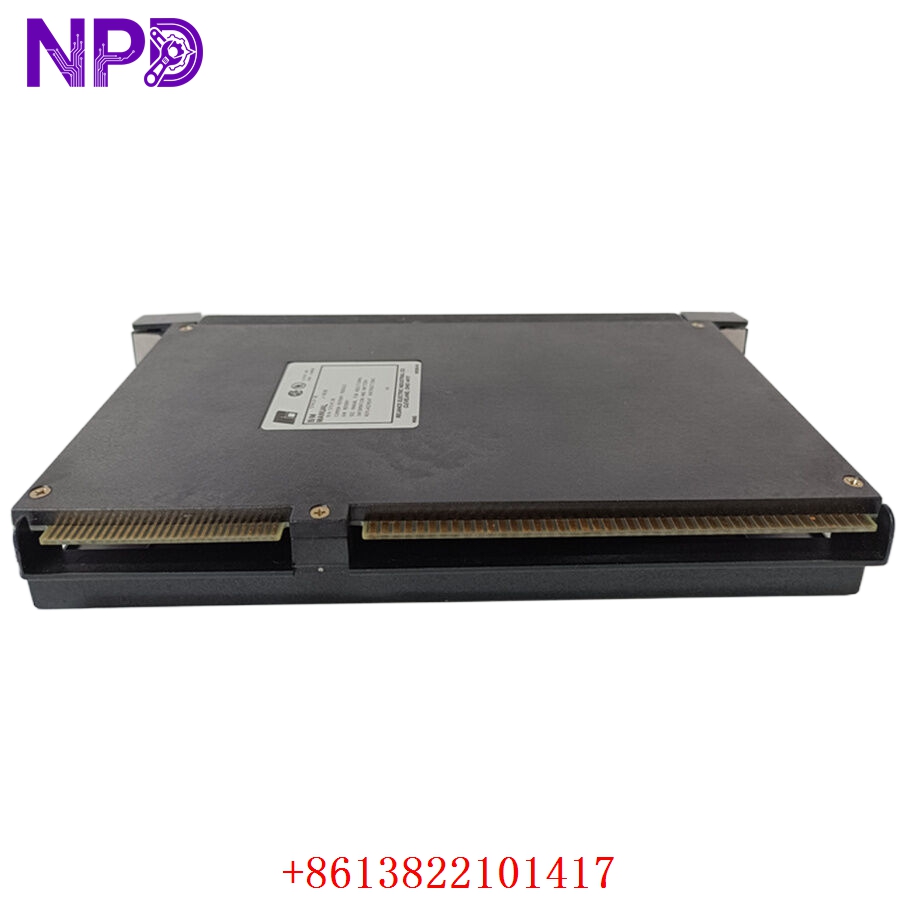

- Mounting: AutoMax card rack (backplane connection)
- Memory: Integrated battery-backed CMOS RAM for application storage
Application Scenarios & Engineering Insights
The 57C413B is a workhorse in legacy automation, specifically in heavy industrial applications like paper mills, metal processing lines, and material handling systems. Because these systems are often decades old, a processor failure can halt an entire production line. Since this is an end-of-life component, my recommendation is to maintain a “hot spare” on-site that has been tested in a known-good rack.
Typical Use Cases:
- Metals Industry – Tension Control
Manages high-speed motor synchronization for steel cold rolling mills.
- Paper & Converting – Drive Coordination
Handles multi-motor speed regulation and tension control loops for large paper machines.
- Material Handling – Legacy DCS Integration
Acts as the primary controller for distributed AutoMax racks in facility-wide automation.
Troubleshooting Pro-Tip:
When the “FAULT” LED triggers, don’t rush to replace the hardware immediately. In my experience, 40% of these “dead” units are actually suffering from a depleted battery on the memory card or a communication timeout caused by a failing R-Net cable. Always pull the diagnostic buffer with your programming terminal first to check for “E-codes.”
Compatible Replacement Models
| Original Model | Replacement | Compatibility | Difference |
| 57C413B | 57C413 | ✅ Direct | Minor revision differences |
| 57C413B | 57C413C | ✅ Direct | Enhanced clock speed/memory stability |
| 57C413B | ControlLogix | ❌ System Migration | Requires full system redesign |
Note: The 57C413C is generally considered the preferred upgrade if you are experiencing intermittent stability issues, provided your firmware supports it.
Troubleshooting Quick Reference
| Symptom | Probable Cause | Action |
| No LEDs Active | Power supply or rack failure | Measure +5V and +15V on the rack backplane |
| FAULT Light Steady | Internal RAM error or watchdog timer | Check/Replace memory battery; clear memory |
| COMM Light Flashing | R-Net communication timeout | Inspect R-Net cables and termination resistors |
| Intermittent Resets | High ambient heat or power noise | Clean rack fan filters; check grounding |
Safety Warning: Always ensure the rack is de-energized before swapping processor modules. Even if they are technically hot-swappable, the risk of a voltage spike back-feeding into the backplane is real in older, degraded cabinets.
