Description
- Model: SAIA PCD2.M48X
- Brand: Saia-Burgess (SBC)
- Series: PCD2 System
- Core Function: High-performance central processing unit for modular control systems
- Product Type: CPU / Controller Module
- Key Specs: 1 MB RAM 512 KB Flash Integrated Ethernet/USB Supports up to 1024 I/O
- Processor: High-speed RISC processor for deterministic control
- User Memory:
- 1 MB RAM for data and programs
- 512 KB Flash (onboard)
- Expandable via memory modules (PCD7.Rxxx)
- Communication Ports:
- 1x Ethernet (TCP/IP)
- 1x USB (Service/Programming)
- 1x RS-485 (Profibus DP or S-Bus)
- I/O Capacity:
- 8 slots on the base unit (up to 128 local I/O)
- Expandable via PCD2.Cxxx expansion housings to 1024 I/O
- Real-Time Clock (RTC): Integrated with battery backup
- Programming: Saia PG5 Controls Suite

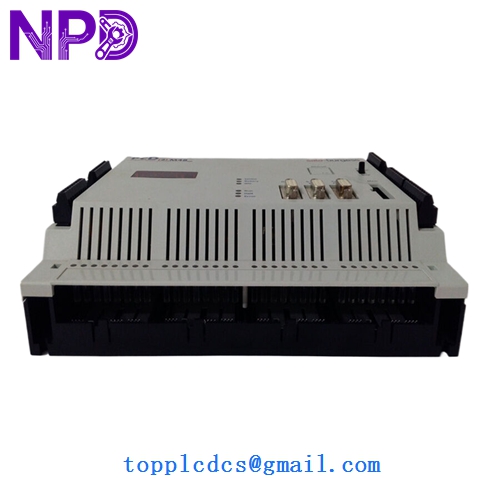

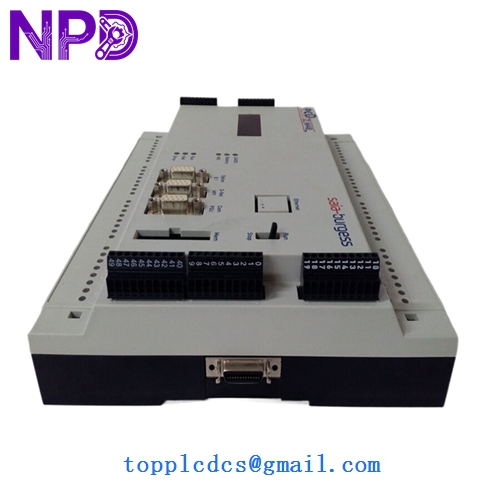

SAIA PCD2.M48X
SAIA PCD2.M48X
SAIA PCD2.M48X
Application Scenarios & Pain Points
The PCD2.M48X is the “large memory” variant of the PCD2 series. It is a workhorse in European building automation and infrastructure projects. Because it uses the proprietary S-Bus protocol alongside standard Ethernet, it is often found in complex, networked environments.
The biggest pain point for maintenance teams is the lithium battery. If the battery fails while the power is off, the RAM-stored program can be lost. Furthermore, since these modules are often mounted in tight cabinets, thermal stress can lead to internal solder joint failure on the I/O bus connectors over a 10-15 year lifespan.
Typical Application Scenarios:
- Smart Building Management (BMS) Acting as a master controller for HVAC, lighting, and access control in commercial high-rises.
- Water Treatment Infrastructure Managing pumping stations and filtration sequences with high I/O counts.
- District Heating Systems Coordinating heat exchange stations via remote Ethernet communication.
- OEM Machine Control Used by European machine builders for specialized packaging or textile equipment.
Case Study: The “Program Amnesia” Fault
Background: A hospital in Switzerland reported that their HVAC system would “reset to default” every time the main circuit breaker was tested. The PLC would lose all its timers and setpoints.
Problem: We identified that the PCD2.M48X had a dead backup battery. Because the program was loaded in RAM rather than burned to Flash, the unit was completely wiped during the power cut.
Solution: We provided a replacement PCD2.M48X with a fresh battery and a Flash memory module (PCD7.R500) to ensure the program was stored in non-volatile memory.
Result:
- Reliability: The system survived the next power test without data loss.
- Maintenance: The client implemented a 3-year battery replacement cycle.
- Engineer’s Insight: “With Saia PCD units, the CPU is only as good as its battery. If you aren’t using a Flash card, you are one power outage away from a total system wipe.”
Compatible Replacement Models
The PCD2 series has several CPU levels. The M48X is near the top of the PCD2 range.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| PCD2.M48X | PCD2.M48X | ✅ Exact Match | Standard high-spec unit. |
| PCD2.M48X | PCD2.M170 | ❌ Incompatible | M170 is a much older, low-memory unit. |
| PCD2.M48X | PCD2.M5xxx | ⚠️ Software | Newer PCD2.M5 series; requires PG5 software project migration. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| “Error” LED On | Logic/Hardware Fault | ✅ High | Check the diagnostic buffer in PG5. | Replace CPU or reload program. |
| “BATT” LED On | Low Battery | ✅ High | Measure the lithium battery voltage. | Replace battery immediately (while powered). |
| No Ethernet Comms | IP Address Reset | ⚠️ Med | Use the USB port to check IP settings. | Re-assign IP via PG5. |
| I/O Modules Not Found | Bus Connector | ✅ High | Ensure the CPU is firmly latched to the baseplate. | Clean bus pins or replace baseplate. |
❗ Pro Tip: The “Battery-Safe” Swap
When replacing the battery on a PCD2.M48X, always leave the power ON. If you remove the battery while the power is OFF, the program in RAM will be lost within seconds. If the program is already lost, you will need the original source code and Saia PG5 software to restore the unit to operation.
Handling & Installation:
- Static Safety: Use an ESD wrist strap; the RISC processor is sensitive to static.
- Mounting: Ensure the module is pushed firmly onto the PCD2 baseplate until you hear a “click.” If it is not fully seated, the I/O modules will not be recognized.
- Memory Modules: If your original unit had a plug-in memory card (under the front cover), ensure you move it to the new unit before commissioning.
