Description

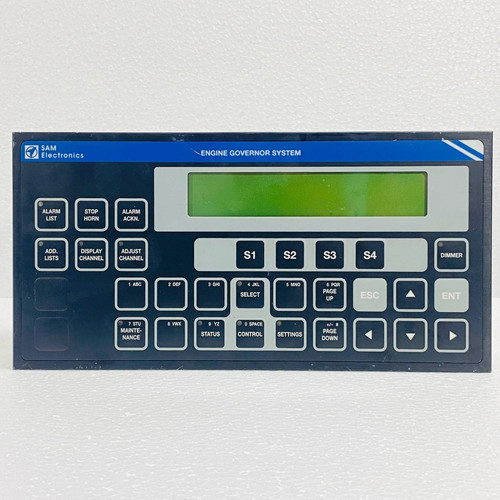

The Sam Electronics EGP 2200 is an advanced digital electronic governor system engineered for high-precision speed regulation of marine and industrial diesel engines. It monitors real-time engine velocity via magnetic pickups and processes the data through a high-speed PID loop to modulate fuel actuators. Designed for harsh engine-room environments, it ensures optimal transient response, stable frequency matching, and fuel efficiency during severe load changes.
Technical Specifications
- Model ID: EGP 2200
- Module Type: Digital Engine Speed Governor
- Dimensions: 245 mm x 180 mm x 60 mm
- Weight: 1.45 kg
- Country of Origin: Germany
- Supply Input: 18–36 VDC (24 VDC nominal)
- Output Signal: Proportional PWM or 0–200 mA current loop for actuator control
Application Areas
⚙️ Marine Diesel Propulsion Plants
🚢 Auxiliary Gen-Set Speed Regulation
🏭 Heavy Industrial Power Stations
🏗️ Offshore Drilling Vessel Main Engines
🌊 Automated Container Ship Power Management
Operational Guidelines
Power-Up / Power-Down Sequence
- Startup: Check the physical linkage between the fuel actuator and the engine fuel rack. Apply the 24 VDC supply power to the EGP 2200 unit. Ensure the system status LED illuminates steady green, signaling a clean self-test, before engaging the engine starting air or cranking motor.
- Shutdown: Issue a standard stop command from the master automation system to cut fuel via the actuator. Once the engine speed drops to zero rpm, isolate the auxiliary DC power breaker to the governor controller to prevent standby battery drain.
Step-by-Step Standard Operation
- Linkage Audit: Manually push the actuator linkage to confirm freedom of movement without binding or sticking.
- System Reset: Power on the governor and verify that the “Ready” contact closes, indicating no active actuator open-circuit or speed sensor faults.
- Crank Interfacing: Initiate the engine start; the EGP 2200 will automatically manage the fuel limit curve during cranking to avoid excessive smoke.
- Speed Stability: Allow the unit to ramp the engine to rated speed (e.g., 720/900 rpm) and verify that the speed hunting stays within ±0.25%.
- Synchronization: Engage Isochronous or Droop mode depending on whether the engine is running standalone or in parallel with a shared grid.
Frequently Asked Questions
Q: What causes the engine to hunt or fluctuate in speed at idle? A: This behavior is usually caused by incorrect PID settings (excessive Proportional Gain or Derivative time) or friction in the fuel rack linkage. Fine-tune the dynamics parameters using the interface terminal.
Q: What does a flashing red “MPU” LED mean? A: This indicates a loss of signal or poor wave amplitude from the magnetic pickup sensor near the flywheel. Check the sensor gap clearance, clean off debris, and verify terminal wiring connections.
Q: Can this unit replace older analog Woodward or Barber-Colman governors? A: Yes, with its flexible, configurable analog inputs and wide actuator drive current options, the EGP 2200 is widely used as a retrofit solution for legacy electronic governors.
