Schneider Electric TRICONEX 3009 Enhanced Main Processor

Description

• Model: TRICONEX 3009 (Alternative: MP-3009 / 3009X)
• Brand: Invensys / Schneider Electric (USA)
• Series: Tricon Triple Modular Redundancy (TMR) Safety Instrumented System (SIS)
• Core Function: Central processing unit running user-defined safety logic, continuous diagnostics, and automated voting patterns within a high-integrity fault-tolerant rack environment, New Surplus / Clean Used condition
• Type: Enhanced Main Processor (UMP) Module
• Key Specs: Dual-core architecture, 16 MB Non-Volatile Flash memory, 4 MB battery-backed SRAM, proprietary 25 Mbps / 1000 Mbps TriBus inter-processor mirroring link, 2oo3 (Two-out-of-Three) hardware voting logic solver

• Processing Architecture: Dual-core processing layout (one core optimized for executing main safety logic code, one core handling high-speed I/O communication protocols)
• Redundancy Voting Vector: Hardware-driven 2oo3 (Two-out-of-Three) majority voting logic across three separate tracking legs
• System Flash PROM: 16 MB non-volatile memory partition dedicated to control configuration and system operating files
• Dynamic Memory Capacity: 4 MB static random-access memory (SRAM) backed by an internal battery cell for variable retention
• Inter-Processor Synchronization Link (TriBus): Proprietary isolated serial communication backbone. Operates at a native 25 Mbps when populated in traditional 8110 main chassis frames, and scales up to 1000 Mbps when loaded into 8120E Enhanced Main Chassis units
• Data Refresh / Scan Time: Deterministic logic execution, typical cycle loops complete in less than 10 ms for large-scale multi-point configurations
• Integrated Protocol Interfaces: 1x Modbus TCP/IP Ethernet port, 1x RS-485 serial communication loop interface
• Safety Integrity Level Compliance: Fully certified to SIL 3 safety standards according to IEC 61508 (Edition 2) and IEC 61511 compliance profiles
• Local Front Panel Diagnostics: Dedicated array of LED metrics indicating Pass/Fail status, Active Run state, Force mode alerts, Battery status, and individual network link handshakes
• Electrical Transient Isolation: 2500 V AC RMS channel-to-backplane physical isolation barrier
• Power Requirements: 5 V DC input rail, typical operational power draw of 15 W
• Ambient Temperature Parameters: -40 °C to +70 °C continuous duty envelope

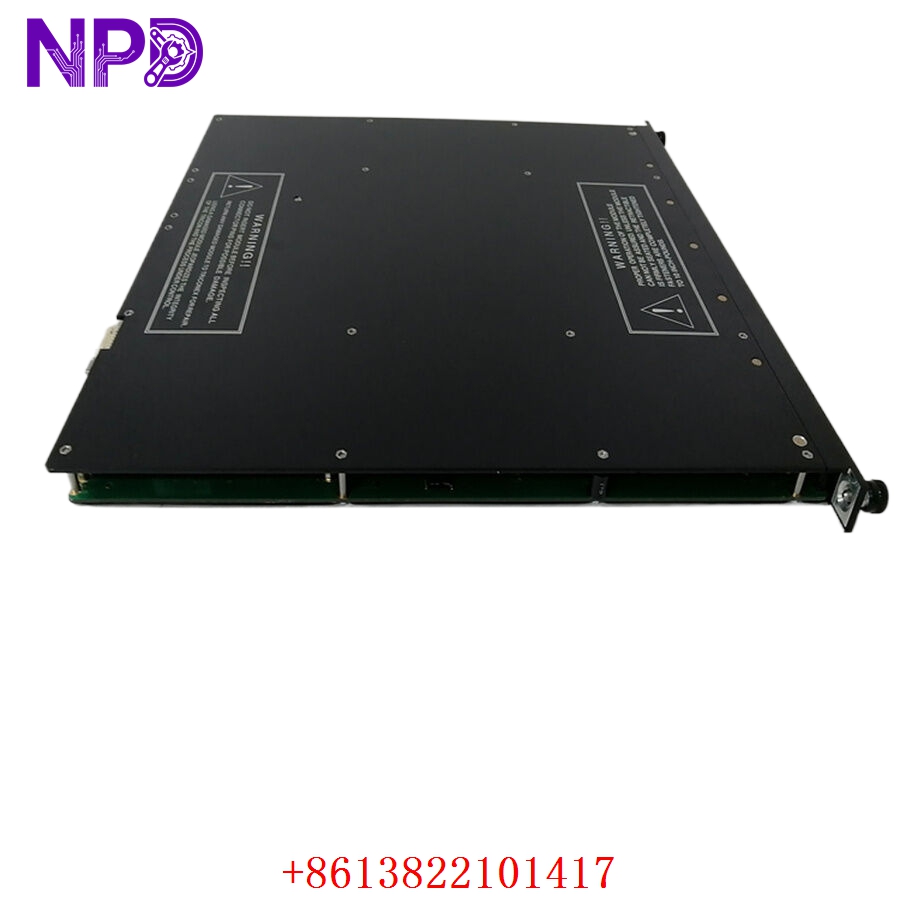

TRICONEX 3009

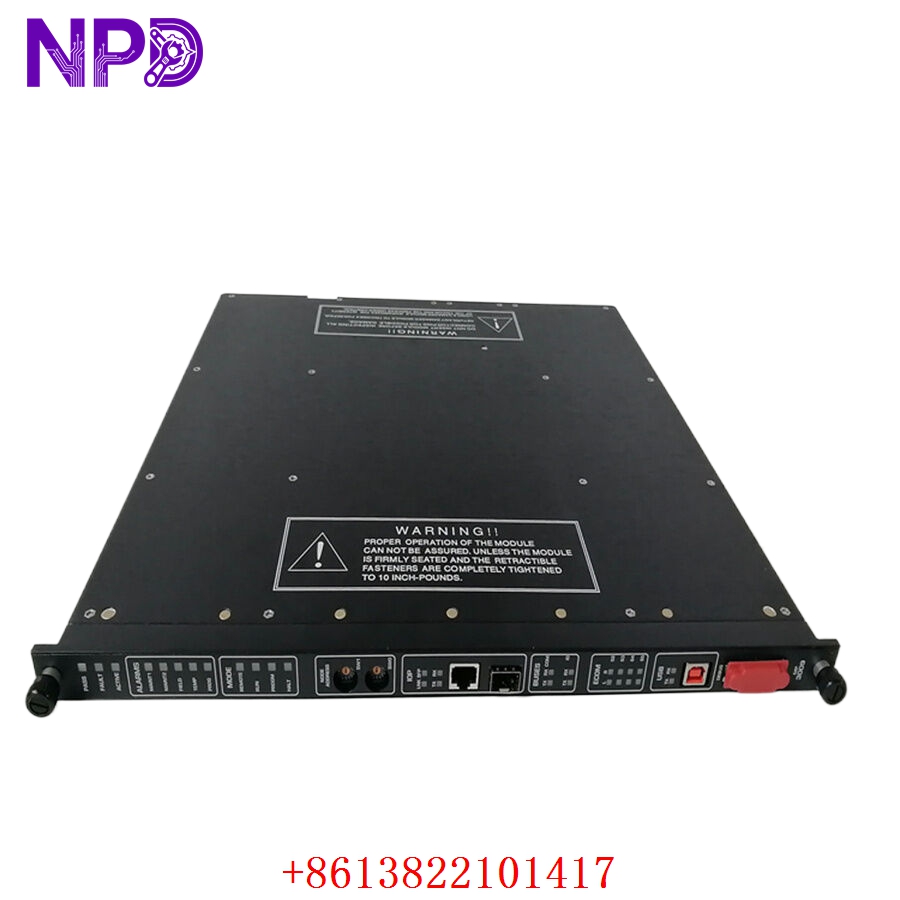

TRICONEX 3009

TRICONEX 3009

Application Scenarios & Pain Points

In high-risk critical environments—such as petrochemical refineries, offshore oil rigs, and large-scale power generation blocks—the TRICONEX 3009 Enhanced Main Processor serves as the primary intelligence running Emergency Shutdown (ESD) systems, Burner Management Systems (BMS), and Fire and Gas (F&G) logic layers. Because the Tricon architecture uses full triplication, three 3009 modules operate simultaneously across three independent legs (A, B, and C) inside the main chassis, using the proprietary TriBus connection to cross-check processing values in real time.

If one processing module degrades from thermal stress or develops flash memory sector faults, the system can smoothly transition to run on two legs without dropping out or causing a false plant shutdown. However, operating with a leg down removes the voting safety net, making any subsequent hardware failure a direct cause for an automatic safety trip. Replacing the faulty 3009 module online is essential to restore proper fault tolerance. Sourcing identical hardware revisions prevents firmware mismatches or network errors when downloading code updates from TriStation 1131.

Typical Application Scenarios

1. Petrochemical Refineries – Emergency Shutdown Systems (ESD)

   Monitors high-risk process indicators like reactor pressure and distillation levels, executing safety shutdown loops to protect plant equipment.

2. Power Generation Infrastructure – Burner Management Systems (BMS)

   Manages automated furnace purging, pilot ignition control, and continuous flame monitoring circuits to prevent hazardous gas build-ups in boiler units.

3. Oil & Gas Transport – Pipeline Over-Pressure Protection

   Interlocks directly with high-speed isolation valves to isolate pipeline segments when pressure spikes exceed safe limits.

Real-World Field Case: Restoring Redundancy to a Critical Refinery Leg

Background: A chemical processing plant in western China was running a Tricon v11 control rack for its main compressor interlock array. The system began generating alarms for a fault on the Leg B processor line.

The Problem: The “Fault” light on the middle 3009 main processor turned solid red, and the engineering station showed an “Inter-Processor Synchronization Lost / TriBus Timeout” error. The system dropped into a dual-redundant tracking state. While the compressor array remained operational on Leg A and Leg C, the control system was left without true 2oo3 voting protection. A fault on either remaining processor would cause a full plant shutdown, resulting in significant production losses.

The Solution: The facility’s instrumentation supervisor contacted our engineering desk. We pulled a replacement TRICONEX 3009 processor from our climate-controlled stock room, verified its memory sectors, checked the 1000 Mbps TriBus interface on an active test rack, and dispatched the hardware via a priority next-day air courier.

The Result:

• Response Speed: The module arrived at the refinery’s maintenance bay within 18 hours.
• Implementation: Following the hot-swap procedure, the technician inserted the new module into Slot B while the system was online. The active processors recognized the new unit, synchronized user program configurations over the TriBus interface, and cleared the fault log.
• System Recovery: The system returned to full 2oo3 redundant operation, maintaining continuous uptime for the plant’s production run.

Compatible Upgrades & Replacements

When managing components across the Tricon 3000 series platform, ensure your hardware selection aligns with the configuration profile of your main chassis frame.

• TRICONEX 3009 / 3009X (Exact Revision) → Direct Drop-in Replacement
  • Configuration: Standard Enhanced Main Processor configuration.
  • Action: Slide the module directly into the open slot alongside active processors. The remaining units will automatically handle online synchronization and match running parameters.
• TRICONEX 3008 Modules (Legacy Predecessor Migration) → System Upgrade Required
  • Differences: Older 3008 processors rely on slower internal clocks and operate with lower data throughput limitations across legacy TriBus channels.
  • Action Required: Migrating a system from legacy 3008 processors to 3009 models typically requires a system-wide firmware upgrade to Tricon Version 11.x and an update to the project layout files using the TriStation 1131 software suite.

Troubleshooting Quick Reference

Use this diagnostic reference guide when assessing status indications on the front of the 3009 processor module.

❗ ONLINE HOT-SWAP WARNING: The Tricon system allows for online module replacement, but you must verify that the remaining two main processors display solid green “PASS” and “ACTIVE” lights before removing the faulty 3009 module. Removing a processor while another leg is unstable can disrupt the system voting matrix and trigger an unexpected safety shutdown.
