Description
- Model: TRICONEX AO3481 (Full Engineering Part Number: 3481 S2 / AO3481S2)
- Brand: Invensys / Schneider Electric (USA)
- Series: Tri-GP (TriGuard Plus) / Tricon Redundant Safety Platforms
- Core Function: High-integrity Triple Modular Redundant (TMR) analog current loop driver designed to govern critical field final control elements like variable governors, fuel throttle valves, and positioners safely, New Surplus / Clean Used condition
- Type: TMR Analog Output Module
- Key Specs: 4-20 mA controlled current range (0-22 mA over-range potential), 12-bit output resolution, less than 0.25% Full Scale Range (FSR) accuracy profile, 1 ms typical leg failure switch time, integrated Forced-Switch Diagnostics (FSD)
- Output Channels: Highly isolated multi-channel analog output configuration
- Signal Output Interface: 4 to 20 mA nominal loop current drive, expanding to 0-22 mA to accommodate diagnostic over-range requirements
- Output Accuracy Constraint: Less than \pm0.25% of Full Scale Range (FSR) over the complete operating temperature spectrum
- Digital-to-Analog Resolution: 12-bit binary precision providing tight, incremental scaling adjustment controls
- Diagnostic Architecture: Built-in Forced-Switch Diagnostics (FSD) that routinely test the switching circuitry of the redundant legs without bumping the process loop signal
- Loop Load Driving Thresholds:
- 300 \Omega maximum load when loop power supply is greater than 16 V DC
- 500 \Omega maximum load when loop power supply is greater than 20 V DC
- 700 \Omega maximum load when loop power supply is greater than 24 V DC
- 800 \Omega maximum load when loop power supply is greater than 28 V DC
- Electrical Failover Performance: 1 ms typical (3 ms absolute maximum) hot-switch time to alternate healthy circuit leg upon localized leg failure detection
- Electrical Potential Isolation: High-level optical and galvanic isolation barriers separating internal system logic buses from external field loop wiring loops
- Over-Voltage Defenses: Continuous reverse voltage and over-range electrical protection up to 36 V DC
- Power Supply Input Requirements: Nominal 24 V DC external loop excitation power supply (operational range: 20 V to 32 V DC)
- Net Hardware Mass: Approximately 1500 grams (1.5 kg)
- Operating Ambient Temperature Limits: 0 °C to +70 °C continuous duty

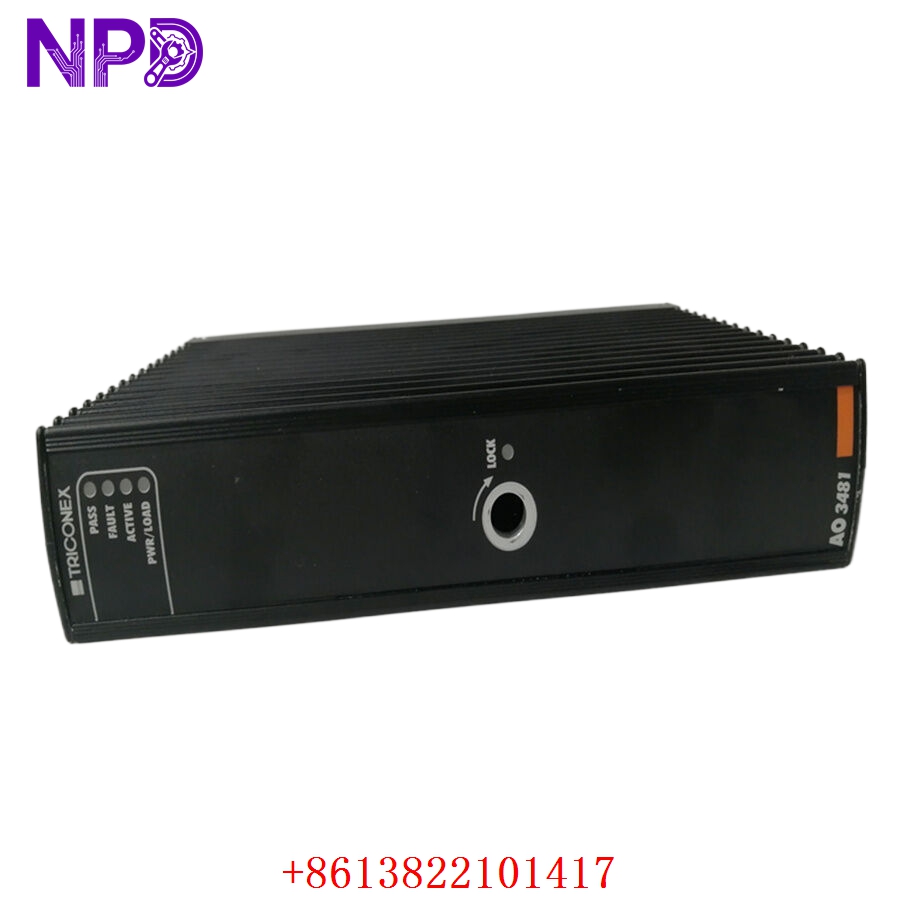

TRICONEX AO3481 3481

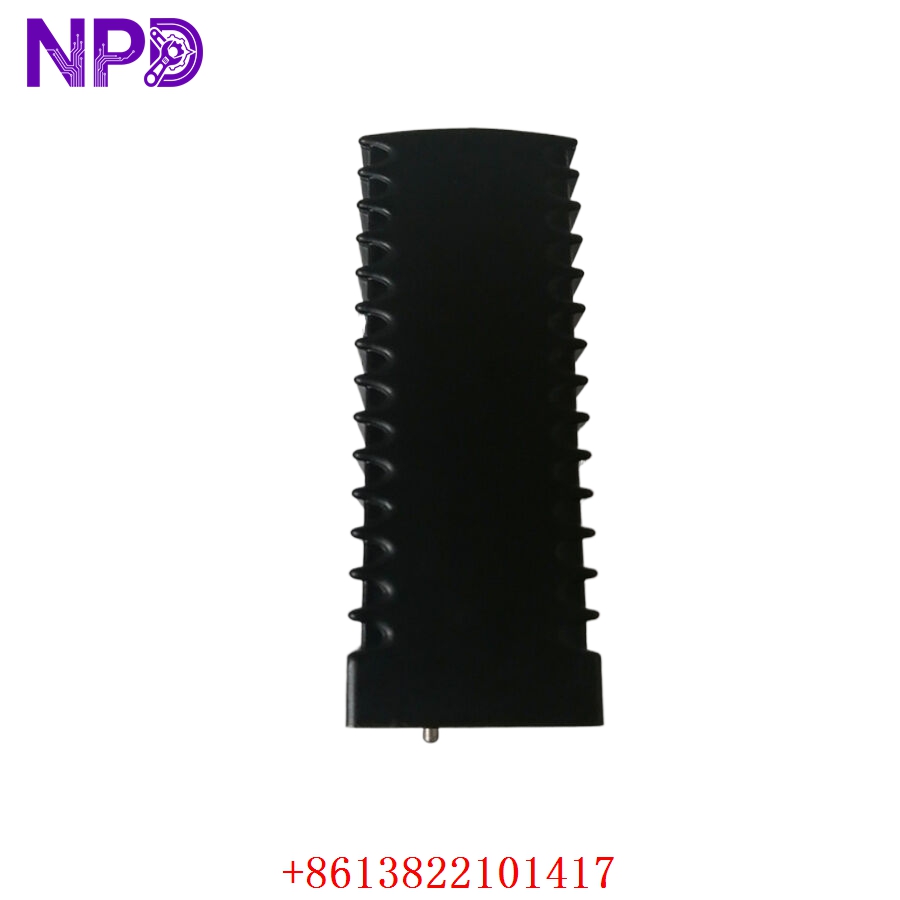

TRICONEX AO3481 3481
TRICONEX AO3481 3481
Application Scenarios & Pain Points
In functional safety deployment environments—such as refinery emergency isolation lines, high-pressure steam headers, and volatile gas processing facilities—the TRICONEX AO3481 serves as the final acting link of the Safety Instrumented System (SIS). While inputs and processing steps analyze parameters, this module drives the actual physical actuators that execute safety postures, like throttling a cooling line or positioning a fuel feed governor.
Because standard analog output cards can fail in an unsafe “stuck” state due to shorted transistors, the AO3481 uses a triplicated internal leg structure. Three independent processing circuits receive the output data simultaneously, and a hardware voting circuit selects a single healthy leg to drive the field terminal, shunting the remaining lines.
If one internal circuit leg breaks down or exhibits component drift, the module isolates it within 1 millisecond without causing a glitch on the active field line. Replacing a failing module promptly is vital: running on degraded internal paths eliminates your fault-tolerant margin, exposing the facility to an unmitigated dangerous failure or a nuisance trip if another internal line goes down.
Typical Application Scenarios
- Refinery Burner Management – Fuel Gas Control Valve Positioning
Delivers precise, safety-vetted 4-20 mA positioning currents to fuel gas control valves, ensuring immediate drop-shut execution when emergency stop triggers trip.
- Chemical Processing – Critical Exothermic Reactor Coolant Feed
Governs proportional safety valves regulating high-volume coolant flow rates to avoid runaway thermal events in process vessels.
- High-Pressure Gas Transport – Anti-Surge Throttling Matrices
Manages high-speed modulations of anti-surge bypass valves on major turbo-compressor trains to eliminate destructive mechanical hammering profiles.
Real-World Field Case: Resolving Leg Discrepancy Faults on a Boiler Throttle
Background: A petrochemical processing unit in Northeast China was running an automated high-pressure steam boiler array. Loop safety verification relied on an Invensys Tri-GP safety system architecture containing an AO3481 analog output module.
The Problem: During a seasonal turnaround check, the engineering workbench flashed a “Leg B Output Diagnostic Discrepancy” warning flag accompanied by a cycling amber status LED on the front face of the module. While the module’s internal voting layout kept the boiler control valve stable via Leg A and Leg C paths, the module’s safety rating was compromised. The system could no longer perform effective 2oo3 validation checks on that specific loop.
The Solution: The facility instrumentation supervisor reached out to our logistics hub. We pulled an exact matching TRICONEX AO3481S2 module from our surplus stock, ran comprehensive 4-20 mA accuracy sweep simulations against variable load profiles (300 to 800 \Omega) on our test fixture, verified the 1 ms leg failover response mechanism, and shipped the unit via premium regional express courier.
The Result:
- Delivery Benchmark: The card reached the site instrument shop inside of 15 hours.
- Implementation: The technicians followed the online hot-swap protocol, replacing the faulted hardware slice inside the active chassis without shutting down the control rack power supplies.
- System Normalization: The active Tri-GP processor immediately integrated the new module, synchronized the channel data matrices, executed an automatic background Forced-Switch Diagnostic test, and turned the front-panel status lights back to clean solid green. The loop returned to full fault tolerance without disturbing the running steam process.
Compatible Replacement Models
Ensure you cross-reference any suffix tags on the safety controller hardware array to maintain proper software compilation alignments.
- TRICONEX AO3481 / 3481 S2 (Exact Model Validation) → Direct Drop-in Replacement
- Configuration: Triplicated safety analog output card layout using standard 4-20 mA signaling formats.
- Action: Slide the card directly into the designated chassis slot position. The system will recognize the module configuration and restore redundant loop protection automatically.
- Alternative Tricon 3482 Series High-Density Output Cards → Incompatible Architecture
- Differences: The 3482 series features completely different hardware mounting shapes, high-density connection pins, and distinct physical chassis rail constraints. They are intended for larger flagship Tricon system slots rather than the compact Tri-GP subrack layout.
- Recommendation: Do not substitute a 3481 model with a 3482 variant under any operational circumstances.
Troubleshooting Quick Reference
Keep this diagnostic table handy when assessing front-panel indicators on an active AO3481 safety block.
| Front Indicator Light | Probable Root Cause | Module Component Relevancy | Field Diagnostic Test Steps | Action / Fix Protocol |
| “FAULT” LED turns Solid Red | Internal component watchdog check failed or hardware voter circuit is dead | ✅ High | Review the internal system event logger inside the TriStation utility to identify specific error codes. | Cycle power to the slot. If the hard fault indicator returns immediately, the module’s safety circuits are compromised and it must be replaced. |
| “ACTIVE” LED is OFF; loop reads 0 mA | Missing external 24 V DC loop excitation voltage feed | ⚠️ Medium | Use a digital multimeter to measure the voltage across the external loop power supply terminal blocks. | Verify that external line circuit breakers are closed and that the loop power supplies are outputting a stable 24 V DC. |
| “LEG” status LED flashes amber intermittently | An internal circuit channel failed a background Forced-Switch Diagnostic test | ✅ High | Check the hardware status screen within the diagnostic monitor to determine if Leg A, B, or C is drifting. | The internal voter is maintaining the current process loop via the remaining healthy legs. Replace the module to restore full system redundancy. |
| Loop output signal drifts past \pm0.25% tolerance | Component aging or thermal degradation in an analog circuit path | ✅ High | Connect a calibrated fluke current calibrator in series with the loop line and compare readings against the program command. | If calibration parameters cannot be realigned or the module fails to maintain stable scaling values, replace the card. |
❗ EXTERNAL SAFETY INTEGRITY WARNING: While the TRICONEX AO3481 module supports hot-swapping under live process conditions, you must verify that the adjacent main processors and communication buses are fully stable before pulling the card. Never attempt to replace a safety loop card while the main chassis is reporting an active system diagnostic error.
