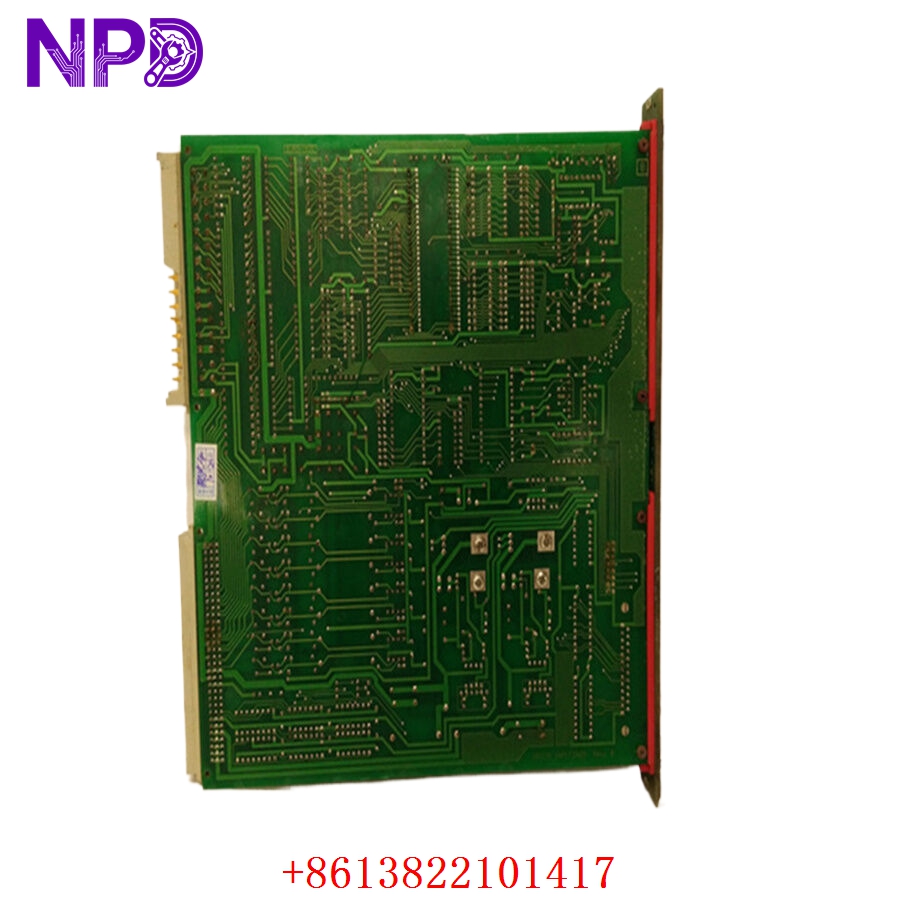

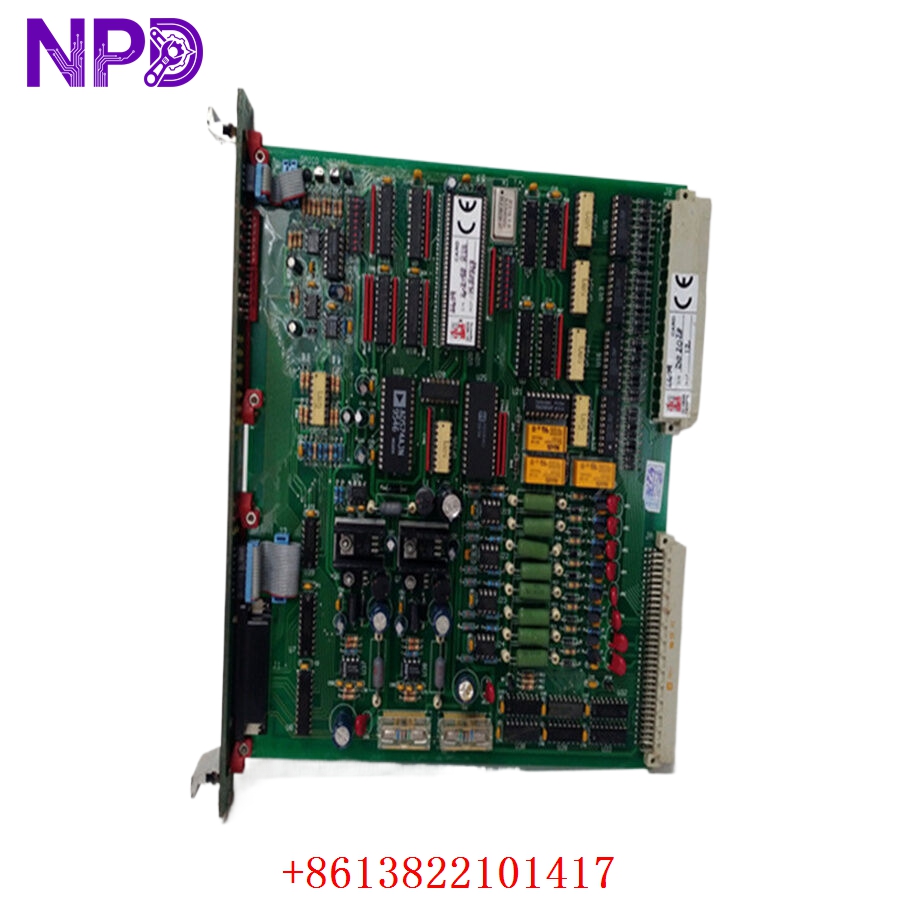

Description
Model: SES 2409 / INP2409
· Brand: SES (Systems Engineering & Supply / Standard Engineering)
· Series: Analog Signal Processing Series
· Core Function: ⚙️ High-precision signal conditioning and analog-to-digital conversion
· Product Type: 📟 Analog Input Module
· Key Specs: 🛠️ Multi-channel input, configurable signal ranges, isolated I/O
- Input Type: Configurable (4-20 mA, 0-10 V, or Thermocouple/RTD variants)
- Channel Count: Typically 8 or 16 channels (dependent on sub-model)
- Isolation: Optical isolation between field signals and backplane
- Accuracy: ±0.1% of full scale
- Mounting: Backplane modular slot
- Operating Temp: 0 °C to 55 °C
- Communication Interface: Proprietary system backplane protocol
Application Scenarios & Engineering Insights
The SES 2409 series is a specialized module often integrated into older proprietary distributed control systems (DCS). The most common “pain point” I encounter with these units is signal drift caused by aging electrolytic capacitors on the input stage. If your readings have become jittery or consistently offset, check the power supply rails on the module before concluding that the input logic is damaged.
Typical Use Cases:
- Chemical Processing – Flow Monitoring
Digitizing 4-20 mA signals from mass flow meters for real-time batch control.
- Power Generation – Turbine Monitoring
Processing high-precision analog signals for valve positioning and pressure regulation.
- Food & Beverage – Temperature Control
Handling sensitive thermocouple signals from sterilizers and ovens where accuracy is critical for compliance.
Troubleshooting Pro-Tip:
Since these are older modules, check the edge connector pins on the back of the module. Over years of thermal cycling, these can oxidize, creating high-resistance connections that manifest as intermittent analog signal drops. A quick clean with electronic contact cleaner (non-residue) often solves “ghost” input failures.
Compatible Replacement Models
| Original Model | Replacement | Compatibility | Difference |
| SES 2409 | SES 2409-R1 | ✅ Direct | Revised PCB layout; same interface |
| SES 2409 | INP2409-A | ✅ Direct | Enhanced noise immunity |
| SES 2409 | Modern PLC I/O | ❌ System Modification | Requires field wiring and software overhaul |
Note: If your system is mission-critical, sourcing an original “New Surplus” unit is often safer than attempting to retrofit a modern module, which would require re-terminating the field wires and updating the control software.
Troubleshooting Quick Reference
| Symptom | Probable Cause | Action |
| Signal Constant 4 mA | Loop power failure or break | Check loop power supply and field wiring |
| Random Signal “Jitter” | Ground loop or EMI | Ensure shield wire is grounded at ONE end only |
| Module Not Detected | Backplane connection failure | Reseat module; check backplane pins for bent pins |
| High Offset Error | Component aging (capacitors) | Verify signal at module input terminal |
Safety Warning: Always verify the field signal voltage/current before connecting it to the module. If you accidentally bridge a high-voltage loop (like 110 V AC) into an analog input channel, the module will be permanently damaged instantly. Use a series fuse if the field device is powered by a different source.
