Description
Product Core Brief
| Attribute | Detailed Information |
| Model | TRICONEX 3664 |
| Brand | Schneider Electric (Triconex) |
| Series | Tricon v9 / v10 / v11 Systems |
| Core Function | Dual Digital Output for TMR Safety Systems |
| Product Type | Digital Output Module (DO) |
| Key Specs | 24 V DC / Dual Point Isolation / TMR Architecture |
Key Technical Specifications
- Output Type: 24 V DC, Dual (Commoned or Isolated depending on configuration)
- Points: 8 or 16 points (typical for 3664 series architecture)
- Architecture: Triple Modular Redundant (TMR) – 3 independent branches
- Nominal Voltage: 24 V DC
- Operating Range: 18-30 V DC
- Output Current: 2 A per point (Maximum)
- Leakage Current: < 4 mA
- Isolation: 1,500 V DC (Channel-to-Channel and Channel-to-Backplane)
- Self-Test Features: Comprehensive routine testing of the output switches and voting circuitry

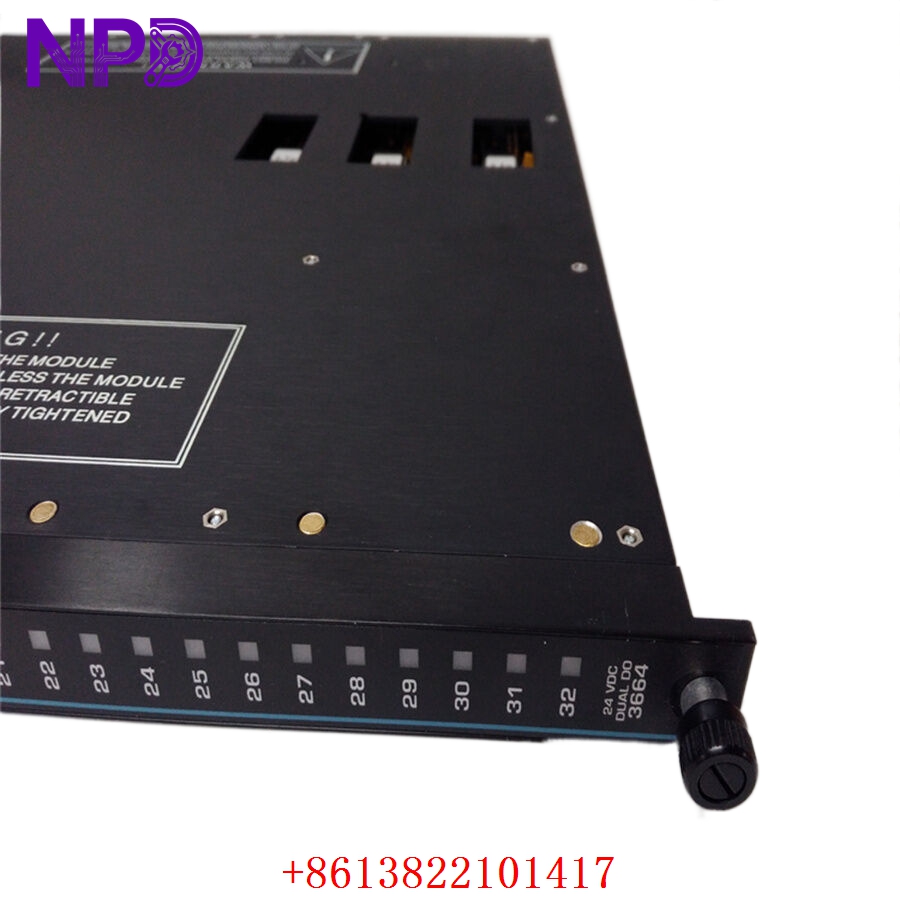

TRICONEX 3664

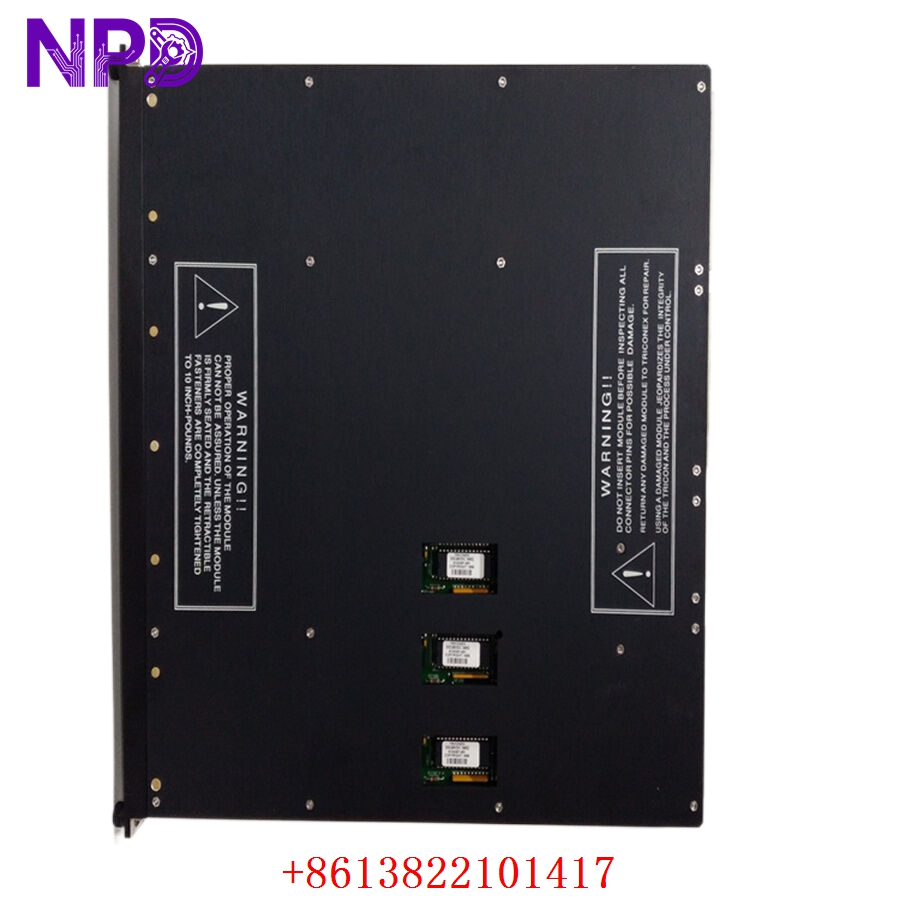

TRICONEX 3664

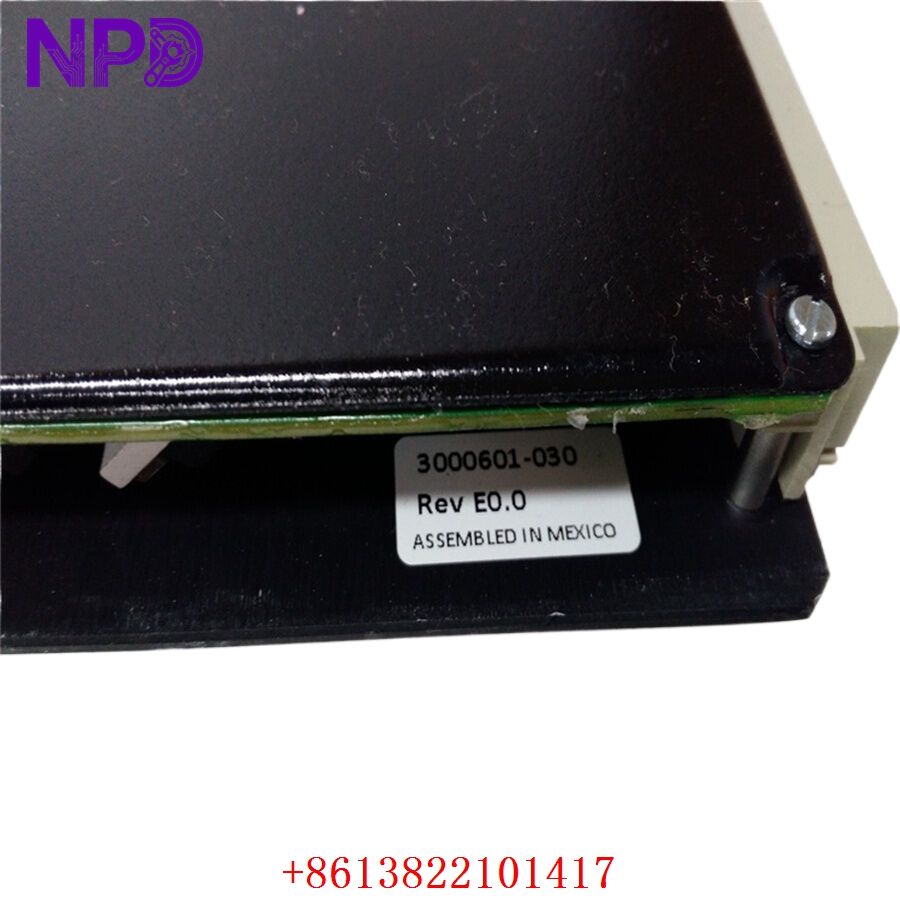

TRICONEX 3664
Application Scenarios & Pain Points
The TRICONEX 3664 is a critical component of the Tricon Triple Modular Redundant (TMR) safety system. In a TMR setup, three separate legs of logic vote on the output state. The 3664 is designed to ensure that if one branch of the system fails, the output to the field (like a fuel shut-off valve) remains in a safe, controlled state.
The Engineering Challenge:
Triconex systems are the “Gold Standard” for SIL-3 safety applications. When a 3664 module reports a “Load Fault” or a “Pass/Fail” LED turns red, the system’s voting integrity is compromised. While the TMR architecture allows the plant to keep running, you are effectively down to a “1-out-of-2” or “2-out-of-2” voting scenario. Replacing these modules immediately is the only way to restore the full TMR safety rating and avoid a forced shutdown during the next minor glitch.
Typical Application Scenarios:
- Emergency Shutdown (ESD)
Managing the final control elements (solenoids) that isolate a plant during a hazardous event.
- Fire & Gas (F&G) Systems
Triggering high-current beacons, sirens, or fire suppression release valves.
- Burner Management Systems (BMS)
Controlling fuel gas valves for large utility boilers where reliability is a life-safety issue.
- Turbine Protection
Operating trip solenoids for steam or gas turbines to prevent overspeed conditions.
Case Study: The “Stuck” Solenoid in a Refinery
Background: A refinery in Southeast Asia utilized a Tricon v10 system for its ESD logic. During a routine scan, the system flagged a “Fault” on a 3664 output module.
Problem: The module reported a “Loop Fault” on Point 4, which controlled the main flare header valve. Although the redundant legs kept the valve in the correct position, the safety engineers were concerned that a second failure would prevent the valve from opening during an actual emergency.
Solution: We provided a replacement 3664 from our emergency stock. Because the module supports “Hot-Replacement,” the maintenance team swapped the card while the process was live.
Result:
- Safety Restoration: The TMR voting was restored to “3-2-0” status within 24 hours.
- Zero Downtime: No shutdown was required to perform the replacement.
Compatible Replacement Models
The 3600 series has several variations based on voltage and current requirements.
| Original Model | Alternative Model | Compatibility Level | Notes |
| 3664 | 3624 | ❌ Incompatible | 3624 is for 24 V DC (Commoned), 3664 is Dual. |
| 3664 | 3664 (Series A/B) | ✅ Direct Replacement | Fully interchangeable across Tricon versions. |
| 3664 | 3674 | ❌ Incompatible | 3674 is for 48 V DC applications. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check | Action |
| “PASS” LED is Off | Internal Hardware Fault | ✅ High | Reseat the module; check the Tricon Diagnostic Tool (TDT). | If “PASS” stays off, internal voting logic has failed. Replace module. |
| “FAULT” LED is On | Field Wiring / Load Issue | ⚠️ Medium | Check for a blown fuse in the field or a shorted solenoid. | Fix field wiring; the module is likely fine and protecting itself. |
| “LOAD” LED Blinking | Open Circuit | ⚠️ Medium | Measure resistance of the connected load at the terminal panel. | Ensure the load (solenoid) is connected and drawing >10mA. |
| Active/Waiting LEDs mismatch | Sync Error | ⚠️ Medium | Check the inter-processor communication status in the TDT. | Usually fixed by a module reseat or firmware sync. |
Field Engineer’s Insight:
When you replace a 3664, pay close attention to the External Termination Panel (ETP). Often, a “module fault” is actually a blown fuse on the ETP or a loose ribbon cable connection. Always check the ETP fuses before condemning a $5,000 module. Also, the 3664 is a Dual Digital Output module—make sure your application doesn’t require the commoned ground configuration found in the 3624, or you’ll have grounding issues that are a nightmare to track down.
Safety Warning: These modules are used in SIL-3 loops. Never bypass a fault in the software to clear a 3664 alarm. If the module says it’s broken, it’s because the internal voting logic can no longer guarantee a safe state. Replace it.
