Description
Product Overview

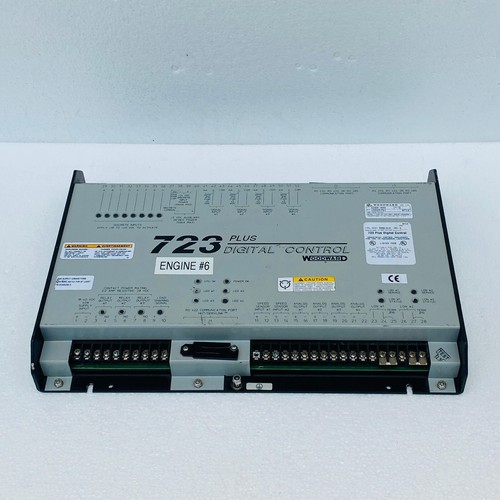

The Woodward 9906-619 is a high-performance 723 Plus digital control designed for reciprocating engines and gas turbines. It manages critical functions like speed control, load sharing, and torque limiting in complex power generation and industrial pumping systems. The unit provides high-speed processing capabilities to ensure rapid transient response and stable governor operation under fluctuating load conditions.
Technical Specifications
- Model ID: 9906-619 (723 Plus Series)
- Dimensions: 280 mm x 195 mm x 65 mm
- Weight: 2.10 kg
- Country of Origin: United States
- Power Supply: 18–40 VDC
- Analog Inputs: Multiple configurable 4–20 mA / 0–5 V channels
- Enclosure: Rugged metal chassis for chassis or panel mounting
Application Areas
⚙️ Reciprocating Engine Governor Systems
⚡ Industrial Power Generation Plants
💨 Mechanical Drive Gas Turbines
🌊 Marine Propulsion Control
🏭 Compressor and Pump Stations
Operational Guidelines
Power-Up / Power-Down Sequence
- Startup: Check all field wiring and terminal connections. Apply the 24 VDC auxiliary power to the control unit. Verify that the CPU status LED flashes green, indicating successful self-diagnostics, before enabling the engine start signal.
- Shutdown: Stop the engine or turbine via the master control system first. Allow the prime mover to come to a complete rest. Once the system is safely offline, isolate the DC power supply breaker to the 723 Plus unit.
Step-by-Step Standard Operation
- Pre-Check: Ensure magnetic pickups (MPUs) and actuator linkages are physically secure and calibrated.
- Power On: Energize the controller and verify that no active fault codes or critical alarms are present on the diagnostic display.
- Mode Select: Choose between Isochronous or Droop speed control modes based on your grid configuration.
- Initiate Start: Command the engine start sequence; monitor the controller as it manages fuel demand curves during the cranking phase.
- Load Integration: Once rated speed is achieved, engage the generator breaker and allow the unit to manage automated load sharing.
Frequently Asked Questions
Q: What does a flashing red fault LED indicate? A: This typically signals an actuator open-circuit fault, an MPU speed signal loss, or an internal memory checksum error. Use the Watch Window software to read the specific error code.
Q: Can this unit handle parallel generator operation? A: Yes, the 723 Plus features built-in proportional load-sharing capabilities to operate in parallel with other units or utility grids.
Q: How do I adjust the PID tuning parameters? A: Gain, Reset, and Actuator parameters can be adjusted in real time using a handheld programmer or Woodward’s dedicated Watch Window service tool connected to the serial port.
