Product Parameters
- Model Number: H1111.0103
- Part Number: 75669 / H6029
- Processor Speed: 300 MHz (High-performance RISC architecture)
- System Platform: Common Control System (CCS) / Damatic Strategy
- Input Voltage: 24V DC
- Communication Ports: Dual Ethernet (10/100 Mbps), RS-485, and CAN-bus interface
- Memory: High-density Flash for application logic and RAM for real-time data
- Operating Temperature: -15°C to +70°C (Extended maritime range)
Product Description

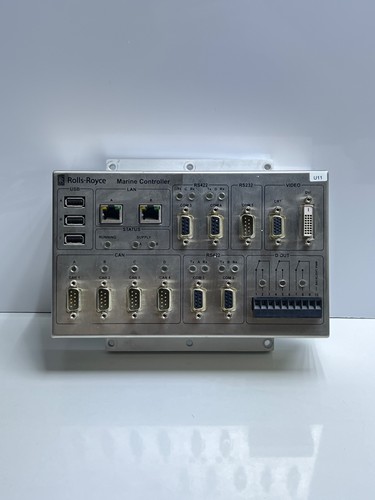

The Rolls-Royce Marine H1111.0103 is a robust industrial controller designed for the specialized “Common Control System” used across various maritime vessel types. Featuring a 300 MHz processor, this unit provides the computational power required to manage complex shipboard systems including propulsion control, dynamic positioning, and power management. The “H1111” series is known for its modular architecture, allowing it to interface with a wide range of I/O modules via dedicated fieldbus networks. Its ruggedized construction is specifically engineered to handle the vibration, humidity, and electromagnetic interference commonly found in engine rooms and bridge consoles.
Application Fields
This controller is a primary component in the automation suites of offshore supply vessels (OSVs), cruise ships, and commercial cargo vessels. It is frequently utilized within the Umas and Acon monitoring and control systems. Key applications include the management of Rolls-Royce Bergen engines, Ulstein propulsion units, and integrated ship automation systems (IAS) where high availability and real-time responsiveness are mission-critical.
Product Specifications
- Weight: 1.40 kg
- Dimensions: 180 mm x 135 mm x 65 mm
- Origin: Norway / United Kingdom
Operational Precautions
- Firmware Matching: Always ensure the controller’s firmware version is compatible with the existing vessel system software (Damatic/CCS) before installation to prevent communication failure with the HMI.
- Grounding: Verify that the DIN rail or mounting plate is properly grounded to the ship’s hull to protect the 300 MHz processor from static buildup and stray currents.
- Redundancy Configuration: If used in a redundant pair, ensure the synchronization link between the primary and standby H1111.0103 units is intact and tested during commissioning.
- Connectors: Handle the high-density multi-pin connectors with care; bent pins on the backplane can cause intermittent faults in the CAN-bus or Ethernet communication loops.
Recommended Similar Product Models
| Model Number | Part Number | Primary Function | Features |
|---|---|---|---|
| H1111.0102 | 75668 | Processing Module | Standard Performance |
| H1111.0104 | 75670 | Processing Module | High-Speed Version |
| H1212.0001 | 75680 | I/O Interface | Analog/Digital Mixed |
| H1313.0002 | 75695 | Communication Board | Dual LAN Support |
| RRM-300-PS | 75700 | Power Supply | 24V DC / Redundan |
