Technical Parameters
- Model Number: PCS030Y4IP20P
- Manufacturer: Schneider Electric
- Current Rating: 30 Amperes
- Voltage Range: 380 – 415 VAC (400V Nominal)
- Phases: 3-Phase / 3-Wire or 4-Wire (System Dependent)
- Harmonic Mitigation: 2nd to 50th harmonic order
- Target Power Factor: Programmable from 0.7 leading to 0.7 lagging
- Response Time: < 1/4 cycle (Instantaneous current injection)
- Efficiency: > 97%
Product Description

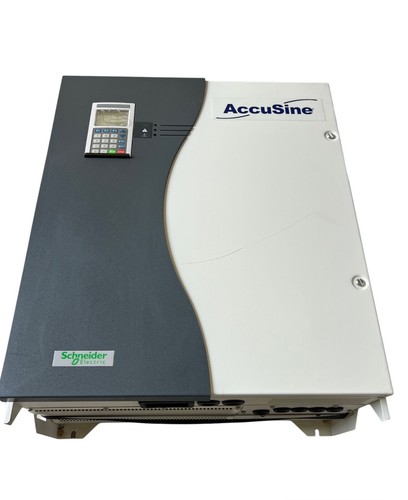

The Schneider AccuSine PCS+ (PCS030Y4IP20P) is an ultra-fast Active Harmonic Filter (AHF) designed to improve power quality in demanding industrial and commercial electrical networks. Unlike passive filters, the AccuSine PCS+ actively monitors the nonlinear load current and injects an adaptive “anti-harmonic” current to cancel out distortion. This 30A unit is specifically optimized for localized harmonic mitigation at the load level or for smaller distribution panels, providing not only harmonic cancellation but also power factor correction and load balancing.
Application Areas
- Variable Speed Drives (VFDs): Eliminating the harmonic distortion created by large concentrations of motor controllers.
- Data Centers: Stabilizing power quality for sensitive server power supplies and UPS systems.
- HVAC Systems: Improving efficiency in commercial buildings with high non-linear lighting and cooling loads.
- Industrial Plants: Reducing transformer overheating and preventing nuisance tripping of circuit breakers due to harmonic resonance.
Product Specifications
- Weight: 45.0 kg
- Dimensions: 1300 mm x 250 mm x 320 mm (Approximate Wall-Mount Form Factor)
- Country of Origin: USA / France
- Enclosure Rating: IP20 (Indoor Use)
- Mounting: Wall-mounted or integrated into a switchgear cubicle
Operating Precautions
- CT Selection: Ensure the Current Transformers (CTs) are of high accuracy (Class 0.5 or better) and correctly phased; incorrect CT orientation is the most common cause of commissioning failure.
- Ventilation: Active filters generate heat due to high-speed switching; maintain minimum clearances and ensure the cooling fans are unobstructed to prevent thermal derating.
- Parallel Operation: Up to 10 AccuSine units can be connected in parallel; however, they must be networked via the internal communication bus to ensure synchronized current injection.
- Harmonic Limits: While the unit can mitigate up to the 50th harmonic, prioritize lower-order harmonics (5th, 7th, 11th) in the software settings for maximum efficiency in typical industrial environments.
