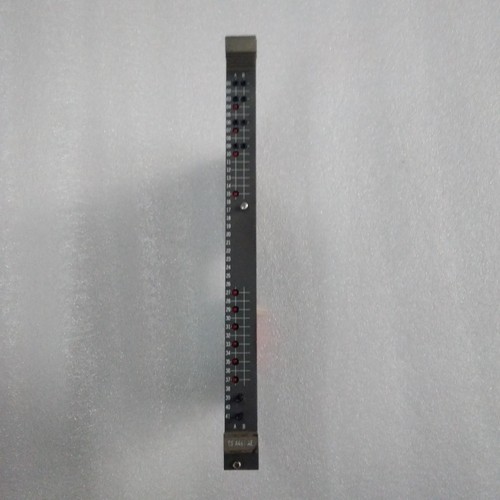

The ABB HIEE400106R1 CSA464AE is a high-performance interface module designed for integration within ABB’s specialized control systems. It acts as a bridge for communication and signal processing, ensuring seamless data exchange between the central processing units and peripheral industrial hardware.
To learn more about procurement or technical support for this specific part, please visit our HIEE400106R1 CSA464AE contact page.
Technical Description and Parameters
The CSA464AE is built to handle complex industrial protocols and high-speed data transmission. It is often utilized in power electronics and excitation systems where precision and timing are critical.
- Module Type: Interface / Control Module
- Series: UNITROL / Advant / High Power Electronics
- Processor Compatibility: Compatible with ABB AC 800PEC and related controller families.
- Communication Interface: Fiber optic or high-speed serial links (application dependent).
- Power Supply: Standard internal system voltage (typically 24V DC logic).
- Signal Processing: Real-time digital signal processing for high-frequency control loops.
Product Datasheet Specifications
- Dimensions: 233 mm x 160 mm x 20 mm (Standard Eurocard format)
- Weight: 0.65 kg (1.43 lbs)
- Country of Origin: Switzerland / Germany
- Mounting Type: Subrack/Rack-mounted
- Protection Rating: IP20 (when installed in a proper enclosure)
Application Fields
The HIEE400106R1 is typically found in environments requiring massive power regulation and sophisticated automation:
- Excitation Systems: Used in UNITROL systems for large synchronous generators in power plants.
- Static Frequency Converters: Managing energy flow in grid-scale converters.
- Metals and Mining: Controlling high-power motor drives and heavy-duty industrial rectifiers.
- Renewable Energy: Integration within large-scale wind or solar power conversion systems.
Product Instructions for Use
- Anti-Static Precautions: This module contains sensitive CMOS components. Always wear a grounded ESD wrist strap before handling the board.
- Hardware Addressing: Ensure that the jumpers or DIP switches (if applicable) are set correctly according to the system’s address map before insertion.
- Installation: Slide the module into the designated slot of the rack. Ensure the connectors are fully seated before tightening any retaining screws.
- Firmware Sync: Upon installation, verify that the module firmware version is compatible with the main controller software version to avoid communication mismatches.
Q&A: Frequently Asked Questions
Q: Is the CSA464AE hot-swappable? A: While many ABB systems support modular replacement, it is strongly recommended to power down the specific subrack or follow the system-specific “Hot Swap” procedure to prevent transient electrical damage.
Q: What is the difference between HIEE400106R1 and other CSA series boards? A: The R1 suffix denotes a specific revision level. While boards may look similar, the internal logic or component tolerances are often optimized for specific excitation or control tasks. Always match the full part number.
Q: How do I troubleshoot a communication loss? A: Check the fiber optic links (if used) for bends or dust. Verify the status LEDs on the front faceplate; a red “FAULT” LED usually indicates an internal self-test failure or a power-on-reset error.
