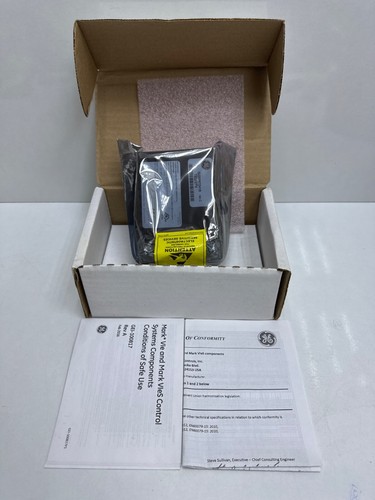

The GE IS220PRTDH1B is a high-precision Resistance Temperature Detector (RTD) input module engineered for the GE Mark VIe Distributed Control System (DCS). This module is designed to monitor temperature signals from various industrial processes, providing highly accurate, reliable, and noise-immune temperature data. It is widely used in power generation and heavy industrial applications to ensure the safe and optimal operation of rotating machinery and plant equipment.
Product Specifications
| Feature | Specification |
| Model | GE IS220PRTDH1B |
| Series | Mark VIe |
| Module Type | RTD Input Module |
| Inputs | 12 Differential RTD Input Channels |
| Compatibility | GE Mark VIe Control Systems |
| Weight | Approx. 0.35 kg |
| Operating Temp | -30°C to +65°C |
| Origin | United States |
Applications
The PRTD module is essential for precise thermal management:
- Stator and bearing temperature monitoring in turbines
- Industrial process temperature supervision
- Cooling system monitoring in large generators
- Precision feedback for temperature-controlled industrial processes
- Integration into safety and alarm systems for plant protection
Usage Instructions
- Handling: This module is an ESD-sensitive device. Always utilize an anti-static wrist strap when handling the unit to avoid damaging the sensitive analog input circuitry.
- Installation: Ensure the Mark VIe I/O rack is de-energized. Carefully insert the IS220PRTDH1B into the designated I/O slot, aligning it with the guide rails until the backplane connectors seat firmly.
- Wiring: Connect the RTD field wiring to the corresponding terminal board (such as the STUR terminal board). Ensure that three-wire or four-wire configurations are correctly matched to the terminal board wiring diagram to maintain measurement accuracy.
- Configuration: Use the GE ToolboxST software to configure the input type (e.g., Pt100, Ni100, or Cu10) and define the alarm/trip setpoints for each channel.
- Validation: Use a precision resistance decade box or a calibrator to inject known resistance values into the field terminals to verify the accuracy of the temperature readings displayed in the HMI.
Frequently Asked Questions (Q&A)
Q: What is the primary difference between the H1A and H1B revisions?
A: The “B” revision typically incorporates improvements in component reliability, hardware noise filtering, or manufacturing processes. Always ensure the project-specific configuration file is compatible with the “H1B” hardware ID in ToolboxST.
Q: Can this module monitor thermocouple inputs?
A: No, the IS220PRTDH1B is specifically designed for RTD inputs. For thermocouples, you should utilize the dedicated IS220PTCI (Thermocouple Input) module.
Q: Does the module require calibration?
A: The module is factory-calibrated. Under normal operating conditions, field-level calibration is typically not required unless you suspect an accuracy drift or have specific regulatory requirements for periodic validation.
