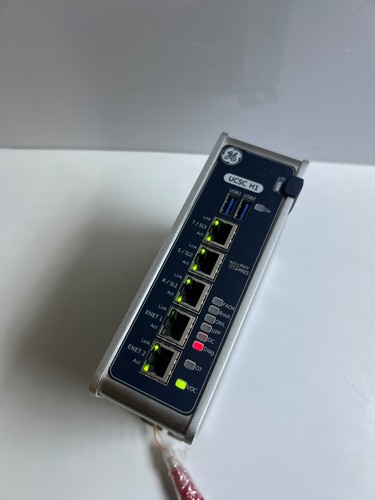

The IS420UCSCH1B (part of the UCSC H1 series) is a high-performance Controller Module developed by GE (General Electric) for the Mark VIe Distributed Control System (DCS). This module serves as the “brain” of the control system, responsible for executing complex logic, managing I/O data, and coordinating communications between various field devices and the supervisory control network.
Product Specifications
| Feature | Details |
| Model Number | IS420UCSCH1B-B-V0.1-A |
| Series | Mark VIe (UCSC H1) |
| Device Type | Controller Module (Main Controller) |
| Processor | High-speed industrial microprocessor |
| Communication | Dual 10/100/1000 Ethernet ports |
| Voltage Input | 24 VDC (nominal) |
| Operating Temp | -30°C to +65°C (-22°F to +149°F) |
| Weight | Approximately 0.8 kg – 1.2 kg |
| Country of Origin | USA |
Application Fields
The UCSC H1 controller is widely used in power generation and heavy industrial sectors where high availability and reliability are critical. Its primary applications include:
- Gas & Steam Turbine Control: Managing fuel control, speed regulation, and synchronization.
- Complex Process Control: Executing advanced control algorithms for refineries and petrochemical plants.
- Power Plant Automation: Serving as the central node for integrated boiler or turbine management systems.
Product Usage Instructions
This module is designed for mounting within the standard GE Mark VIe control cabinet.
- Handling: Ensure you are properly grounded using an ESD wrist strap, as this unit contains sensitive micro-electronics.
- Insertion: Align the module with the cabinet backplane connector and press firmly until the locking tabs engage.
- Connectivity: Connect the Ethernet cables to the designated ports for network communication. Ensure the cable shielding is correctly grounded.
- Configuration: The module requires specific firmware and application code (ControlST software) to be downloaded during commissioning.
- Diagnostics: The front-mounted LED indicators provide immediate status feedback (Power, Run, Fault, and Network Link status).
Frequently Asked Questions
Q: Is the IS420UCSCH1B a “Hot-Swappable” module?
A: Yes, in a properly configured Mark VIe system that supports redundancy, these controllers are generally designed to be replaceable while the rack is powered, though you should always consult your site-specific safety manual before proceeding.
Q: What does the “B-V0.1-A” designation mean?
A: These codes refer to the hardware revision level and firmware version. It is essential to ensure that your replacement module has a compatible version to match the existing cabinet hardware and software application.
Q: How can I troubleshoot a failed controller?
A: Check the front panel LEDs. If the “Fault” LED is illuminated, connect to the unit via the ControlST software to view diagnostic logs, which will provide specific details on hardware, memory, or communication errors.
Q: Can this controller be used in a standalone configuration?
A: While it is optimized for the Mark VIe DCS architecture, it can be used in smaller system deployments; however, it still requires the supporting I/O pack infrastructure to function effectively.
