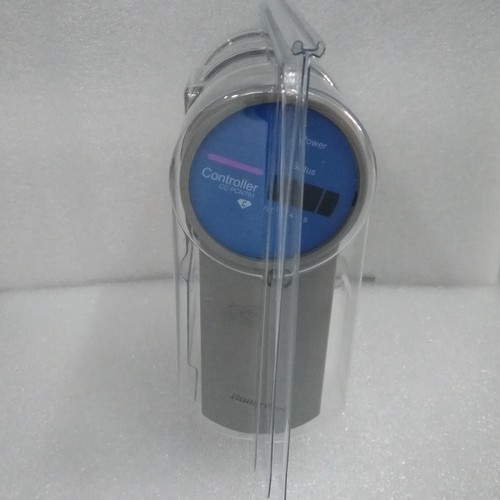

The Honeywell CC-PCNT01 (Part Number 51405046-175) is the primary processing engine for the Experion® PKS C300 control system. Unlike standard I/O modules, the CC-PCNT01 is a high-performance controller designed to execute complex control strategies, manage peer-to-peer communications, and interface directly with the Experion network. Utilizing Honeywell’s Series C vertical form factor, this module provides superior heat dissipation and high-density mounting, making it the “brain” of modern industrial process automation.
Key Product Specifications
- Module Type: C300 Controller Processor
- Model Number: CC-PCNT01
- Part Number: 51405046-175
- Processor Speed: High-speed execution environment for Control Execution Environment (CEE)
- Memory: Integrated flash memory for strategy storage and RAM for runtime execution
- Redundancy: Supports 1:1 hardware redundancy
- Communication: Dual FTE (Fault Tolerant Ethernet) ports via the IOTA
- Dimensions: 160 mm x 120 mm x 35 mm
- Weight: 0.65 kg
- Country of Origin: USA / Thailand
Application Fields
The CC-PCNT01 is deployed in environments requiring high-speed, deterministic control:
- Oil & Gas: Managing complex distillation columns and pipeline compressor stations.
- Chemical Manufacturing: Coordinating batch processing and reactor temperature control.
- Power Generation: Operating as the master controller for boiler-turbine coordination.
- Mining & Metals: Controlling large-scale grinding circuits and flotation cells.
Usage Instructions
- Installation: The CC-PCNT01 must be mounted on a Series C Controller I/O Termination Assembly (IOTA). Align the module with the redundant or non-redundant IOTA connectors and press firmly until the locking mechanisms click.
- Network Setup: Connect the FTE cables to the IOTA. The CC-PCNT01 uses Honeywell’s Fault Tolerant Ethernet to ensure communication persists even if one network cable or switch fails.
- Loading Strategies: Use the Experion Control Builder to design your control loops (PID, Logic, Device Control). Once validated, “load” the strategy to the CC-PCNT01.
- Redundancy Pairing: If using a redundant pair, ensure both modules have the same firmware revision. The system will automatically synchronize the primary and secondary controllers.
Q&A – Frequently Asked Questions
Q: What is the difference between the CC-PCNT01 and an I/O module? A: The CC-PCNT01 is the controller that makes decisions and runs the logic, while I/O modules (like the CC-PAIN01) simply act as the interface to the physical field equipment.
Q: Can I upgrade the firmware on the CC-PCNT01? A: Yes, firmware is updated via the Experion software suite. It is critical to follow the “Flash” procedures exactly to avoid bricking the module.
Q: Does it require a separate power supply? A: It draws power from the 24V DC bus integrated into the Series C rack/IOTA assembly.
Product News: The Core of Industrial Digitalization
