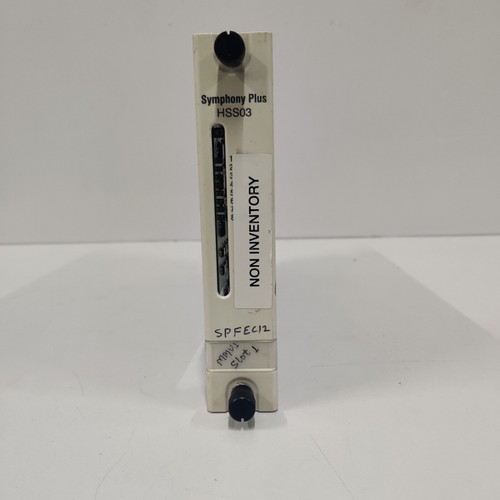

The newplcdcs ABB SPHSS03 SYMPHONY PLUS HYDRAULIC SERVO MODULE is a high-performance control module designed for the ABB Symphony Plus distributed control system environment. It delivers precise positioning and closed-loop control for industrial hydraulic actuators and proportional valves.
- ๐ Product Name: ABB Symphony Plus Hydraulic Servo Module
- ๐ Part Number (P/N): SPHSS03
- ๐ Manufacturer: ABB
- ๐ Operating Voltage: 24V DC nominal (rack supplied)
- ๐ Current Draw: 0.7A nominal
- ๐ Dimensions: Standard Symphony Plus module form factor (approx. 180 mm x 100 mm x 30 mm)
- ๐ Weight: 0.50 kg
- ๐ Country of Origin: Sweden / United States
- ๐ Power Rating: 18W
- ๐ Installation Type: Rack slot mounting within Symphony Plus controller chassis
Application Fields
This hydraulic servo module is widely deployed across power generation plants, water treatment facilities, pulp and paper mills, and heavy industrial process automation systems. It functions as the core interface for managing precise turbine valve positioning, hydraulic governor systems, and heavy-duty industrial actuator loops.
Product Usage Precautions
Ensure that electrostatic discharge (ESD) wrist straps are utilized during handling and installation to protect sensitive electronic components. Verify that incoming backplane power rails are stable and properly grounded to prevent control signal drift. All installation, card replacements, or wiring adjustments must be executed by qualified instrumentation engineers while system power is safely de-energized.
Parameter Settings & Modification Methods
Module configuration, control loops, and operational parameters are managed through the ABB Symphony Plus engineering software tools connected via the system communication bus. Technicians can adjust proportional and integral gains, valve deadband compensation, and input feedback scaling. Configuration updates must be compiled and downloaded to the controller in accordance with plant safety protocols.
Manual / Automatic Mode Switching
Operational control modes, shifting between manual operator setpoints and automated loop execution, are coordinated through supervisory HMI stations and system logic. The module processes these mode transitions smoothly, ensuring stable actuator positioning without abrupt hydraulic movements.
Emergency Stop Operation
In the event of an emergency trip or safety interlock activation, the servo module instantly interrupts output current to the proportional valve coils, safely venting hydraulic pressure or shifting final control elements to a pre-defined fail-safe position.
Frequently Asked Questions (Q&A)
- Q: What indicates a channel fault on the module diagnostic indicators? A: A solid fault LED usually points to an open feedback sensor loop, power supply voltage drop, or internal hardware exception.
- Q: Can the SPHSS03 module be hot-swapped in a live chassis? A: Hot-swapping capabilities depend on the specific system redundancy architecture; always consult the ABB Symphony Plus hardware manual before servicing live racks.
- Q: What type of feedback devices are supported by this module? A: The module is engineered to process standard analog position feedback signals such as LVDTs or 4-20mA position transmitters.
Industry News & Development
Industrial process automation sectors continue to prioritize lifecycle extensions for established distributed control systems. Upgrading or replacing legacy hardware with certified modules like the ABB Symphony Plus series allows plants to maintain high reliability, improve control loop precision, and avoid costly full-scale system migrations.
