๐ง Product Overview
The Allen-Bradley 2198-P070 is a Kinetix 5700 DC Bus Supply designed to provide DC-bus power for multi-axis servo drive systems. It is rated for a 195โ528V AC RMS three-phase input and provides a 25A continuous DC-bus supply. The module uses a 55 mm-wide form factor within the Kinetix 5700 modular drive platform.
In a typical Kinetix 5700 installation, the DC Bus Supply works together with single-axis or dual-axis inverter modules. Rockwell specifies the 2198-P070 as one of the DC-bus supply modules for the platform, rather than as a standalone servo drive.
For replacement or expansion work, the exact Series/revision, terminal condition, bus connectors, and installed accessories should be checked against the existing system before installation.
๐ Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley / Rockwell Automation |
| Model | 2198-P070 |
| Series | Kinetix 5700 |
| Product Type | DC Bus Supply |
| Input Voltage | 195โ528V AC RMS, 3-phase |
| Continuous DC-Bus Current | 25A |
| Peak Output Current | 70A |
| Module Width | 55 mm |
| System Type | Kinetix 5700 Multi-Axis Servo Drive System |
| Typical Application | Central DC-bus power supply for Kinetix 5700 inverter modules |
| Mounting | Kinetix 5700 modular drive system |
| Lifecycle Status | Active according to Rockwell Automation |
| Country of Origin | Multiple, depending on manufacturing location |
| Condition | Verify against the actual item/listing |
Rockwell’s product profile lists 2198-P070 at 25A output current, 70A peak output current, and 55 mm module width.
โ๏ธ Key Features
- Kinetix 5700 DC-bus power supply
- 25A continuous current rating
- 70A peak output current specification
- 195โ528V AC RMS three-phase input range
- Compact 55 mm module width
- Designed for shared DC-bus Kinetix 5700 servo systems
- Compatible with the modular Kinetix 5700 architecture
- Supports centralized power distribution to connected inverter modules
- Suitable for multi-axis motion-control applications
๐ญ Typical Applications
The 2198-P070 is commonly used where several Kinetix 5700 servo axes share a common DC-bus power architecture.
Typical applications include:
- Multi-axis servo machinery
- Packaging equipment
- Material handling systems
- Automated assembly lines
- Machine tools
- Robotics and coordinated motion systems
- Industrial production equipment
- High-performance motion-control cabinets

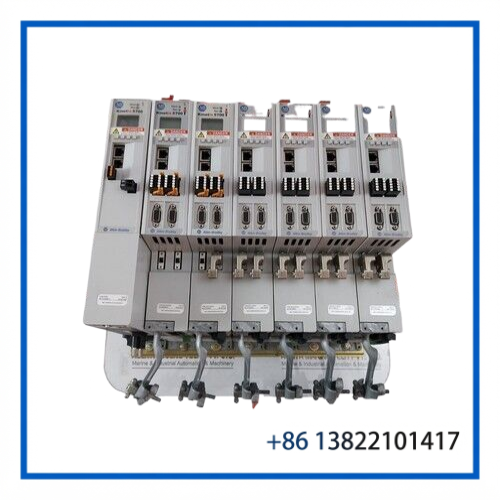

The Kinetix 5700 system is designed around modular power supplies and inverter modules, allowing the DC-bus supply to be combined with the required axis modules for a complete servo system.
๐ Installation & Configuration Notes
Before replacing a 2198-P070, check the existing Kinetix 5700 configuration rather than treating the unit as an independent power supply.
Important points include:
- Confirm the catalog number and Series on the product label.
- Verify the incoming three-phase voltage is within the specified 195โ528V AC RMS range.
- Confirm that the connected inverter modules are compatible with the Kinetix 5700 DC-bus architecture.
- Check the condition of the DC-bus connection and adjacent modules.
- Verify required circuit protection before energizing the system.
- Follow Rockwell Automation installation instructions for grounding, wiring, bus connections, and protection.
Rockwell’s documentation specifies dedicated protection requirements for the 2198-P070, including a 40A Bussmann LPJ-40SP fuse for UL/CSA applications and specific circuit-breaker options depending on the installation standard.
๐ Maintenance & Inspection
For a replacement unit, inspect the following before installation:
- Housing for cracks or impact damage
- Power terminals and connectors
- DC-bus contacts
- Grounding connection
- Cooling/ventilation openings
- Product label and Series identification
- Signs of overheating or discoloration
- Mounting hardware and mechanical locking features
After installation, verify the complete Kinetix 5700 system configuration and check for drive faults before returning the machine to production.
โ Frequently Asked Questions
Q: Is the 2198-P070 a complete servo drive?
A: No. It is a DC Bus Supply within the Kinetix 5700 modular servo system. The system also requires appropriate inverter/axis modules.
Q: What is the input voltage?
A: The specified three-phase input range is 195โ528V AC RMS.
Q: What is the current rating?
A: Rockwell lists 25A continuous output current and 70A peak output current for the 2198-P070.
Q: How wide is the module?
A: The 2198-P070 uses a 55 mm module width.
Q: Can it replace another Kinetix 5700 power supply directly?
A: Not automatically. Other Kinetix 5700 DC-bus supplies have different current ratings and physical widths. Confirm the original catalog number and system load before substitution.
๐ฆ Related Kinetix 5700 Models
The following are related Kinetix 5700 power-system catalog numbers, but they should not be treated as automatic drop-in replacements:
- 2198-P031 โ 10A DC Bus Supply
- 2198-P070 โ 25A DC Bus Supply
- 2198-P141 โ 47A DC Bus Supply
- 2198-P208 โ 69A DC Bus Supply
- 2198-RP088 โ Regenerative Bus Supply
- 2198-RP200 โ Regenerative Bus Supply
- 2198-RP263 โ Regenerative Bus Supply
- 2198-RP312 โ Regenerative Bus Supply
- 2198-KITCON-P070 โ 55 mm Bus Supply Connector Kit
- 2198-CAPMOD-DCBUS-IO โ DC-bus capacitor module
Rockwell’s current product documentation identifies the 2198-P031, P070, P141 and P208 as Kinetix 5700 DC-bus supply models, with different current capacities and module widths.
๐ Identification & Ordering Notes
When purchasing a used, surplus, or replacement 2198-P070, it is recommended to verify:
- Exact catalog number: 2198-P070
- Series / revision
- Product label
- Terminal and connector condition
- Housing condition
- Included accessories
- Any visible fault or alarm history
- Compatibility with the existing Kinetix 5700 system
The official Rockwell Automation page currently lists 2198-P070 as an active product and provides installation documentation, firmware, drawings, and certification information.
