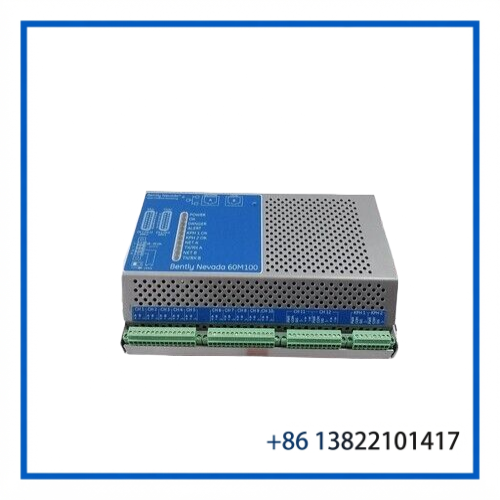

BENTLY NEVADA 60M100-00 | Asset Condition Monitoring System

🔧 Product Overview

The BENTLY NEVADA 60M100-00 is an Asset Condition Monitoring System designed for continuous monitoring of rotating machinery and other critical assets. It belongs to the Bently Nevada 60M100 condition monitoring platform and is associated with MPN 115M5669-01. The unit is identified as a 24 VDC nominal monitor with an 18–36 VDC input range.

The 60M100 is particularly associated with asset condition monitoring applications such as wind turbines, where vibration and speed information can be collected for machinery-condition assessment. Bently Nevada documentation lists the 60M100 as an Adapt condition monitor and specifies DIN-rail mounting.

📋 Technical Data

Parameter	Details
Brand	BENTLY NEVADA
Model	60M100-00
Product Name	Asset Condition Monitoring System
MPN / Label P	115M5669-01
Product Family	60M100
Product Type	Condition Monitoring System
Input Power	18–36 VDC
Nominal Voltage	24 VDC
Steady-State Current	600 mA @ 24 VDC
Inrush Current	2.7 A maximum
Inrush Duration	5 ms maximum
Mounting	DIN Rail
Dimensions	Approx. 225 × 150 × 55 mm
Weight	Approx. 1.4–1.51 kg
Assembly Location	USA
Application	Asset / Machinery Condition Monitoring
Condition	Depends on supplied unit

The published Bently Nevada specification gives dimensions of approximately 225 × 150 × 55 mm and a nominal weight of 1.4 kg. Current product records for the 115M5669-01 version list approximately 1.51 kg, so actual shipping weight may vary by configuration.



⚙️ Key Features

• Bently Nevada 60M100 condition monitoring platform
• Model 60M100-00
• MPN 115M5669-01
• 18–36 VDC input power
• 24 VDC nominal operation
• 600 mA steady-state consumption at 24 VDC
• DIN-rail mounting
• Compact industrial enclosure
• Designed for continuous asset condition monitoring
• Suitable for machinery maintenance and monitoring systems



🏭 Typical Applications

Wind Turbine Monitoring
The 60M100 is documented for wind-turbine condition monitoring, including monitoring of vibration and speed-related parameters.

Rotating Machinery
The system can be incorporated into machinery-monitoring architectures where condition data is required for maintenance decisions.

Gearbox Monitoring
Condition-monitoring applications can use vibration information to identify developing mechanical problems in gearboxes and other rotating equipment.

Industrial Asset Monitoring
The compact DIN-rail design makes the monitor suitable for integration into industrial control and monitoring cabinets.



🔍 Identification References

When checking compatibility, compare the following markings:

• 60M100-00
• 115M5669-01
• Bently Nevada
• 60M100
• 24 VDC nominal
• 18–36 VDC input

The 115M5669-01 label is specifically associated with the 60M100-00 monitor in current product records.



❓ Frequently Asked Questions

What is the BENTLY NEVADA 60M100-00?
It is an asset condition monitoring system from the Bently Nevada 60M100 platform.

What power supply does it require?
The specified input range is 18–36 VDC, with 24 VDC as the nominal operating voltage.

How much current does it consume?
The published specification lists approximately 600 mA at 24 VDC under steady-state conditions. Inrush current can reach 2.7 A for up to 5 ms.

How is the 60M100 installed?
The Bently Nevada specification identifies DIN-rail mounting.

What is 115M5669-01?
It is the label/MPN associated with the 60M100-00 monitor.

Is this a vibration monitoring device?
It is an asset condition monitoring system that can be used with vibration and speed measurements as part of a machinery monitoring application.

Can it directly replace another Bently Nevada monitor?
Not automatically. Verify the exact model, configuration, transducer requirements, software compatibility, and existing monitoring architecture before replacement.

What should I check before ordering?
Compare the 60M100-00 model number, 115M5669-01 label, power requirements, connectors, configuration, and physical mounting arrangement with the installed unit.



🔩 Related BENTLY NEVADA Models

For condition-monitoring and machinery-protection applications, related Bently Nevada product families include:

1. BENTLY NEVADA 60M100-00
2. BENTLY NEVADA 60M100 Condition Monitor
3. BENTLY NEVADA 3500/20
4. BENTLY NEVADA 3500/22
5. BENTLY NEVADA 3500/25
6. BENTLY NEVADA 3500/32
7. BENTLY NEVADA 3500/42
8. BENTLY NEVADA 3500/50
9. BENTLY NEVADA 3500/60
10. BENTLY NEVADA 3500/92

These are related Bently Nevada monitoring products, but they are not confirmed direct substitutes for the 60M100-00. Compatibility should be checked against the complete monitoring-system configuration.



📦 Compatibility & Ordering Notes

Before installation, verify:

• Model: 60M100-00
• MPN: 115M5669-01
• Input voltage: 18–36 VDC
• Nominal voltage: 24 VDC
• Connector configuration
• Transducer requirements
• Software/firmware compatibility
• DIN-rail mounting arrangement
• Existing monitoring-system configuration

For replacement projects, matching the complete model and MPN is the safest approach rather than selecting a unit only by appearance or product family.
