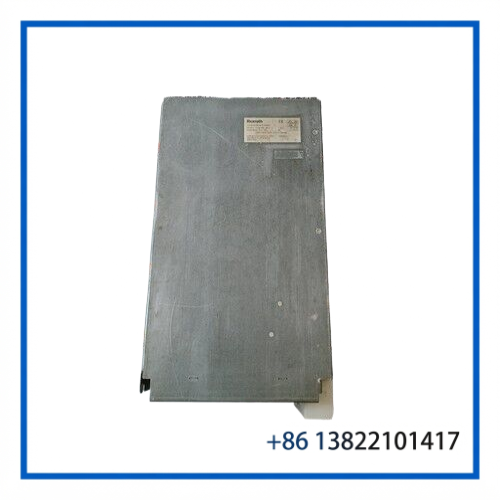

BOSCH REXROTH HCS03.1E-W0150-A-05-NPBV | IndraDrive C Compact Converter

Product Overview

The Bosch Rexroth HCS03.1E-W0150-A-05-NPBV is an IndraDrive C HCS03 compact converter designed for single-axis drive applications. The HCS03 family converts the incoming three-phase supply into a controlled AC output for operating servo motors, with a compact package that includes the required mains connection components.

This model belongs to the HCS03.1E-W0150 class, which has a 150 A device peak current and operates from a 400–500 V supply. The available product records identify R911305061 with the HCS03.1E-W0150 family and list a 42,000 A SCCR for the configuration.

For replacement work, the complete type code should be matched rather than ordering only by the basic HCS03.1E-W0150 designation. The suffix -A-05-NPBV identifies the specific configuration.

Key Features

Bosch Rexroth IndraDrive C HCS03 series
Compact converter for single-axis applications
Model: HCS03.1E-W0150-A-05-NPBV
Material / part reference: R911305061
3-phase AC input
400–500 V AC supply range
106 A listed input current
3 × AC 0–480 V output
95 A listed output current
150 A device peak current for the HCS03.1E-W0150 class
42,000 A short-circuit current rating
Internal air cooling with integrated blower
IndraDrive C architecture

Technical Datasheet

Parameter	Specification
Brand	Bosch Rexroth
Model	HCS03.1E-W0150-A-05-NPBV
Series	IndraDrive C / HCS03
Product Type	Compact Converter
Material Number	R911305061
Design Version	HCS03.1E
Device Size	W0150
Configuration	A-05-NPBV
Input	3 × AC 400–500 V
Input Current	106 A
Input Frequency	50–60 Hz
Output	3 × AC 0–480 V
Output Current	95 A
Maximum Device Current	150 A peak
Maximum Output Frequency	Up to 1600 Hz, depending on operating configuration
SCCR	42,000 A
Cooling	Internal air cooling / integrated blower
Protection Rating	IP20
Width	Approx. 225 mm
Height	Approx. 315 mm
Depth	Approx. 440 mm
Weight	Approx. 19 kg
Application	Servo / single-axis drive systems
Country of Origin	Germany, according to available product records
Condition	Verify actual item condition

The published HCS03.1E-W0150 family data gives a 150 A device peak current and 400–500 V connection voltage. A corresponding HCS03.1E-W0150 product record lists 225 × 315 × 440 mm and approximately 19.14 kg.

Important Specification Note

⚠️ 42000 A does not mean the converter outputs 42,000 A.

The 42,000 A figure refers to the SCCR — Short-Circuit Current Rating. The electrical operating values are substantially different:

Input: 3 × AC 400–500 V, 106 A
Output: 3 × AC 0–480 V, 95 A
Device peak current: 150 A
SCCR: 42,000 A

This distinction is important when preparing an eBay title or technical datasheet because using “42000A Converter” without explaining SCCR can be misleading.

Typical Applications

⚙️ Servo Motor Control

The HCS03 converter is designed to provide controlled AC power for servo motor applications within the IndraDrive architecture.

🏭 Machine Automation

Typical applications include automated production equipment, machine tools, handling systems, packaging equipment, and other motion-control machinery.

🔧 Replacement & Maintenance

The unit can serve as a replacement converter for existing Rexroth IndraDrive systems where the original HCS03 hardware requires replacement.

📦 Industrial Spare Parts

The compact converter format makes it suitable for maintenance inventories supporting older or continuously operating Rexroth motion-control systems.

Installation & Configuration Notes

Before replacing an existing converter, check the complete type code:

HCS03.1E-W0150
A-05-NPBV suffix
R911305061 material number
Input voltage
Motor/load current requirements
Control unit compatibility
Firmware/software configuration
Motor and encoder feedback configuration
DC-bus and mains wiring
Cooling and cabinet ventilation

The HCS03 converter is part of a larger IndraDrive system, so replacing the power converter alone does not guarantee compatibility with every control section or motor configuration.

Maintenance Recommendations

🔧 Keep the cooling-air path free of dust and debris.

🔧 Inspect the integrated blower and ventilation openings during preventive maintenance.

🔧 Check DC-bus and power terminals for signs of overheating.

🔧 Verify the converter type code before replacing the unit.

🔧 Record motor, feedback, and control-unit settings before removing the existing drive.

🔧 After replacement, perform a controlled commissioning procedure before returning the machine to production.

FAQ

Q1: What is HCS03.1E-W0150-A-05-NPBV?
It is a Bosch Rexroth IndraDrive C HCS03 compact converter for servo and motion-control applications.

Q2: What is the input voltage?
The listed input is 3 × AC 400–500 V at 50–60 Hz.

Q3: What is the output current?
The commonly published configuration data lists 95 A output current.

Q4: What does 42000 A mean?
It is the SCCR, or short-circuit current rating. It is not the normal output-current rating.

Q5: What is the maximum current of the HCS03.1E-W0150 class?
The HCS03.1E-W0150 family is specified with a 150 A device peak current.

Q6: Is this a servo drive?
It is a compact converter within the IndraDrive C servo drive system. The complete drive system may include additional control and feedback components.

Q7: Does the suffix NPBV matter?
Yes. The suffix identifies the specific converter configuration. For replacement purposes, the complete type code should be matched.

Q8: What is the approximate size?
A corresponding HCS03.1E-W0150 specification lists approximately 225 × 315 × 440 mm with a weight of about 19.14 kg.
